Phoenix Contact 3273224
MPN3273224
Active

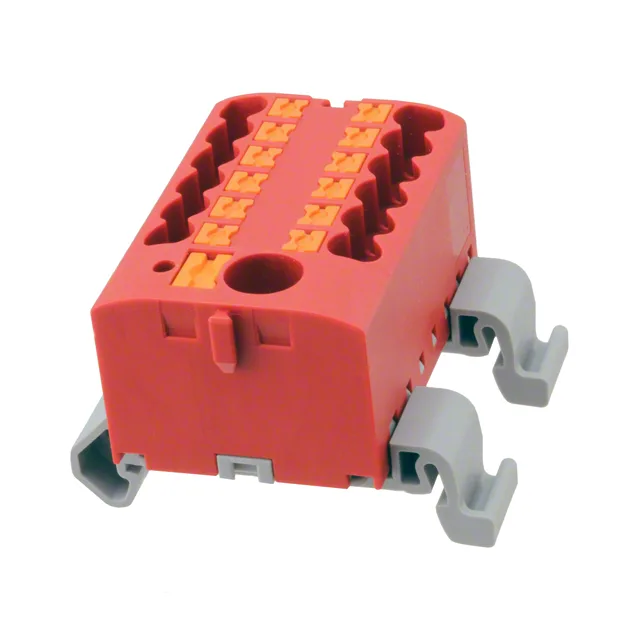

DISTRIBUTION BLOCK RED
$5.38Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesCLIPLINE PTFIX
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Middle |
| Series | CLIPLINE PTFIX |
| Mounting | DIN Rail |
| Voltage - UL | 600 V |
| Voltage - IEC | 500 V |
| Current - UL | 5 A |
| Current - IEC | 24 A |
| Terminal - width | 40.6mm |
| Wire gauge or range - AWG | 8-20 AWG |
| Height | 1.508\" (38.30mm) |
| Housing color | Red |
| Material - insulation | Polyamide (PA), Nylon |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Length | 1.799\" (45.70mm) |
| Package | Bulk |
| Features | Block of 6 |
| Number of levels | 1 |
| Stripping length | 12mm |
| Termination style | Push In, Spring |
| Positions | 13 |
