Phoenix Contact 3273406
MPN3273406
Active

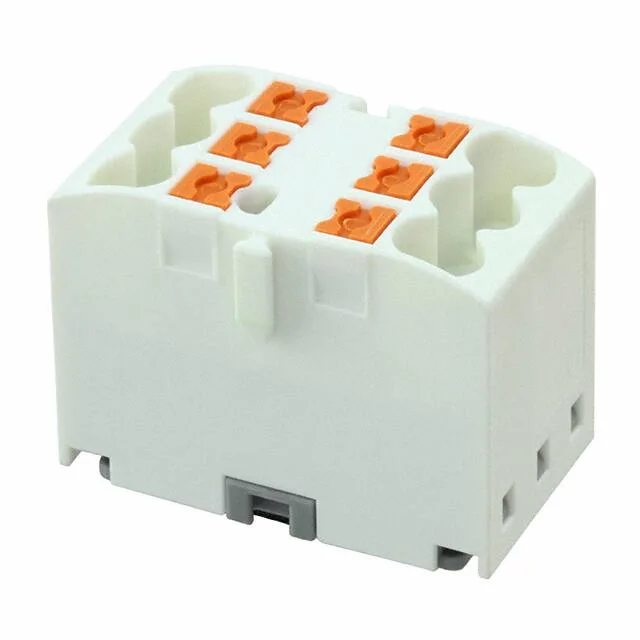

DISTRIBUTION BLOCK WHITE
$2.98Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesCLIPLINE PTFIX
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Middle |
| Series | CLIPLINE PTFIX |
| Mounting | Direct Mount |
| Voltage - UL | 600 V |
| Voltage - IEC | 500 V |
| Current - UL | 5 A |
| Current - IEC | 24 A |
| Terminal - width | 15.6mm |
| Wire gauge or range - AWG | 12-26 AWG |
| Wire gauge or range - mm2 | 0.14-4mm² |
| Height | 0.835\" (21.20mm) |
| Housing color | White |
All specifications
| Parameter | Value |
|---|---|
| Material - insulation | Polyamide (PA), Nylon |
| Material flammability rating | UL94 V-0 |
| Length | 1.110\" (28.19mm) |
| Package | Bulk |
| Features | Block of 3 |
| Number of levels | 1 |
| Stripping length | 10mm |
| Termination style | Push In, Spring |
| Positions | 6 |
