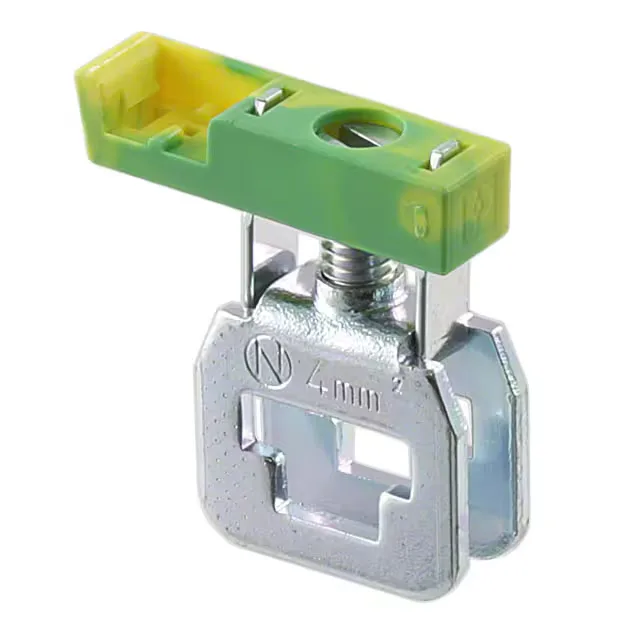

Phoenix Contact 421029
MPN421029
Active
TERM BLK BUS BAR 1POS 7.0MM GRN
$2.04Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesCLIPLINE AKG
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Bus Bar - Central |
| Series | CLIPLINE AKG |
| Mounting | Bus Bar |
| Voltage - UL | 300 V |
| Current - UL | 30 A |
| Current - IEC | 41 A |
| Terminal - width | 7.0mm |
| Wire gauge or range - AWG | 10-20 AWG |
| Wire gauge or range - mm2 | 0.5-6mm² |
| Housing color | Green, Yellow |
| Material - insulation | Polyamide (PA), Nylon |
| Material flammability rating | UL94 V-2 |
| Length | 0.925\" (23.50mm) |
| Package | Bulk |
| Number of levels | 1 |
| Stripping length | 16mm |
| Termination style | Screw |
| Positions | 1 |
