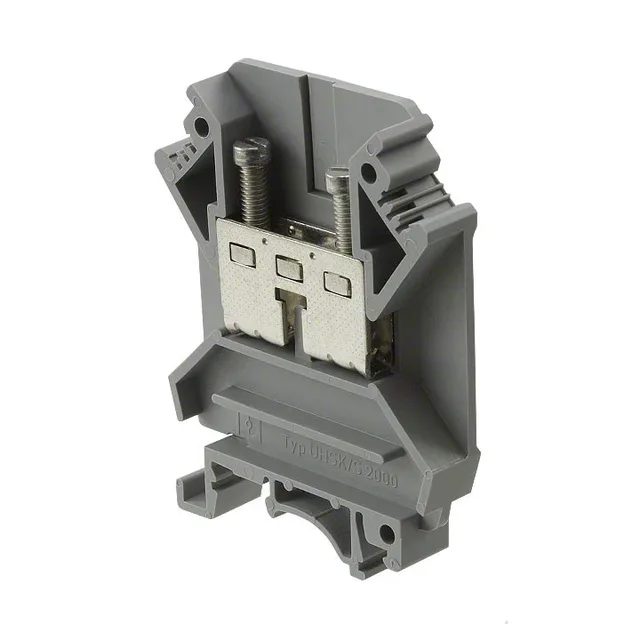

Phoenix Contact 704076
MPN704076
Active
CONN TERM BLK FEED THRU 8-26 AWG
$30.18Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesCLIPLINE UHSK
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Feed Through |
| Series | CLIPLINE UHSK |
| Voltage - UL | 1000V |
| Voltage - IEC | 2000V |
| Current - UL | 50 A |
| Current - IEC | 41 A |
| Terminal - width | 10.2mm |
| Wire gauge or range - AWG | 8-26 AWG |
| Wire gauge or range - mm2 | 0.5-10mm² |
| Color | Gray |
| Material - insulation | Polyamide (PA), Nylon |
| Material flammability rating | UL94 V-2 |
| Package | Bulk |
| Features | Explosion Proof, Harsh Environment |
| Number of levels | 1 |
| Stripping length | 10mm |
| Termination style | Screw |
| Positions | 2 |
