Pulse Electronics J0G0 Series

2 variants · Pulse Electronics

About the Pulse Electronics J0G0 Series

The Pulse Electronics J0G0 Series series groups 2 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common connector type of RJ45, contact finish of Gold and contact finish thickness of 15.0µin (0.38µm). Variants differ by applications and number of cores per jack, so you can match the exact applications your application requires using the selection guide below. All listed Pulse Electronics J0G0 Series part numbers are active and orderable.

Select a variant by

Applications
10/100 Base-TX, AutoMDIX · 10/100/1000 Base-T, AutoMDIX
Number of cores per jack
4 · 8

Shared specifications

Connector type
RJ45
Contact finish
Gold
Contact finish thickness
15.0µin (0.38µm)
Contact material
Phosphor Bronze
Features
Board Guide
Height above board
0.445\" (11.30mm)
Housing material
Thermoplastic
LED color
Green, Orange - Yellow
Mounting
Through Hole
Number of ports
1
Number of rows
1
Operating temperature
0°C ~ 70°C

Variant comparison

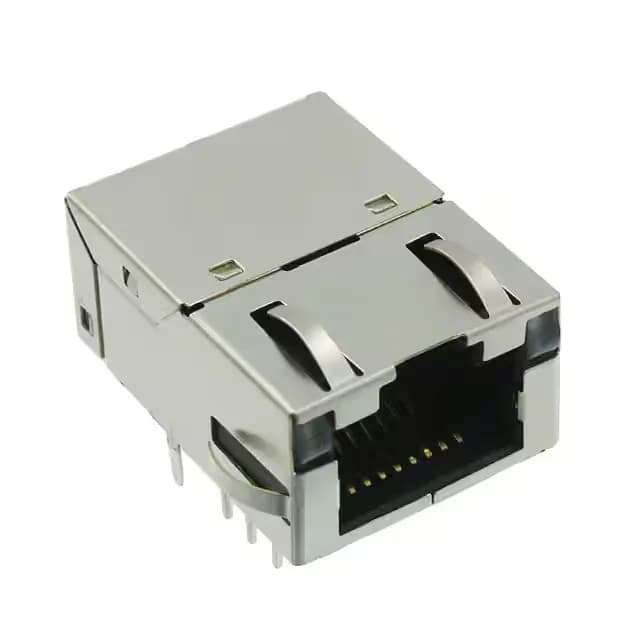

ParameterJ0G-0001NLJ0G-0007NL
Applications10/100/1000 Base-T, AutoMDIX10/100 Base-TX, AutoMDIX
Number of cores per jack84

Request a quote on any Pulse Electronics J0G0 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.

About Pulse Electronics J0G0 Series

What buyers ask when they search Pulse Electronics J0G0 Series Connector Pitch Positions Plating Specifications.

Common questions

  • What is the Pulse Electronics J0G0 Series used for?
  • How do I select the correct part number within the Pulse Electronics J0G0 Series series?
  • What are the key technical specifications for the Pulse Electronics J0G0 Series?
  • Where can I find the Pulse Electronics J0G0 Series datasheet and order from authorized distributors?

All variants
