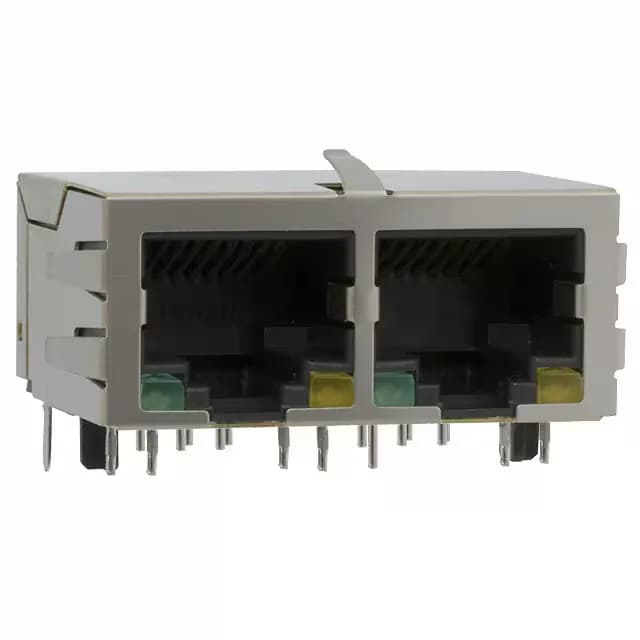

J8064D628ANL
Pulse Electronics
PULSEJACK™ J8TrayThrough Hole
Ref. price$14.84
Lead time on requestGet quote
Pulse Electronics J806 Series
2 variants · Pulse Electronics
About the Pulse Electronics J806 Series
The Pulse Electronics J806 Series series groups 2 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common applications of 10/100 Base-TX, AutoMDIX, connector type of RJ45 and contact finish of Gold. Variants differ by LED color, so you can match the exact LED color your application requires using the selection guide below. All listed Pulse Electronics J806 Series part numbers are active and orderable.
Select a variant by
- LED color
- Does Not Contain LED · Green - Yellow
Shared specifications
- Applications
- 10/100 Base-TX, AutoMDIX
- Connector type
- RJ45
- Contact finish
- Gold
- Contact finish thickness
- 30.0µin (0.76µm)
- Contact material
- Phosphor Bronze
- Features
- Board Guide
- Height above board
- 0.536\" (13.61mm)
- Housing material
- Thermoplastic
- Mounting
- Through Hole
- Number of cores per jack
- 4
- Number of ports
- 2
- Number of rows
- 1
Variant comparison
| Parameter | J8064D628ANL | J8064E62NL |
|---|---|---|
| LED color | Green - Yellow | Does Not Contain LED |
Request a quote on any Pulse Electronics J806 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
