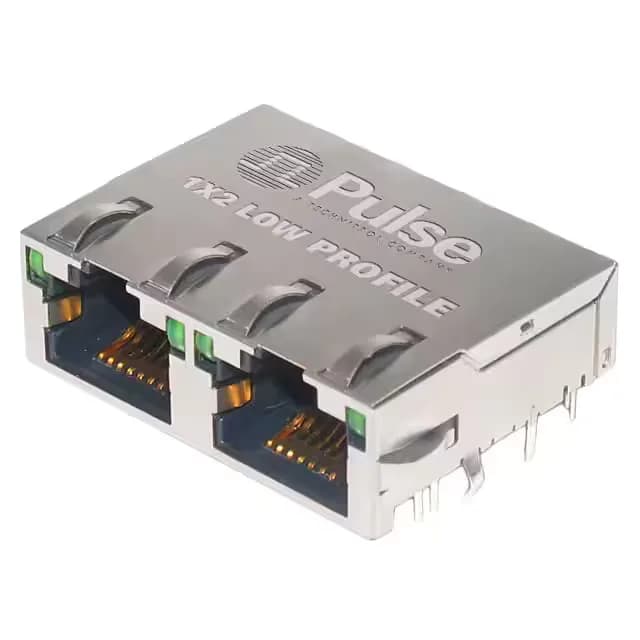

Pulse Electronics JGL0 Series

2 variants · Pulse Electronics

About the Pulse Electronics JGL0 Series

The Pulse Electronics JGL0 Series series groups 2 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common applications of 10/100/1000 Base-T, AutoMDIX, connector type of RJ45 and contact finish of Gold. Variants differ by LED color and package, so you can match the exact LED color your application requires using the selection guide below. All listed Pulse Electronics JGL0 Series part numbers are active and orderable.

Select a variant by

LED color
Green - Green · Green - Green, Amber
Package
Tray · Tube

Shared specifications

Applications
10/100/1000 Base-T, AutoMDIX
Connector type
RJ45
Contact finish
Gold
Contact finish thickness
50.0µin (1.27µm)
Contact material
Phosphor Bronze
Features
Board Guide
Height above board
0.376\" (9.55mm)
Housing material
Thermoplastic
Mounting
Board Edge, Through Hole
Number of cores per jack
8
Number of ports
2
Number of rows
1

Variant comparison

ParameterJGL-0001NLJGL-0004NL
LED colorGreen - GreenGreen - Green, Amber
PackageTrayTube

Request a quote on any Pulse Electronics JGL0 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.

About Pulse Electronics JGL0 Series

What buyers ask when they search Pulse Electronics JGL0 Series Connector Pitch Positions Plating Specifications.

Common questions

  • What is the Pulse Electronics JGL0 Series used for?
  • How do I select the correct part number within the Pulse Electronics JGL0 Series series?
  • What are the key technical specifications for the Pulse Electronics JGL0 Series?
  • Where can I find the Pulse Electronics JGL0 Series datasheet and order from authorized distributors?
