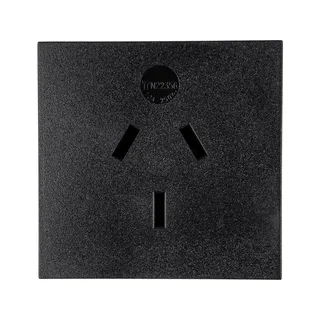

741W-A/01
Qualtek
Rectangular - 45.00mm x 42.50mmScrewCover
Ref. price$6.43
Lead time on requestGet quote ›
Qualtek 741W Series
13 variants · Qualtek
About the Qualtek 741W Series
The Qualtek 741W Series series groups 13 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common connector type of Receptacle, Female Sockets, mounting type of Panel Mount, Snap-In and package of Bulk. Variants differ by approval agency, panel cutout and panel thickness, so you can match the exact approval agency your application requires using the selection guide below. All listed Qualtek 741W Series part numbers are active and orderable.
Select a variant by
- Approval agency
- CCC · SAA · SEV · TUV
- Panel cutout
- Rectangular - 40.50mm x 21.70mm · Rectangular - 45.00mm x 42.00mm · Rectangular - 45.00mm x 42.50mm · Square - 40.50mm x 40.50mm · Variable Size
- Panel thickness
- 0.031\" ~ 0.098\" (0.80mm ~ 2.50mm) · 0.039\" ~ 0.078\" (1.00mm ~ 2.00mm) · 0.039\" ~ 0.098\" (1.00mm ~ 2.50mm) · 0.138\" (3.50mm) · 0.157\" (4.00mm)
- Positions
- 2 · 3
- Termination
- Quick Connect - 0.189\" (4.8mm) · Screw
- Features
- Cover · Cover, Shuttered
Shared specifications
- Connector type
- Receptacle, Female Sockets
- Mounting type
- Panel Mount, Snap-In
- Package
- Bulk
Variant comparison
| Parameter | 741W-A/01 | 741W-A/02 | 741W-C/01 | 741W-C/02 | 741W-D/01 | 741W-D/02 |
|---|---|---|---|---|---|---|
| Approval agency | TUV | TUV | TUV | TUV | SEV | SEV |
| Panel cutout | Rectangular - 45.00mm x 42.50mm | Rectangular - 45.00mm x 42.50mm | Rectangular - 45.00mm x 42.00mm | Rectangular - 45.00mm x 42.00mm | Rectangular - 45.00mm x 42.50mm | Rectangular - 45.00mm x 42.50mm |
| Panel thickness | 0.157\" (4.00mm) | 0.157\" (4.00mm) | 0.138\" (3.50mm) | 0.138\" (3.50mm) | 0.157\" (4.00mm) | 0.157\" (4.00mm) |
| Positions | 2 | 2 | 3 | 3 | 3 | 3 |
| Termination | Screw | Screw | Screw | Screw | Screw | Screw |
| Features | Cover | Cover | Cover, Shuttered | Cover, Shuttered | Cover, Shuttered | Cover, Shuttered |
Request a quote on any Qualtek 741W Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the Qualtek 741W Series variants differ?
- Qualtek 741W Series part numbers differ by approval agency, panel cutout, panel thickness and positions. Use the selection guide above to pick by approval agency.
- How many Qualtek 741W Series part numbers are listed?
- 13 Qualtek 741W Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for Qualtek 741W Series?
- Request a quote (RFQ) for any Qualtek 741W Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
