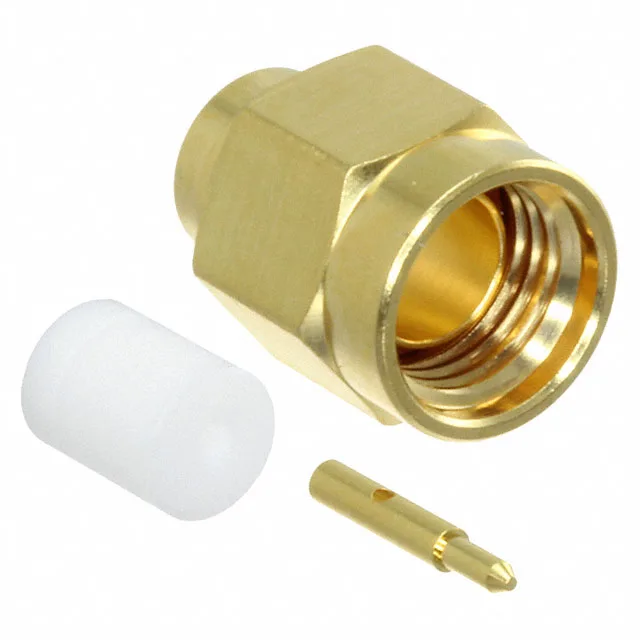

32S102-271L5
Rosenberger
BulkFree Hanging (In-Line)Plug, Male Pin
Ref. price$8.4100
Lead time on requestGet quote
Rosenberger 32S102 Series
2 variants · Rosenberger
About the Rosenberger 32S102 Series
The Rosenberger 32S102 Series series groups 2 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common body finish of Gold, body material of Beryllium Copper and center contact material of Brass. Variants differ by cable group, so you can match the exact cable group your application requires using the selection guide below. All listed Rosenberger 32S102 Series part numbers are active and orderable.
Select a variant by
- Cable group
- RG-402 (.141\" Semi Rigid) · RG-405 (.085\" Semi Rigid)
Shared specifications
- Body finish
- Gold
- Body material
- Beryllium Copper
- Center contact material
- Brass
- Center contact plating
- Gold
- Connector type
- Plug, Male Pin
- Contact termination
- Solder
- Dielectric material
- Polytetrafluoroethylene (PTFE)
- Fastening type
- Threaded
- Features
- -
- Frequency - max
- 18 GHz
- Housing color
- Gold
- Impedance
- 50 Ohms
Variant comparison
| Parameter | 32S102-271L5 | 32S102-272L5 |
|---|---|---|
| Cable group | RG-405 (.085\" Semi Rigid) | RG-402 (.141\" Semi Rigid) |
Request a quote on any Rosenberger 32S102 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
