QSE-014-01-F-D-DP-A-TR
Samtec Inc.
28Tape & Reel (TR) Cut Tape (CT)Board Guide, Ground Bus (Plane)
Ref. price$9.0600
Lead time on requestGet quote ›
Samtec Inc. QSE0 Series
8 variants · Samtec Inc.
About the Samtec Inc. QSE0 Series
The Samtec Inc. QSE0 Series series groups 8 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common contact finish of Gold, height above board of 0.128\" (3.25mm) and mated stacking heights of 5mm, 8mm, 11mm, 14mm, 16mm, 19mm, 25mm. Variants differ by connector type, contact finish thickness and features, so you can match the exact connector type your application requires using the selection guide below. All listed Samtec Inc. QSE0 Series part numbers are active and orderable.
Select a variant by
- Connector type
- Differential Pair Array, Female · Receptacle, Center Strip Contacts
- Contact finish thickness
- 3.00µin (0.076µm) · 10.0µin (0.25µm) · 50.0µin (1.27µm)
- Features
- Board Guide, Ground Bus (Plane) · Board Guide, Ground Bus (Plane), Pick and Place
- Package
- Tape & Reel (TR) · Tape & Reel (TR) Cut Tape (CT) · Tray
- Positions
- 28 · 40 · 80 · 84
Shared specifications
- Contact finish
- Gold
- Height above board
- 0.128\" (3.25mm)
- Mated stacking heights
- 5mm, 8mm, 11mm, 14mm, 16mm, 19mm, 25mm
- Mounting type
- Surface Mount
- Pitch
- 0.031\" (0.80mm)
- Rows
- 2
Variant comparison

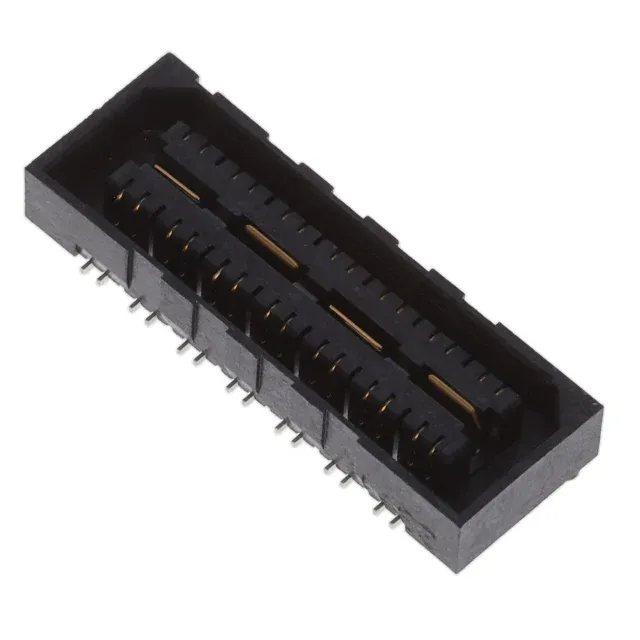

| Parameter | QSE-014-01-F-D-DP-A-TR | QSE-014-01-L-D-DP-A-K | QSE-020-01-C-D-A | QSE-020-01-L-D-A-TR | QSE-040-01-F-D-A | QSE-040-01-F-D-A-K-TR |
|---|---|---|---|---|---|---|
| Connector type | Differential Pair Array, Female | Differential Pair Array, Female | Receptacle, Center Strip Contacts | Receptacle, Center Strip Contacts | Receptacle, Center Strip Contacts | Receptacle, Center Strip Contacts |
| Contact finish thickness | 3.00µin (0.076µm) | 10.0µin (0.25µm) | 50.0µin (1.27µm) | 10.0µin (0.25µm) | 3.00µin (0.076µm) | 3.00µin (0.076µm) |
| Features | Board Guide, Ground Bus (Plane) | Board Guide, Ground Bus (Plane), Pick and Place | Board Guide, Ground Bus (Plane) | Board Guide, Ground Bus (Plane) | Board Guide, Ground Bus (Plane) | Board Guide, Ground Bus (Plane), Pick and Place |
| Package | Tape & Reel (TR) Cut Tape (CT) | Tray | Tray | Tape & Reel (TR) Cut Tape (CT) | Tray | Tape & Reel (TR) Cut Tape (CT) |
| Positions | 28 | 28 | 40 | 40 | 80 | 80 |
Request a quote on any Samtec Inc. QSE0 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the Samtec Inc. QSE0 Series variants differ?
- Samtec Inc. QSE0 Series part numbers differ by connector type, contact finish thickness, features and package. Use the selection guide above to pick by connector type.
- How many Samtec Inc. QSE0 Series part numbers are listed?
- 8 Samtec Inc. QSE0 Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for Samtec Inc. QSE0 Series?
- Request a quote (RFQ) for any Samtec Inc. QSE0 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
