SFSDT-20-30-G-03.25-D-NUX
Samtec Inc.

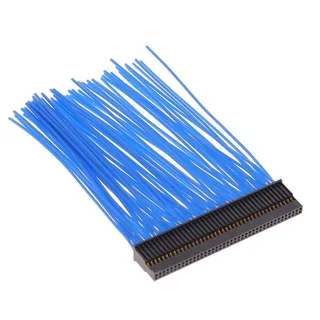

40Blue, IndividualTiger Eye™ SFSDT
Ref. price$18.54
Lead time on requestGet quote ›
Samtec Inc. SFSD Series
75 variants · Samtec Inc.
About the Samtec Inc. SFSD Series
The Samtec Inc. SFSD Series series groups 75 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common cable termination of Crimp, contact finish of Gold and package of Bulk. Variants differ by color, connector type and contact finish thickness, so you can match the exact color your application requires using the selection guide below.
Select a variant by
- Color
- Black, Individual · Multiple, Individual
- Connector type
- Socket to Individual Wire Leads · Socket to Socket
- Contact finish thickness
- 10.0µin (0.25µm) · 30.0µin (0.76µm) · Flash
- Length
- 0.250' (76.20mm, 3.00\") · 0.271' (82.55mm, 3.25\") · 0.417' (127.00mm, 5.00\") · 0.500' (152.40mm, 6.00\") · 0.667' (203.20mm, 8.00\") · 0.750' (228.60mm, 9.00\") · 0.833' (254.00mm, 10.00\") · 1.00' (304.80mm) · 1.17' (355.60mm)
- Positions
- 8 · 10 · 14 · 20
- Features
- Flange, Polarizing Key · Latch Lock, Polarizing Key · Polarizing Key
Shared specifications
- Cable termination
- Crimp
- Contact finish
- Gold
- Package
- Bulk
- Pitch - connector
- 0.050\" (1.27mm)
- Rows
- 2
- Shielding
- Unshielded
Variant comparison
| Parameter | SFSD-04-28-G-03.25-D-NDX | SFSD-05-28C-G-09.00-S | SFSD-05-28-F-03.25-D-NDX | SFSD-05-28-F-08.00-DS-NUS | SFSD-05-28-G-06.00-S | SFSD-05-28-G-12.00-S |
|---|---|---|---|---|---|---|
| Color | Black, Individual | Multiple, Individual | Black, Individual | Black, Individual | Black, Individual | Black, Individual |
| Connector type | Socket to Socket | Socket to Individual Wire Leads | Socket to Socket | Socket to Socket | Socket to Individual Wire Leads | Socket to Individual Wire Leads |
| Contact finish thickness | 10.0µin (0.25µm) | 10.0µin (0.25µm) | Flash | Flash | 10.0µin (0.25µm) | 10.0µin (0.25µm) |
| Length | 0.271' (82.55mm, 3.25\") | 0.750' (228.60mm, 9.00\") | 0.271' (82.55mm, 3.25\") | 0.667' (203.20mm, 8.00\") | 0.500' (152.40mm, 6.00\") | 1.00' (304.80mm) |
| Positions | 8 | 10 | 10 | 10 | 10 | 10 |
| Features | Polarizing Key | Polarizing Key | Polarizing Key | Flange, Polarizing Key | Polarizing Key | Polarizing Key |
Request a quote on any Samtec Inc. SFSD Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the Samtec Inc. SFSD Series variants differ?
- Samtec Inc. SFSD Series part numbers differ by color, connector type, contact finish thickness and length. Use the selection guide above to pick by color.
- How many Samtec Inc. SFSD Series part numbers are listed?
- 75 Samtec Inc. SFSD Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for Samtec Inc. SFSD Series?
- Request a quote (RFQ) for any Samtec Inc. SFSD Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
