TCSD-10-01
Samtec Inc.
20Feed ThroughBlack
Ref. price$8.29
Lead time on requestGet quote ›

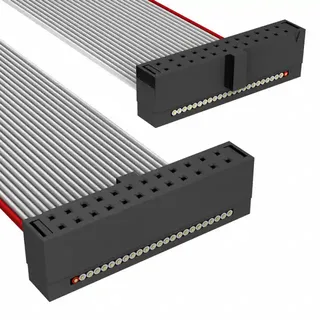

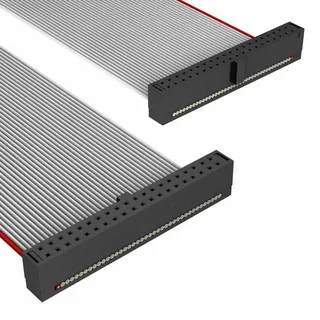

Samtec Inc. TCSD1 Series
26 variants · Samtec Inc.
About the Samtec Inc. TCSD1 Series
The Samtec Inc. TCSD1 Series series groups 26 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common cable termination of IDC, contact finish of Gold and rows of 2. Variants differ by color, connector type and contact finish thickness, so you can match the exact color your application requires using the selection guide below. All listed Samtec Inc. TCSD1 Series part numbers are active and orderable.
Select a variant by
- Color
- Black · Gray, Ribbon
- Connector type
- Receptacle · Socket to Socket · Socket to Socket, Reversed
- Contact finish thickness
- 30.0µin (0.76µm) · Flash
- Features
- Feed Through · Feed Through, Polarizing Key · Polarizing Key
- Package
- Bulk · Tube
- Positions
- 20 · 24
- Length
- 0.167' (50.80mm, 2.00\") · 0.250' (76.20mm, 3.00\") · 0.333' (101.60mm, 4.00\") · 0.500' (152.40mm, 6.00\") · 0.667' (203.20mm, 8.00\") · 1.00' (304.80mm)
Shared specifications
- Cable termination
- IDC
- Contact finish
- Gold
- Rows
- 2
Variant comparison
| Parameter | TCSD-10-01 | TCSD-10-D-02.00-01-F-N-R | TCSD-10-D-02.00-01-N | TCSD-10-D-03.00-01-N | TCSD-10-D-04.00-01-N | TCSD-10-D-06.00-01-N |
|---|---|---|---|---|---|---|
| Color | Black | Gray, Ribbon | Gray, Ribbon | Gray, Ribbon | Gray, Ribbon | Gray, Ribbon |
| Connector type | Receptacle | Socket to Socket, Reversed | Socket to Socket | Socket to Socket | Socket to Socket | Socket to Socket |
| Contact finish thickness | 30.0µin (0.76µm) | Flash | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) |
| Features | Feed Through | Polarizing Key | Polarizing Key | Polarizing Key | Polarizing Key | Polarizing Key |
| Package | Tube | Bulk | Bulk | Bulk | Bulk | Bulk |
| Positions | 20 | 20 | 20 | 20 | 20 | 20 |
| Length | — | 0.167' (50.80mm, 2.00\") | 0.167' (50.80mm, 2.00\") | 0.250' (76.20mm, 3.00\") | 0.333' (101.60mm, 4.00\") | 0.500' (152.40mm, 6.00\") |
Request a quote on any Samtec Inc. TCSD1 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the Samtec Inc. TCSD1 Series variants differ?
- Samtec Inc. TCSD1 Series part numbers differ by color, connector type, contact finish thickness and features. Use the selection guide above to pick by color.
- How many Samtec Inc. TCSD1 Series part numbers are listed?
- 26 Samtec Inc. TCSD1 Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for Samtec Inc. TCSD1 Series?
- Request a quote (RFQ) for any Samtec Inc. TCSD1 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
