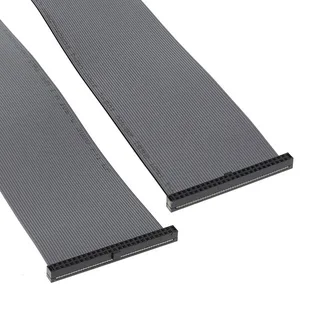

TCSD-22-D-02.35-01-N
Samtec Inc.
0.196' (59.69mm, 2.35\")Polarizing KeyGray, Ribbon
Ref. price$19.34
Lead time on requestGet quote ›
Samtec Inc. TCSD22D Series
12 variants · Samtec Inc.
About the Samtec Inc. TCSD22D Series
The Samtec Inc. TCSD22D Series series groups 12 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common cable termination of IDC, color of Gray, Ribbon and contact finish of Gold. Variants differ by connector type, contact finish thickness and length, so you can match the exact connector type your application requires using the selection guide below. All listed Samtec Inc. TCSD22D Series part numbers are active and orderable.
Select a variant by
- Connector type
- Socket to Socket · Socket to Socket, Reversed
- Contact finish thickness
- 30.0µin (0.76µm) · Flash
- Length
- 0.196' (59.69mm, 2.35\") · 0.213' (65.00mm, 2.56\") · 0.300' (91.44mm, 3.60\") · 0.333' (101.60mm, 4.00\") · 0.437' (133.35mm, 5.25\") · 0.500' (152.40mm, 6.00\") · 0.667' (203.20mm, 8.00\") · 1.08' (330.00mm) · 1.25' (381.00mm) · 1.33' (406.40mm) · 1.83' (558.80mm) · 3.00' (914.40mm)
- Features
- Polarizing Key · Polarizing Key, Reverse Wiring · Polarizing Key, Strain Relief
Shared specifications
- Cable termination
- IDC
- Color
- Gray, Ribbon
- Contact finish
- Gold
- Package
- Bulk
- Pitch - cable
- 0.039\" (1.00mm)
- Pitch - connector
- 0.079\" (2.00mm)
- Positions
- 44
- Rows
- 2
- Shielding
- Unshielded
Variant comparison
| Parameter | TCSD-22-D-02.35-01-N | TCSD-22-D-02.56-01-N-RW | TCSD-22-D-03.60-01-N | TCSD-22-D-04.00-01-N-P20-R | TCSD-22-D-05.25-01-R | TCSD-22-D-06.00-01-D02 |
|---|---|---|---|---|---|---|
| Connector type | Socket to Socket | Socket to Socket | Socket to Socket | Socket to Socket, Reversed | Socket to Socket, Reversed | Socket to Socket |
| Contact finish thickness | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) |
| Length | 0.196' (59.69mm, 2.35\") | 0.213' (65.00mm, 2.56\") | 0.300' (91.44mm, 3.60\") | 0.333' (101.60mm, 4.00\") | 0.437' (133.35mm, 5.25\") | 0.500' (152.40mm, 6.00\") |
| Features | Polarizing Key | Polarizing Key, Reverse Wiring | Polarizing Key | Polarizing Key | — | — |
Request a quote on any Samtec Inc. TCSD22D Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the Samtec Inc. TCSD22D Series variants differ?
- Samtec Inc. TCSD22D Series part numbers differ by connector type, contact finish thickness, length and features. Use the selection guide above to pick by connector type.
- How many Samtec Inc. TCSD22D Series part numbers are listed?
- 12 Samtec Inc. TCSD22D Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for Samtec Inc. TCSD22D Series?
- Request a quote (RFQ) for any Samtec Inc. TCSD22D Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
