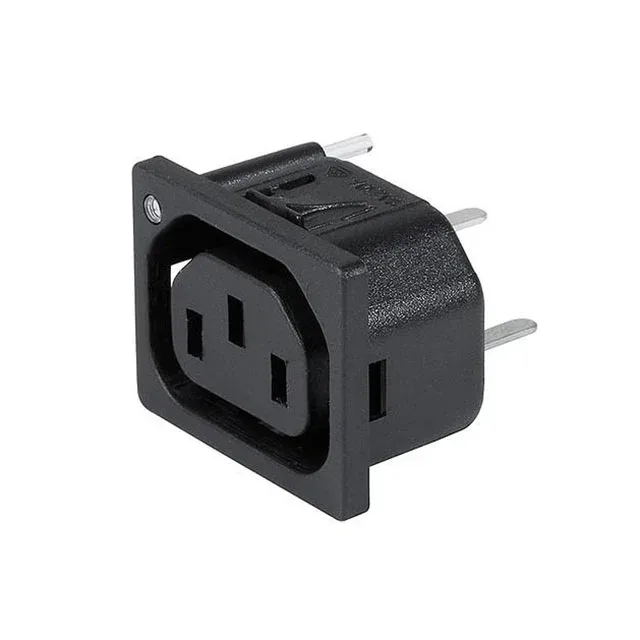

SCHURTER Inc. 3-101-687
MPN3-101-687
Active
6600-5, MOUNTING: SNAP-IN, 2.0 M
$1.99Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Series6600-5
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | 6600-5 |
| Filter type | Unfiltered - Commercial |
| Mounting | Panel Mount, Snap-In |
| Connector type | IEC 320-2-2/F |
| Voltage rating - appliance inlet | 250VAC |
| Current rating - appliance inlet | 10A |
| IP rating | IP20 |
| Panel cutout | Rectangular - 32.50mm x 24.90mm |
| Material flammability rating | UL94 V-0 |
| Approval agency | CCC, CSA, ENEC, UL, VDE |
| Package | Bulk |
| Features | Light Pipe, V-Lock Notch |
| Panel thickness | 0.079\" (2.00mm) |
| Accomodates a fuse | No |
| Positions | 3 |
