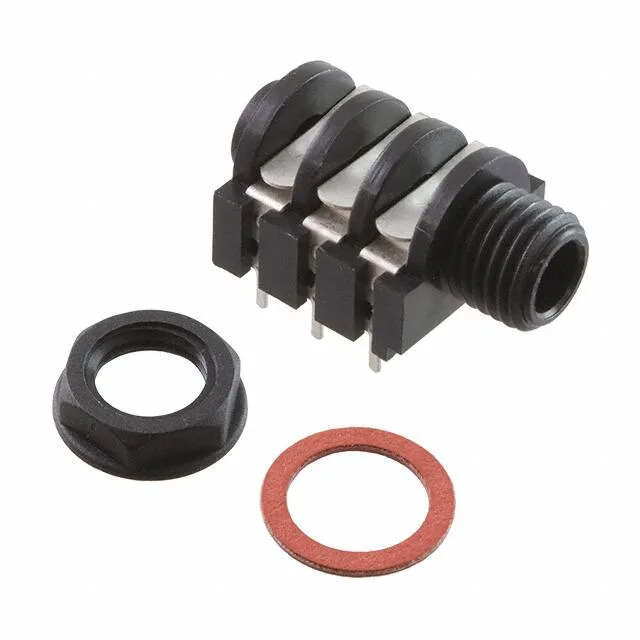

CONN JACK STEREO 6.35MM PNL MNT
$2.14Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Series | 4833 |
| Mounting type | Panel Mount, Through Hole |
| Connector type | Phone Jack |
| Voltage - rated | 30VAC/DC |
| Current rating | 1 A |
| Operating temperature | -20°C ~ 70°C |
| Body color | Black |
| Contact material | Brass |
| Housing material | Plastic |
| Mating length (Depth) | 1.220\" (31.00mm) |
| Contact material - plating | Gold |
| Gender | Female |
| Package | Bulk |
| Features | Thread Lock |
| Includes | 2 pcs - 1 Connector, 1 Nut |
| Shielding | Unshielded |
| Termination | Solder |
| Thread size | 7/16\"-20 |
| Signal lines | Stereo (3 Conductor, TRS) |
| Actual diameter | 0.256\" (6.50mm) |
| Panel hole size | 0.445\" (11.30mm) |
| Internal switch | Three Switches |
| Number of positions (Contacts) | 3 Conductors, 6 Contacts |
| Industry recognized mating diameter | 6.35mm (0.250\", 1/4\") - Headphone |
Sourcing this connector
SCHURTER Inc. 4833.233 is available through IC Source Direct’s Shenzhen interconnect channel. Submit an RFQ with your required quantity and timeline; we return a firm quote covering MOQ, lead time, condition, and unit price — typically within one business day.
Need a match by specification instead of MPN? Provide pitch, pin count, current rating, mounting style, and operating temperature. We cross-reference against SCHURTER Inc. and other authorised lines, returning datasheet-verified alternatives. Attach a full BOM for multi-brand consolidation into one shipment.
