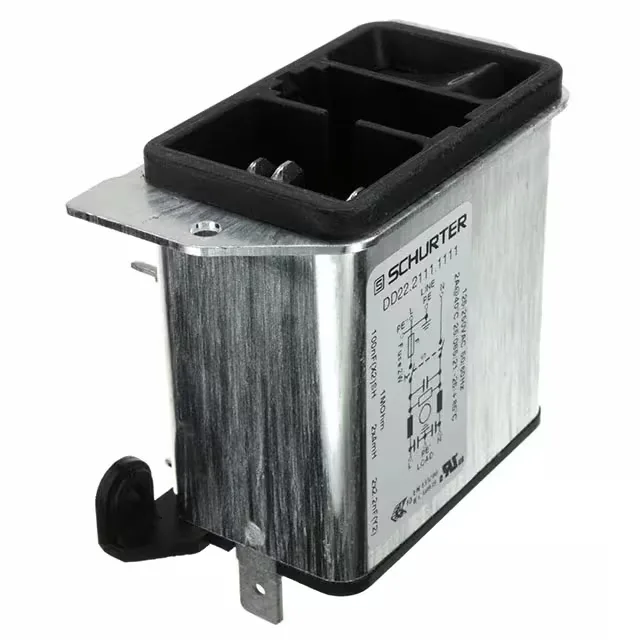

SCHURTER Inc. DD22.2111.1111
MPNDD22.2111.1111
Active
PWR ENT MOD RCPT IEC320-C14 PNL
$27.01Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesDD22
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | DD22 |
| Filter type | Filtered (EMI, RFI) - Commercial |
| Mounting | Panel Mount, Flange; Through Hole, Right Angle |
| Connector type | IEC 320-C14 |
| Voltage rating - appliance inlet | 250VAC |
| Current rating - filter | 2A |
| Current rating - appliance inlet | 10A |
| IP rating | IP40 |
| Material flammability rating | UL94 V-0 |
| Approval agency | cULus, ENEC |
| Package | Bulk |
| Termination | Solder, Quick Connect - 0.250\" (6.3mm) |
| Panel thickness | 0.138\" (3.50mm) |
| Switch features | Switch On-Off |
| Accomodates a fuse | Yes (Fuse Not Included) |
| Fuse holder, drawer | Drawer Sold Separate |
| Positions | 3 |
