SCHURTER Inc. EC12.1101.001
MPNEC12.1101.001
Active

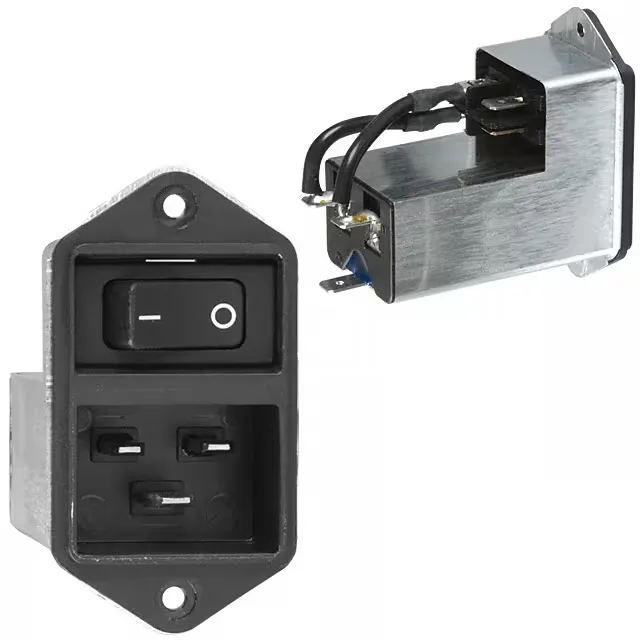

PWR ENT MOD RCPT IEC320-C20 PNL
$64.98Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesEC12
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | EC12 |
| Filter type | Filtered (EMI, RFI) - Commercial |
| Mounting | Panel Mount, Flange |
| Connector type | IEC 320-C20 |
| Current rating - filter | 20A |
| Current rating - appliance inlet | 16A |
| IP rating | IP40 |
| Panel cutout | Rectangular - 33.90mm x 48.00mm |
| Material flammability rating | UL94 V-0 |
| Approval agency | CQC, cURus, ENEC |
| Package | Bulk |
| Features | Shielded |
| Termination | Quick Connect - 0.250\" (6.3mm) |
| Switch features | Switch On-Off |
| Accomodates a fuse | No |
| Positions | 3 |
