SCHURTER Inc. KM00.1205.11
MPNKM00.1205.11
Active

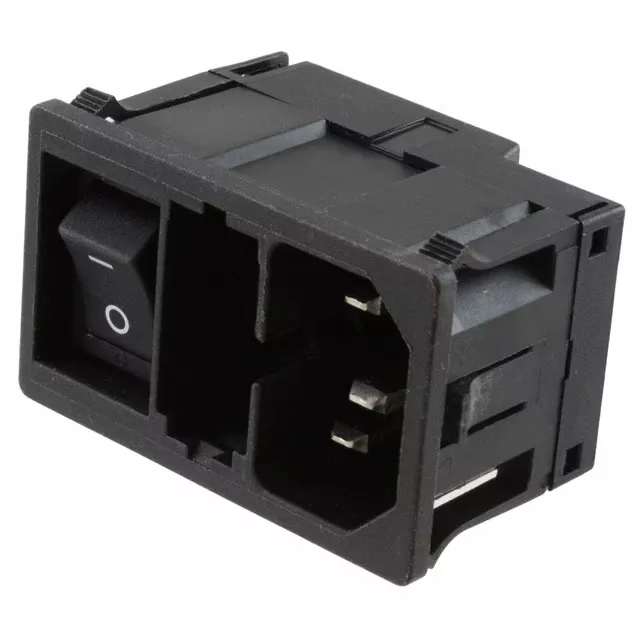

PWR ENT MOD RCPT IEC320-C14 PNL
$7.93Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesKM
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | KM |
| Filter type | Unfiltered - Commercial |
| Mounting | Panel Mount, Snap-In |
| Connector type | IEC 320-C14 |
| Voltage rating - appliance inlet | 250VAC |
| Current rating - appliance inlet | 10A |
| IP rating | IP40 |
| Panel cutout | Rectangular - 28.00mm x 47.00mm |
| Material flammability rating | UL94 V-0 |
| Approval agency | CCC, cULus, ENEC |
| Package | Bulk |
| Features | Terminating Cover |
| Termination | Quick Connect - 0.189\" (4.8mm) |
| Panel thickness | 0.039\" ~ 0.098\" (1.00mm ~ 2.50mm) |
| Switch features | Switch On-Off |
| Accomodates a fuse | Yes (Fuse Not Included) |
| Fuse holder, drawer | Drawer Sold Separate |
| Positions | 3 |
