5120.0006.0
SCHURTER Inc.
ShieldedVariable Size3
Ref. price$6.43
Lead time on requestGet quote ›

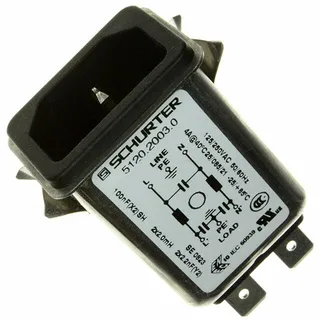

SCHURTER Inc. 5120 Series
11 variants · SCHURTER Inc.
About the SCHURTER Inc. 5120 Series
The SCHURTER Inc. 5120 Series series groups 11 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common accomodates a fuse of No, approval agency of CCC, cULus, ENEC and connector type of Receptacle, Male Blades. Variants differ by current rating - filter, features and filter type, so you can match the exact current rating - filter your application requires using the selection guide below. All listed SCHURTER Inc. 5120 Series part numbers are active and orderable.
Select a variant by
- Current rating - filter
- 2A · 4A · 10A · 15A
- Features
- Bleed Resistor, Shielded · Front or Rear Side Mount, Shielded · Shielded
- Filter type
- Filtered (EMI, RFI) - Commercial · Filtered (EMI, RFI) - Commercial, Medical
- Mounting type
- Panel Mount, Flange · Panel Mount, Flange; Through Hole, Right Angle · Panel Mount, Snap-In
- Panel cutout
- Rectangular - 29.40mm x 21.50mm · Rectangular - 30.50mm x 22.50mm · Variable Size
- Positions
- 2 · 3
- Termination
- Quick Connect - 0.250\" (6.3mm) · Solder
- Current rating - appliance inlet
- 2A · 4A · 10A
Shared specifications
- Accomodates a fuse
- No
- Approval agency
- CCC, cULus, ENEC
- Connector type
- Receptacle, Male Blades
- Ingress protection
- IP40
- Material flammability rating
- UL94 V-0
- Package
- Bulk
Variant comparison
| Parameter | 5120.0006.0 | 5120.0303.0 | 5120.0303.1 | 5120.0306.1 | 5120.1003.0 | 5120.1306.0 |
|---|---|---|---|---|---|---|
| Current rating - filter | 10A | 4A | 4A | 10A | 4A | 10A |
| Features | Shielded | Shielded | Shielded | Front or Rear Side Mount, Shielded | Shielded | Shielded |
| Filter type | Filtered (EMI, RFI) - Commercial | Filtered (EMI, RFI) - Commercial, Medical | Filtered (EMI, RFI) - Commercial, Medical | Filtered (EMI, RFI) - Commercial, Medical | Filtered (EMI, RFI) - Commercial | Filtered (EMI, RFI) - Commercial, Medical |
| Mounting type | Panel Mount, Flange | Panel Mount, Flange | Panel Mount, Flange | Panel Mount, Flange | Panel Mount, Flange | Panel Mount, Flange |
| Panel cutout | Variable Size | Variable Size | Variable Size | Variable Size | Variable Size | Variable Size |
| Positions | 3 | 3 | 2 | 2 | 3 | 3 |
| Termination | Quick Connect - 0.250\" (6.3mm) | Quick Connect - 0.250\" (6.3mm) | Quick Connect - 0.250\" (6.3mm) | Quick Connect - 0.250\" (6.3mm) | Quick Connect - 0.250\" (6.3mm) | Quick Connect - 0.250\" (6.3mm) |
| Current rating - appliance inlet | 10A | 4A | 4A | 10A | 4A | 10A |
Request a quote on any SCHURTER Inc. 5120 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the SCHURTER Inc. 5120 Series variants differ?
- SCHURTER Inc. 5120 Series part numbers differ by current rating - filter, features, filter type and mounting type. Use the selection guide above to pick by current rating - filter.
- How many SCHURTER Inc. 5120 Series part numbers are listed?
- 11 SCHURTER Inc. 5120 Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for SCHURTER Inc. 5120 Series?
- Request a quote (RFQ) for any SCHURTER Inc. 5120 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
