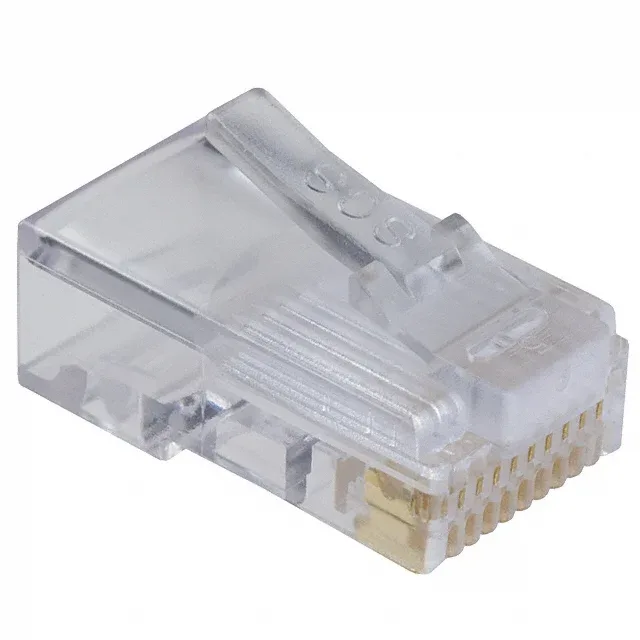

940-SP-301010R
Stewart Connector
0.885\" (22.48mm)Translucent - Clear30
Ref. price$0.8000
Lead time on requestGet quote ›
Stewart Connector 940SP30 Series
11 variants · Stewart Connector
About the Stewart Connector 940SP30 Series
The Stewart Connector 940SP30 Series series groups 11 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common color of Translucent - Clear, connector type of Plug and contact finish of Gold. Variants differ by cable type, features and length, so you can match the exact cable type your application requires using the selection guide below. All listed Stewart Connector 940SP30 Series part numbers are active and orderable.
Select a variant by
- Cable type
- Flat Oval Cable, Solid or Stranded Wires · Round Cable, Solid or Stranded Wires
- Features
- - · Offset Latch
- Length
- 0.525\" (13.34mm) · 0.885\" (22.48mm)
- Number of positions (Contacts)
- 4p4c (RJ9, RJ10, RJ22) · 6p4c (RJ11, RJ14) · 6p6c (RJ11, RJ12, RJ14, RJ25) · 8p8c (RJ45, Ethernet) · 10p10c (RJ50)
Shared specifications
- Color
- Translucent - Clear
- Connector type
- Plug
- Contact finish
- Gold
- Contact finish thickness
- 50.0µin (1.27µm)
- Contact material
- Phosphor Bronze
- Current rating
- 1.5 A
- Housing material
- Polycarbonate (PC)
- Ingress protection
- -
- Package
- Bulk
- Ratings
- -
- Shield material
- -
- Shielding
- Unshielded
Variant comparison
| Parameter | 940-SP-301010R | 940-SP-3044 | 940-SP-3044R | 940-SP-3046 | 940-SP-3066-B25 | 940-SP-3066-OST |
|---|---|---|---|---|---|---|
| Cable type | Round Cable, Solid or Stranded Wires | Flat Oval Cable, Solid or Stranded Wires | Round Cable, Solid or Stranded Wires | Flat Oval Cable, Solid or Stranded Wires | Flat Oval Cable, Solid or Stranded Wires | Flat Oval Cable, Solid or Stranded Wires |
| Features | - | - | - | - | - | Offset Latch |
| Length | 0.885\" (22.48mm) | 0.525\" (13.34mm) | 0.525\" (13.34mm) | 0.525\" (13.34mm) | 0.525\" (13.34mm) | 0.525\" (13.34mm) |
| Number of positions (Contacts) | 10p10c (RJ50) | 4p4c (RJ9, RJ10, RJ22) | 4p4c (RJ9, RJ10, RJ22) | 6p4c (RJ11, RJ14) | 6p6c (RJ11, RJ12, RJ14, RJ25) | 6p6c (RJ11, RJ12, RJ14, RJ25) |
Request a quote on any Stewart Connector 940SP30 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the Stewart Connector 940SP30 Series variants differ?
- Stewart Connector 940SP30 Series part numbers differ by cable type, features, length and number of positions (Contacts). Use the selection guide above to pick by cable type.
- How many Stewart Connector 940SP30 Series part numbers are listed?
- 11 Stewart Connector 940SP30 Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for Stewart Connector 940SP30 Series?
- Request a quote (RFQ) for any Stewart Connector 940SP30 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
