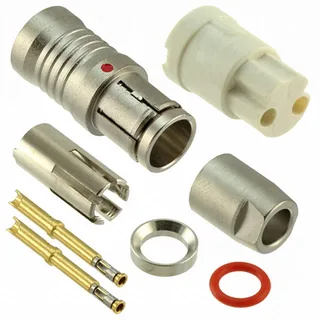

HS2C2F20C
Switchcraft Inc.
2SilverDura-Pull™, HS
Ref. price$20.66
Lead time on requestGet quote ›
Switchcraft Inc. HS2C Series
6 variants · Switchcraft Inc.
About the Switchcraft Inc. HS2C Series
The Switchcraft Inc. HS2C Series series groups 6 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common applications of Agriculture, Audio, General, Medical, Testing Equipment & Measurement, cable opening of 0.180\" ~ 0.216\" (4.57mm ~ 5.49mm) and color of Silver. Variants differ by connector type and positions, so you can match the exact connector type your application requires using the selection guide below. All listed Switchcraft Inc. HS2C Series part numbers are active and orderable.
Select a variant by
- Connector type
- Plug, Female Sockets · Plug, Male Pins
- Positions
- 2 · 3 · 4 · 5
Shared specifications
- Applications
- Agriculture, Audio, General, Medical, Testing Equipment & Measurement
- Cable opening
- 0.180\" ~ 0.216\" (4.57mm ~ 5.49mm)
- Color
- Silver
- Contact finish - mating
- Gold
- Contact material
- Copper Alloy
- Fastening type
- Push-Pull
- Ingress protection
- IP66/IP67/IP68 - Dust Tight, Water Resistant, Waterproof
- Insert material
- Liquid Crystal Polymer (LCP)
- Material flammability rating
- UL94 HF-1
- Mounting type
- Free Hanging (In-Line)
- Operating temperature
- -40°C ~ 135°C
- Orientation
- Keyed
Variant comparison
| Parameter | HS2C2F20C | HS2C3M20C | HS2C4F20C | HS2C4M20C | HS2C5F20C | HS2C5M20C |
|---|---|---|---|---|---|---|
| Connector type | Plug, Female Sockets | Plug, Male Pins | Plug, Female Sockets | Plug, Male Pins | Plug, Female Sockets | Plug, Male Pins |
| Positions | 2 | 3 | 4 | 4 | 5 | 5 |
