How do the Switchcraft Inc. PJRA Series variants differ?

Switchcraft Inc. PJRA Series part numbers differ by body color, body material, contact material - plating and insulation color. Use the selection guide above to pick by body color.

How many Switchcraft Inc. PJRA Series part numbers are listed?

14 Switchcraft Inc. PJRA Series part numbers are listed, each with specifications and a datasheet where available.

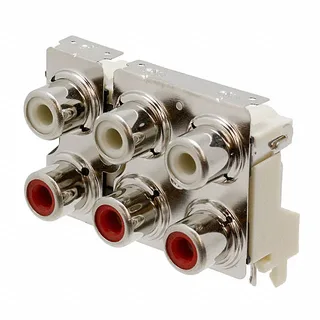

Switchcraft Inc. PJRA Series

14 variants · Switchcraft Inc.

About the Switchcraft Inc. PJRA Series

The Switchcraft Inc. PJRA Series series groups 14 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common connector type of Phono (RCA) Jack, contact material of Copper Alloy and current rating of 2 A. Variants differ by body color, body material and contact material - plating, so you can match the exact body color your application requires using the selection guide below. All listed Switchcraft Inc. PJRA Series part numbers are active and orderable.

Select a variant by

Body color: Gold, Red · Gold, White · Silver, Black · Silver, Red · Silver, White · Silver, Yellow
Body material: Copper · Copper Alloy
Contact material - plating: Gold · Tin
Insulation color: Black · Red · Red, White · White · Yellow
Internal switch: Does Not Contain Switch · Single Switch
Number of positions (Contacts): 2 Conductors, 3 Contacts · 2 Sets of 2 Conductors, 3 Contacts · 2 Sets of 2 Conductors, 4 Contacts · 2 Sets of 2 Conductors, 6 Contacts · 4 Sets of 2 Conductors, 6 Contacts · 6 Sets of 2 Conductors, 9 Contacts
Shielding: Shielded · Unshielded

Shared specifications

Connector type: Phono (RCA) Jack
Contact material: Copper Alloy
Current rating: 2 A
Gender: Female
Housing material: Acrylonitrile Butadiene Styrene (ABS)
Industry recognized mating diameter: 3.20mm ID, 9.00mm OD (RCA)
Mounting type: Through Hole, Right Angle
Operating temperature: -25°C ~ 85°C
Package: Bulk
Signal lines: Mono
Termination: Solder
Voltage - rated: 34VAC/DC

Variant comparison

Parameter	PJRAN1X1U01X	PJRAN1X1U02X	PJRAN1X1U03X	PJRAN1X1U04X	PJRAN2X1U01AUX	PJRAS1X1S01X
Body color	Silver, Black	Silver, White	Silver, Red	Silver, Yellow	Gold, Red	Silver, Black
Body material	Copper Alloy	Copper Alloy	Copper Alloy	Copper Alloy	Copper Alloy	Copper
Contact material - plating	Tin	Tin	Tin	Tin	Gold	Tin
Insulation color	Black	White	Red	Yellow	Red, White	Black
Internal switch	Single Switch	Single Switch	Single Switch	Single Switch	Single Switch	Does Not Contain Switch
Number of positions (Contacts)	2 Conductors, 3 Contacts	2 Conductors, 3 Contacts	2 Conductors, 3 Contacts	2 Conductors, 3 Contacts	2 Sets of 2 Conductors, 6 Contacts	2 Conductors, 3 Contacts
Shielding	Unshielded	Unshielded	Unshielded	Unshielded	Unshielded	Shielded

Request a quote on any Switchcraft Inc. PJRA Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.

Frequently asked questions

How do the Switchcraft Inc. PJRA Series variants differ?: Switchcraft Inc. PJRA Series part numbers differ by body color, body material, contact material - plating and insulation color. Use the selection guide above to pick by body color.
How many Switchcraft Inc. PJRA Series part numbers are listed?: 14 Switchcraft Inc. PJRA Series part numbers are listed, each with specifications and a datasheet where available.
How do I get pricing and lead time for Switchcraft Inc. PJRA Series?: Request a quote (RFQ) for any Switchcraft Inc. PJRA Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
