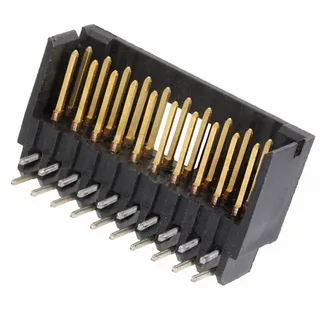

103164-1
TE Connectivity AMP Connectors
6-65°C ~ 105°CTray
Ref. price$1.5996
Lead time on requestGet quote ›
TE Connectivity AMP Connectors 10316 Series
33 variants · TE Connectivity AMP Connectors
About the TE Connectivity AMP Connectors 10316 Series
The TE Connectivity AMP Connectors 10316 Series series groups 33 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common applications of -, connector type of Header and contact finish - mating of Gold. Variants differ by contact length - post, insulation height and mounting type, so you can match the exact contact length - post your application requires using the selection guide below. The range mixes active and legacy part numbers, so you can source both current TE Connectivity AMP Connectors 10316 Series variants and discontinued ones from a single page.
Select a variant by
- Contact length - post
- 0.125\" (3.18mm) · 0.135\" (3.43mm)
- Insulation height
- 0.361\" (9.17mm) · 0.400\" (10.16mm) · 0.440\" (11.18mm)
- Mounting type
- Through Hole · Through Hole, Right Angle
- Operating temperature
- -65°C ~ 105°C · -65°C~105°C
- Overall contact length
- - · 0.533\" (13.55mm)
- Positions
- 6 · 8 · 10 · 12 · 14 · 16 · 18 · 20 · 24
- Shrouding
- Shrouded - 3 Wall · Shrouded - 4 Wall
Shared specifications
- Applications
- -
- Connector type
- Header
- Contact finish - mating
- Gold
- Contact finish - post
- Tin-Lead
- Contact finish thickness - mating
- 30.0µin (0.76µm)
- Contact finish thickness - post
- 100.0µin (2.54µm)
- Contact length - mating
- 0.318\" (8.08mm)
- Contact material
- Phosphor Bronze
- Contact shape
- Square
- Current rating
- 3A
- Fastening type
- Detent Lock
- Features
- -
Variant comparison
| Parameter | 103164-1 | 103164-8 | 103166-4 | 103166-6 | 103166-7 | 103166-8 |
|---|---|---|---|---|---|---|
| Contact length - post | 0.125\" (3.18mm) | 0.125\" (3.18mm) | 0.135\" (3.43mm) | 0.135\" (3.43mm) | 0.135\" (3.43mm) | 0.135\" (3.43mm) |
| Insulation height | 0.361\" (9.17mm) | 0.361\" (9.17mm) | 0.400\" (10.16mm) | 0.400\" (10.16mm) | 0.400\" (10.16mm) | 0.400\" (10.16mm) |
| Mounting type | Through Hole, Right Angle | Through Hole, Right Angle | Through Hole, Right Angle | Through Hole, Right Angle | Through Hole, Right Angle | Through Hole, Right Angle |
| Operating temperature | -65°C ~ 105°C | -65°C ~ 105°C | -65°C ~ 105°C | -65°C ~ 105°C | -65°C ~ 105°C | -65°C~105°C |
| Overall contact length | - | - | - | - | - | - |
| Positions | 6 | 20 | 12 | 16 | 18 | 20 |
| Shrouding | Shrouded - 3 Wall | Shrouded - 3 Wall | Shrouded - 4 Wall | Shrouded - 4 Wall | Shrouded - 4 Wall | Shrouded - 4 Wall |
Request a quote on any TE Connectivity AMP Connectors 10316 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the TE Connectivity AMP Connectors 10316 Series variants differ?
- TE Connectivity AMP Connectors 10316 Series part numbers differ by contact length - post, insulation height, mounting type and operating temperature. Use the selection guide above to pick by contact length - post.
- How many TE Connectivity AMP Connectors 10316 Series part numbers are listed?
- 33 TE Connectivity AMP Connectors 10316 Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for TE Connectivity AMP Connectors 10316 Series?
- Request a quote (RFQ) for any TE Connectivity AMP Connectors 10316 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
