1658645-1
TE Connectivity AMP Connectors
9Shielded2
Ref. price$2.9800
Lead time on requestGet quote ›
TE Connectivity AMP Connectors 16586 Series
27 variants · TE Connectivity AMP Connectors
About the TE Connectivity AMP Connectors 16586 Series
The TE Connectivity AMP Connectors 16586 Series series groups 27 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common color of Black, gender of Signal and ingress protection of -. Variants differ by connector type, dielectric material and features, so you can match the exact connector type your application requires using the selection guide below. All listed TE Connectivity AMP Connectors 16586 Series part numbers are active and orderable.
Select a variant by
- Connector type
- Plug for Male Contacts · Receptacle for Female Contacts
- Dielectric material
- Polyamide (PA), Nylon, Glass Filled · Thermoplastic
- Features
- - · Backshell, Grounding Indents, Shielded · Grounding Indents · Grounding Indents, Shielded · Shielded
- Flange feature
- Cable Side (4-40) · Housing/Shell (Unthreaded)
- Positions
- 9 · 15 · 25 · 50
- Rows
- 2 · 3
- Shell material, finish
- Steel, Tin Plated · Steel, Yellow Chromate Plated Zinc
- Shell size, connector layout
- 1 (DE, E) · 2 (DA, A) · 3 (DB, B) · 5 (DD, D)
Shared specifications
- Color
- Black
- Gender
- Signal
- Ingress protection
- -
- Mating cycles
- -
- Mounting type
- Free Hanging (In-Line)
- Operating temperature
- -
- Package
- Bulk
- Shell finish thickness
- 200µin (5.08µm)
Variant comparison
| Parameter | 1658645-1 | 1658641-3 | 1658655-1 | 1658640-1 | 1658640-2 | 1658641-1 |
|---|---|---|---|---|---|---|
| Connector type | Plug for Male Contacts | Plug for Male Contacts | Plug for Male Contacts | Receptacle for Female Contacts | Receptacle for Female Contacts | Plug for Male Contacts |
| Dielectric material | Polyamide (PA), Nylon, Glass Filled | Polyamide (PA), Nylon, Glass Filled | Polyamide (PA), Nylon, Glass Filled | Polyamide (PA), Nylon, Glass Filled | Polyamide (PA), Nylon, Glass Filled | Polyamide (PA), Nylon, Glass Filled |

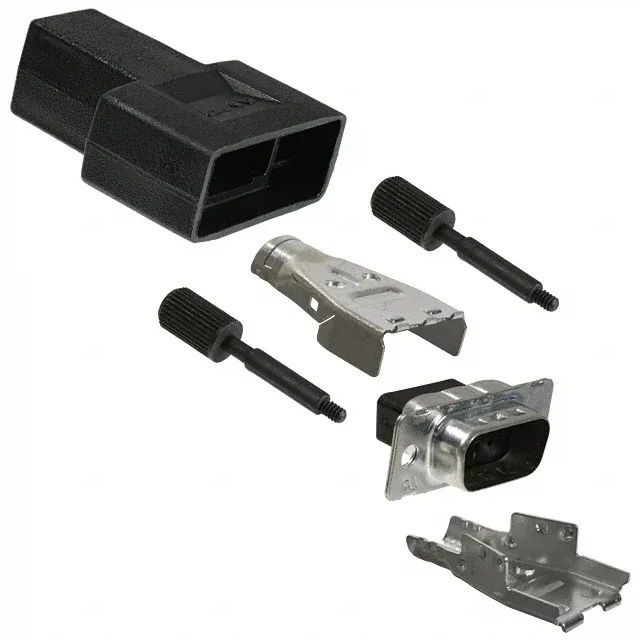

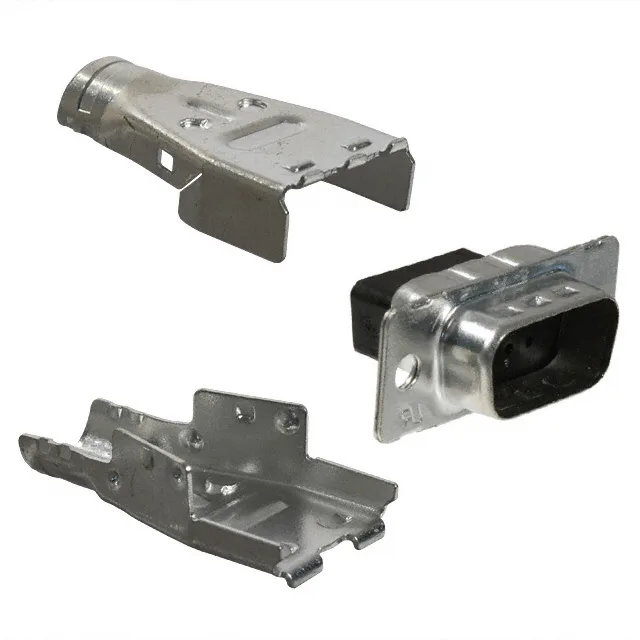

| Features | Shielded | Grounding Indents | Backshell, Grounding Indents, Shielded | - | - | Grounding Indents |
| Flange feature | Housing/Shell (Unthreaded) | Housing/Shell (Unthreaded) | Cable Side (4-40) | Housing/Shell (Unthreaded) | Housing/Shell (Unthreaded) | Housing/Shell (Unthreaded) |
| Positions | 9 | 50 | 9 | 50 | 50 | 50 |
| Rows | 2 | 3 | 2 | 3 | 3 | 3 |
| Shell material, finish | Steel, Tin Plated | Steel, Yellow Chromate Plated Zinc | Steel, Tin Plated | Steel, Tin Plated | Steel, Yellow Chromate Plated Zinc | Steel, Tin Plated |
| Shell size, connector layout | 1 (DE, E) | 5 (DD, D) | 1 (DE, E) | 5 (DD, D) | 5 (DD, D) | 5 (DD, D) |
Request a quote on any TE Connectivity AMP Connectors 16586 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the TE Connectivity AMP Connectors 16586 Series variants differ?
- TE Connectivity AMP Connectors 16586 Series part numbers differ by connector type, dielectric material, features and flange feature. Use the selection guide above to pick by connector type.
- How many TE Connectivity AMP Connectors 16586 Series part numbers are listed?
- 27 TE Connectivity AMP Connectors 16586 Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for TE Connectivity AMP Connectors 16586 Series?
- Request a quote (RFQ) for any TE Connectivity AMP Connectors 16586 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
