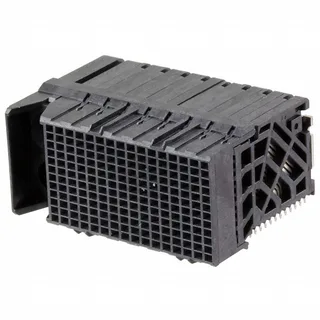

2007703-1
TE Connectivity AMP Connectors
90TubeBoard Guide
Ref. price$15.94
Lead time on requestGet quote ›
TE Connectivity AMP Connectors 20077 Series
12 variants · TE Connectivity AMP Connectors
About the TE Connectivity AMP Connectors 20077 Series
The TE Connectivity AMP Connectors 20077 Series series groups 12 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common color of Black, contact finish of Gold and material flammability rating of UL94 V-0. Variants differ by connector type, contact finish thickness and mounting type, so you can match the exact connector type your application requires using the selection guide below. All listed TE Connectivity AMP Connectors 20077 Series part numbers are active and orderable.
Select a variant by
- Connector type
- Header, Male Pins · Receptacle, Female Sockets
- Contact finish thickness
- 30.0µin (0.76µm) · 50.0µin (1.27µm)
- Mounting type
- Board Edge, Through Hole, Right Angle · Through Hole
- Number of columns
- 10 · 16
- Package
- Box · Bulk · Tube
- Pitch
- 0.075\" (1.90mm) · 0.075\" (1.91mm)
- Positions
- 90 · 144 · 192
- Rows
- 9 · 12
Shared specifications
- Color
- Black
- Contact finish
- Gold
- Material flammability rating
- UL94 V-0
- Operating temperature
- -55°C ~ 85°C
- Termination
- Press-Fit
Variant comparison
| Parameter | 2007703-1 | 2007721-1 | 2007722-1 | 2007777-2 | 2007781-1 | 2007783-1 |
|---|---|---|---|---|---|---|
| Connector type | Receptacle, Female Sockets | Receptacle, Female Sockets | Receptacle, Female Sockets | Header, Male Pins | Header, Male Pins | Header, Male Pins |
| Contact finish thickness | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 50.0µin (1.27µm) | 30.0µin (0.76µm) |
| Mounting type | Board Edge, Through Hole, Right Angle | Board Edge, Through Hole, Right Angle | Board Edge, Through Hole, Right Angle | Through Hole | Through Hole | Through Hole |
| Number of columns | 10 | 16 | 16 | 10 | 10 | 10 |
| Package | Tube | Tube | Bulk | Bulk | Bulk | Tube |
| Pitch | 0.075\" (1.91mm) | 0.075\" (1.91mm) | 0.075\" (1.91mm) | 0.075\" (1.91mm) | 0.075\" (1.91mm) | 0.075\" (1.90mm) |
| Positions | 90 | 192 | 192 | 90 | 90 | 90 |
| Rows | 9 | 12 | 12 | 9 | 9 | 9 |
Request a quote on any TE Connectivity AMP Connectors 20077 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the TE Connectivity AMP Connectors 20077 Series variants differ?
- TE Connectivity AMP Connectors 20077 Series part numbers differ by connector type, contact finish thickness, mounting type and number of columns. Use the selection guide above to pick by connector type.
- How many TE Connectivity AMP Connectors 20077 Series part numbers are listed?
- 12 TE Connectivity AMP Connectors 20077 Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for TE Connectivity AMP Connectors 20077 Series?
- Request a quote (RFQ) for any TE Connectivity AMP Connectors 20077 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
