How do the TE Connectivity AMP Connectors 3205 Series variants differ?

TE Connectivity AMP Connectors 3205 Series part numbers differ by color, insulation diameter, length - overall and stud (Tab size). Use the selection guide above to pick by color.

TE Connectivity AMP Connectors 3205 Series

13 variants · TE Connectivity AMP Connectors

About the TE Connectivity AMP Connectors 3205 Series

The TE Connectivity AMP Connectors 3205 Series series groups 13 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common contact finish of Tin, contact material of Copper and features of Serrated Termination. Variants differ by color, insulation diameter and length - overall, so you can match the exact color your application requires using the selection guide below. All listed TE Connectivity AMP Connectors 3205 Series part numbers are active and orderable.

Select a variant by

Color: Blue · Red · Yellow
Insulation diameter: 0.080\" ~ 0.125\" (2.03mm ~ 3.18mm) · 0.105\" ~ 0.150\" (2.67mm ~ 3.81mm) · 0.150\" ~ 0.230\" (3.81mm ~ 5.84mm)
Length - overall: 0.797\" (20.24mm) · 0.844\" (21.44mm) · 0.859\" (21.82mm) · 1.078\" (27.38mm) · 1.083\" (27.51mm) · 1.218\" (30.94mm) · 1.322\" (33.58mm)
Stud (Tab size): 1/4 Stud · 3/8 Stud · 5/16 Stud · 6 Stud · 8 Stud · 10 Stud
Thickness: 0.031\" (0.79mm) · 0.040\" (1.02mm)
Width - outer edges: 0.281\" (7.14mm) · 0.312\" (7.92mm) · 0.343\" (8.71mm) · 0.375\" (9.53mm) · 0.469\" (11.91mm) · 0.531\" (13.49mm)
Wire gauge: 10-12 AWG · 14-16 AWG · 16-22 AWG

Shared specifications

Contact finish: Tin
Contact material: Copper
Features: Serrated Termination
Insulation: Insulated
Material - insulation: Polyamide (PA), Nylon
Mounting type: Free Hanging (In-Line)
Package: Bulk
Terminal type: Circular
Termination: Crimp

Variant comparison

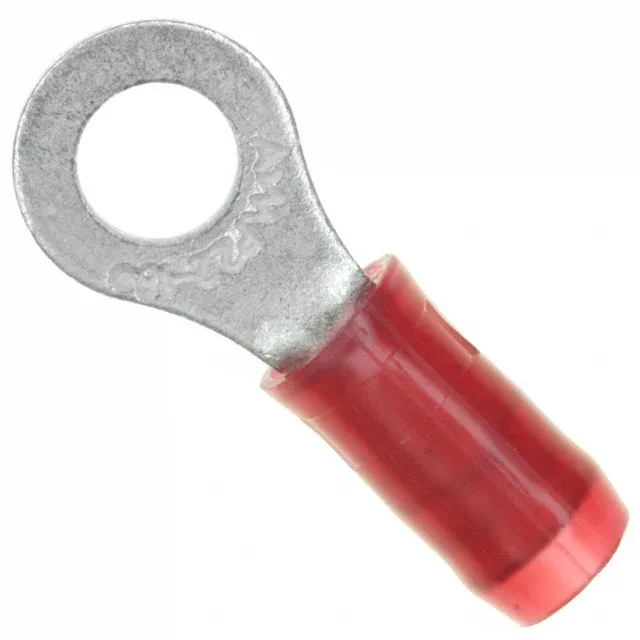

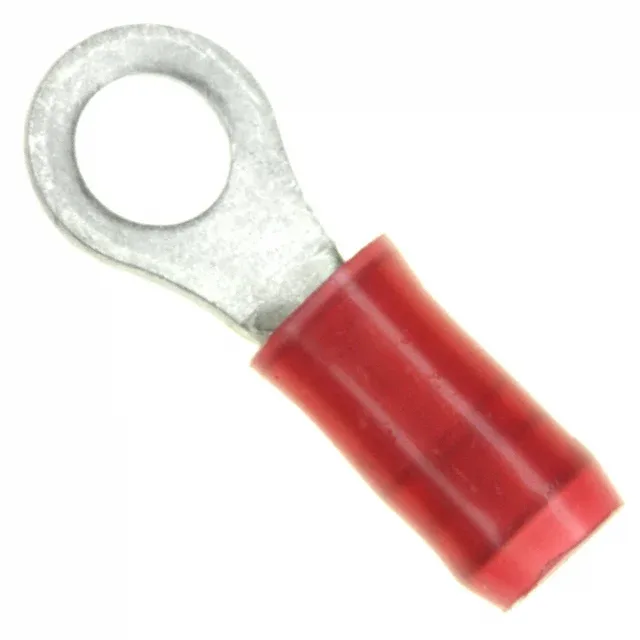

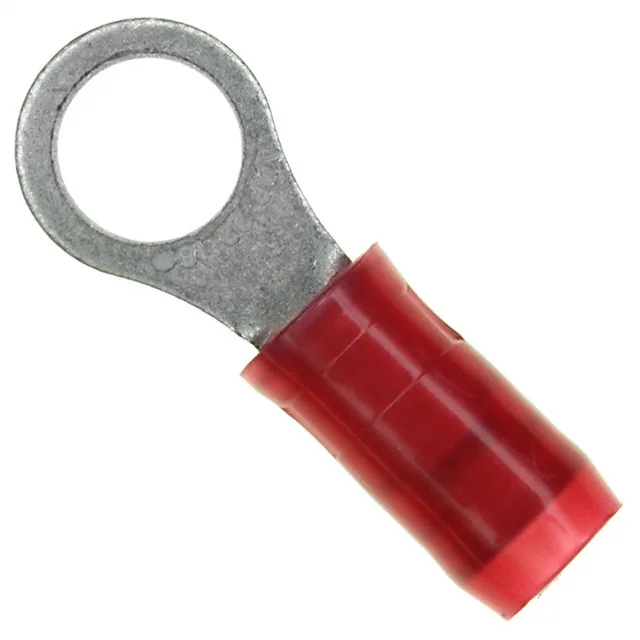

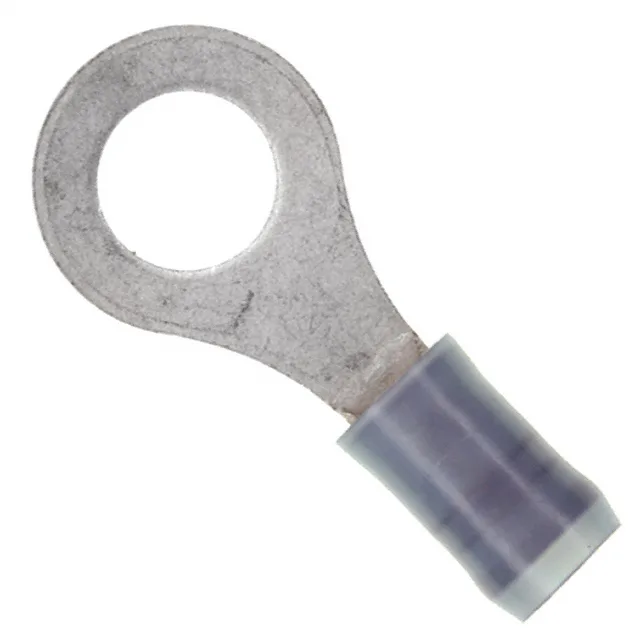

Parameter	320551	320552	320554	320560	320563	320564
Color	Red	Red	Red	Blue	Blue	Blue
Insulation diameter	0.080\" ~ 0.125\" (2.03mm ~ 3.18mm)	0.080\" ~ 0.125\" (2.03mm ~ 3.18mm)	0.080\" ~ 0.125\" (2.03mm ~ 3.18mm)	0.105\" ~ 0.150\" (2.67mm ~ 3.81mm)	0.105\" ~ 0.150\" (2.67mm ~ 3.81mm)	0.105\" ~ 0.150\" (2.67mm ~ 3.81mm)
Length - overall	0.844\" (21.44mm)	0.797\" (20.24mm)	0.797\" (20.24mm)	0.859\" (21.82mm)	1.078\" (27.38mm)	1.218\" (30.94mm)
Stud (Tab size)	8 Stud	10 Stud	8 Stud	8 Stud	1/4 Stud	3/8 Stud
Thickness	0.031\" (0.79mm)	0.031\" (0.79mm)	0.031\" (0.79mm)	0.031\" (0.79mm)	0.031\" (0.79mm)	0.031\" (0.79mm)
Width - outer edges	0.312\" (7.92mm)	0.281\" (7.14mm)	0.281\" (7.14mm)	0.343\" (8.71mm)	0.469\" (11.91mm)	0.531\" (13.49mm)
Wire gauge	16-22 AWG	16-22 AWG	16-22 AWG	14-16 AWG	14-16 AWG	14-16 AWG

Request a quote on any TE Connectivity AMP Connectors 3205 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.

Frequently asked questions

How do the TE Connectivity AMP Connectors 3205 Series variants differ?: TE Connectivity AMP Connectors 3205 Series part numbers differ by color, insulation diameter, length - overall and stud (Tab size). Use the selection guide above to pick by color.
How many TE Connectivity AMP Connectors 3205 Series part numbers are listed?: 13 TE Connectivity AMP Connectors 3205 Series part numbers are listed, each with specifications and a datasheet where available.
How do I get pricing and lead time for TE Connectivity AMP Connectors 3205 Series?: Request a quote (RFQ) for any TE Connectivity AMP Connectors 3205 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
