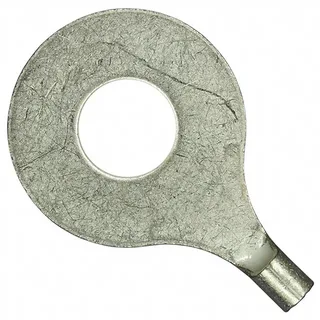

320741
TE Connectivity AMP Connectors
0.070\" (1.78mm)Serrated TerminationSolistrand
Ref. price$2.0200
Lead time on requestGet quote ›
TE Connectivity AMP Connectors 3207 Series
10 variants · TE Connectivity AMP Connectors
About the TE Connectivity AMP Connectors 3207 Series
The TE Connectivity AMP Connectors 3207 Series series groups 10 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common contact finish of Tin, contact material of Copper and mounting type of Free Hanging (In-Line). Variants differ by color, features and insulation, so you can match the exact color your application requires using the selection guide below. All listed TE Connectivity AMP Connectors 3207 Series part numbers are active and orderable.
Select a variant by
- Color
- - · Red
- Features
- Brazed Seam, Heavy Duty, Serrated Termination · Brazed Seam, Serrated Termination · Serrated Termination
- Insulation
- Insulated · Non-Insulated
- Insulation diameter
- - · 0.105\" ~ 0.140\" (2.67mm ~ 3.56mm)
- Length - overall
- 0.669\" (16.99mm) · 1.246\" (31.65mm) · 1.314\" (33.38mm) · 1.657\" (42.09mm) · 1.896\" (48.16mm)
- Material - insulation
- - · Polyamide (PA), Nylon
- Stud (Tab size)
- 1/2 Stud · 2 Stud · 3/4 Stud · 5/8 Stud · 7/16 Stud
Shared specifications
- Contact finish
- Tin
- Contact material
- Copper
- Mounting type
- Free Hanging (In-Line)
- Package
- Bulk
- Terminal type
- Circular
- Termination
- Crimp
Variant comparison
| Parameter | 320741 | 320743 | 320745 | 320759 | 320761 | 320762 |
|---|---|---|---|---|---|---|
| Color | - | - | - | - | - | - |
| Features | Serrated Termination | Brazed Seam, Serrated Termination | Brazed Seam, Serrated Termination | Brazed Seam, Heavy Duty, Serrated Termination | Serrated Termination | Serrated Termination |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated |
| Insulation diameter | - | - | - | - | - | - |
| Length - overall | 1.657\" (42.09mm) | 1.314\" (33.38mm) | 1.246\" (31.65mm) | 1.896\" (48.16mm) | 1.896\" (48.16mm) | 1.896\" (48.16mm) |
| Material - insulation | - | - | - | - | - | - |
| Stud (Tab size) | 7/16 Stud | 7/16 Stud | 7/16 Stud | 3/4 Stud | 5/8 Stud | 3/4 Stud |
Request a quote on any TE Connectivity AMP Connectors 3207 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the TE Connectivity AMP Connectors 3207 Series variants differ?
- TE Connectivity AMP Connectors 3207 Series part numbers differ by color, features, insulation and insulation diameter. Use the selection guide above to pick by color.
- How many TE Connectivity AMP Connectors 3207 Series part numbers are listed?
- 10 TE Connectivity AMP Connectors 3207 Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for TE Connectivity AMP Connectors 3207 Series?
- Request a quote (RFQ) for any TE Connectivity AMP Connectors 3207 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
