324011
TE Connectivity AMP Connectors
0.031\" (0.79mm)RedOffset Holes, Serrated Termination
Ref. price$0.8400
Lead time on requestGet quote ›

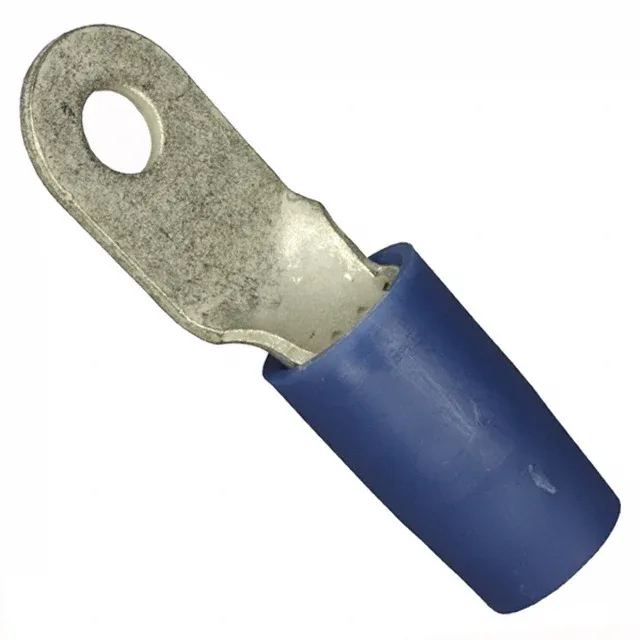

TE Connectivity AMP Connectors 3240 Series
10 variants · TE Connectivity AMP Connectors
About the TE Connectivity AMP Connectors 3240 Series
The TE Connectivity AMP Connectors 3240 Series series groups 10 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common contact finish of Tin, contact material of Copper and insulation of Insulated. Variants differ by color, features and insulation diameter, so you can match the exact color your application requires using the selection guide below. All listed TE Connectivity AMP Connectors 3240 Series part numbers are active and orderable.
Select a variant by
- Color
- Blue · Red · Yellow
- Features
- - · Offset Holes, Serrated Termination · Serrated Termination
- Insulation diameter
- 0.050\" ~ 0.082\" (1.27mm ~ 2.08mm) · 0.080\" ~ 0.125\" (2.03mm ~ 3.18mm) · 0.256\" (6.50mm) · 0.314\" (7.98mm) · 0.468\" (11.89mm) · 0.580\" (14.73mm)
- Length - overall
- 0.740\" (18.80mm) · 0.906\" (23.01mm) · 1.425\" (36.20mm) · 1.575\" (40.00mm) · 1.700\" (43.18mm) · 1.762\" (44.75mm) · 2.045\" (51.94mm) · 2.063\" (52.40mm) · 2.135\" (54.23mm) · 2.426\" (61.62mm)
- Stud (Tab size)
- 1/2 Stud · 1/4 Stud · 3/8 Stud · 5/16 Stud · 10 Stud
- Thickness
- 0.018\" (0.46mm) · 0.031\" (0.79mm) · 0.040\" (1.02mm) · 0.045\" (1.14mm) · 0.057\" (1.45mm) · 0.070\" (1.78mm)
- Width - outer edges
- 0.250\" (6.35mm) · 0.375\" (9.53mm) · 0.468\" (11.89mm) · 0.478\" (12.14mm) · 0.500\" (12.70mm) · 0.625\" (15.88mm) · 0.679\" (17.25mm) · 0.711\" (18.06mm) · 0.807\" (20.50mm) · 0.855\" (21.72mm)
Shared specifications
- Contact finish
- Tin
- Contact material
- Copper
- Insulation
- Insulated
- Material - insulation
- Polyamide (PA), Nylon
- Mounting type
- Free Hanging (In-Line)
- Package
- Bulk
- Terminal type
- Circular
- Termination
- Crimp
Variant comparison
| Parameter | 324011 | 324046 | 324047 | 324048 | 324053 | 324054 |
|---|---|---|---|---|---|---|
| Color | Red | Blue | Blue | Blue | Red | Red |
| Features | Offset Holes, Serrated Termination | Serrated Termination | Serrated Termination | Serrated Termination | Serrated Termination | Serrated Termination |
| Insulation diameter | 0.080\" ~ 0.125\" (2.03mm ~ 3.18mm) | 0.314\" (7.98mm) | 0.314\" (7.98mm) | 0.314\" (7.98mm) | 0.468\" (11.89mm) | 0.468\" (11.89mm) |
| Length - overall | 0.906\" (23.01mm) | 1.575\" (40.00mm) | 1.700\" (43.18mm) | 1.762\" (44.75mm) | 2.045\" (51.94mm) | 2.063\" (52.40mm) |
| Stud (Tab size) | 10 Stud | 10 Stud | 1/4 Stud | 5/16 Stud | 1/4 Stud | 3/8 Stud |
| Thickness | 0.031\" (0.79mm) | 0.045\" (1.14mm) | 0.045\" (1.14mm) | 0.045\" (1.14mm) | 0.057\" (1.45mm) | 0.057\" (1.45mm) |
| Width - outer edges | 0.375\" (9.53mm) | 0.468\" (11.89mm) | 0.500\" (12.70mm) | 0.625\" (15.88mm) | 0.679\" (17.25mm) | 0.711\" (18.06mm) |
Request a quote on any TE Connectivity AMP Connectors 3240 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the TE Connectivity AMP Connectors 3240 Series variants differ?
- TE Connectivity AMP Connectors 3240 Series part numbers differ by color, features, insulation diameter and length - overall. Use the selection guide above to pick by color.
- How many TE Connectivity AMP Connectors 3240 Series part numbers are listed?
- 10 TE Connectivity AMP Connectors 3240 Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for TE Connectivity AMP Connectors 3240 Series?
- Request a quote (RFQ) for any TE Connectivity AMP Connectors 3240 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
