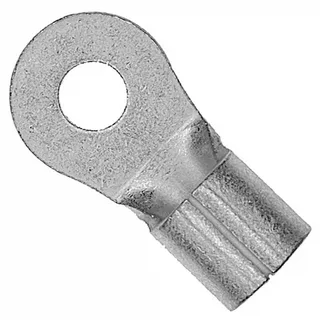

33460
TE Connectivity AMP Connectors
0.048\" (1.22mm)SolistrandBulk
Ref. price$0.6100
Lead time on requestGet quote ›
TE Connectivity AMP Connectors 3346 Series
8 variants · TE Connectivity AMP Connectors
About the TE Connectivity AMP Connectors 3346 Series
The TE Connectivity AMP Connectors 3346 Series series groups 8 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common color of -, contact finish of Tin and contact material of Copper. Variants differ by length - overall, stud (Tab size) and thickness, so you can match the exact length - overall your application requires using the selection guide below. All listed TE Connectivity AMP Connectors 3346 Series part numbers are active and orderable.
Select a variant by
- Length - overall
- 0.933\" (23.70mm) · 1.168\" (29.67mm) · 1.246\" (31.65mm) · 1.314\" (33.38mm)
- Stud (Tab size)
- 1/4 Stud · 3/8 Stud · 5/16 Stud · 10 Stud
- Thickness
- 0.048\" (1.22mm) · 0.057\" (1.45mm) · 0.070\" (1.78mm)
- Width - outer edges
- 0.469\" (11.91mm) · 0.594\" (15.09mm) · 0.625\" (15.88mm) · 0.656\" (16.66mm)
- Wire gauge
- 4 AWG · 6 AWG · 8 AWG
Shared specifications
- Color
- -
- Contact finish
- Tin
- Contact material
- Copper
- Features
- Brazed Seam, Serrated Termination
- Insulation
- Non-Insulated
- Insulation diameter
- -
- Material - insulation
- -
- Mounting type
- Free Hanging (In-Line)
- Package
- Bulk
- Terminal type
- Circular
- Termination
- Crimp
Variant comparison
| Parameter | 33460 | 33461 | 33462 | 33463 | 33465 | 33467 |
|---|---|---|---|---|---|---|
| Length - overall | 0.933\" (23.70mm) | 0.933\" (23.70mm) | 1.168\" (29.67mm) | 1.168\" (29.67mm) | 1.246\" (31.65mm) | 1.246\" (31.65mm) |
| Stud (Tab size) | 10 Stud | 1/4 Stud | 5/16 Stud | 3/8 Stud | 1/4 Stud | 3/8 Stud |
| Thickness | 0.048\" (1.22mm) | 0.048\" (1.22mm) | 0.048\" (1.22mm) | 0.048\" (1.22mm) | 0.057\" (1.45mm) | 0.057\" (1.45mm) |
| Width - outer edges | 0.469\" (11.91mm) | 0.469\" (11.91mm) | 0.594\" (15.09mm) | 0.594\" (15.09mm) | 0.625\" (15.88mm) | 0.625\" (15.88mm) |
| Wire gauge | 8 AWG | 8 AWG | 8 AWG | 8 AWG | 6 AWG | 6 AWG |
Request a quote on any TE Connectivity AMP Connectors 3346 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the TE Connectivity AMP Connectors 3346 Series variants differ?
- TE Connectivity AMP Connectors 3346 Series part numbers differ by length - overall, stud (Tab size), thickness and width - outer edges. Use the selection guide above to pick by length - overall.
- How many TE Connectivity AMP Connectors 3346 Series part numbers are listed?
- 8 TE Connectivity AMP Connectors 3346 Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for TE Connectivity AMP Connectors 3346 Series?
- Request a quote (RFQ) for any TE Connectivity AMP Connectors 3346 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
