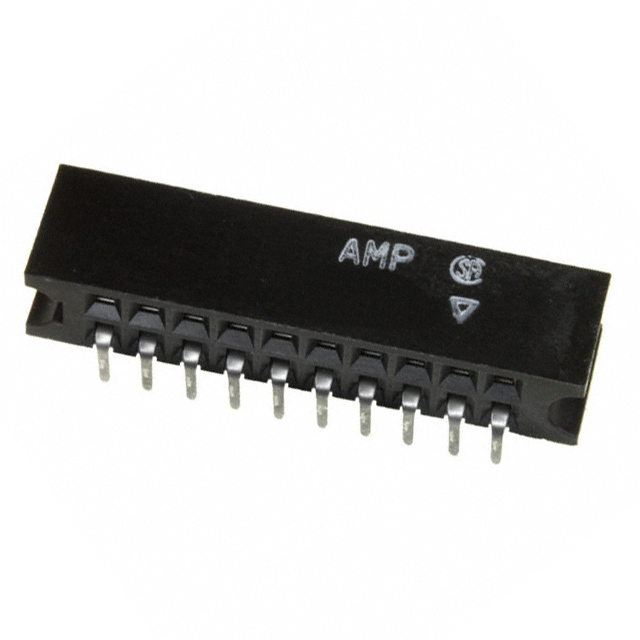

5-532955-3
TE Connectivity AMP Connectors
20Board to BoardAMPMODU Mod II
Ref. price$6.3100
Lead time on requestGet quote ›
TE Connectivity AMP Connectors 5532 Series
10 variants · TE Connectivity AMP Connectors
About the TE Connectivity AMP Connectors 5532 Series
The TE Connectivity AMP Connectors 5532 Series series groups 10 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common applications of -, connector type of Receptacle and contact finish - mating of Gold. Variants differ by contact finish thickness - mating and positions, so you can match the exact contact finish thickness - mating your application requires using the selection guide below. All listed TE Connectivity AMP Connectors 5532 Series part numbers are active and orderable.
Select a variant by
- Contact finish thickness - mating
- 15.0µin (0.38µm) · 30.0µin (0.76µm)
- Positions
- 16 · 20 · 24 · 30 · 36 · 50 · 60
Shared specifications
- Applications
- -
- Connector type
- Receptacle
- Contact finish - mating
- Gold
- Contact finish - post
- Tin
- Contact finish thickness - post
- 50.0µin (1.27µm)
- Contact length - post
- 0.115\" (2.92mm)
- Contact material
- Phosphor Bronze
- Contact shape
- Square
- Current rating
- -
- Fastening type
- Push-Pull
- Features
- Guide Pin Ears
- Gender
- Female Socket
Variant comparison
| Parameter | 5-532955-3 | 5-532955-4 | 5-532955-8 | 5-532955-9 | 5-532956-2 | 5-532956-3 |
|---|---|---|---|---|---|---|
| Contact finish thickness - mating | 15.0µin (0.38µm) | 15.0µin (0.38µm) | 15.0µin (0.38µm) | 15.0µin (0.38µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) |
| Positions | 20 | 24 | 50 | 60 | 16 | 20 |
