5557484-1
TE Connectivity AMP Connectors
Board Lock, Panel StopsShielded, EMI Finger-40°C ~ 85°C
Ref. price$3.9100
Lead time on requestGet quote ›
TE Connectivity AMP Connectors 5557 Series
13 variants · TE Connectivity AMP Connectors
About the TE Connectivity AMP Connectors 5557 Series
The TE Connectivity AMP Connectors 5557 Series series groups 13 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common connector type of Jack, contact finish of Gold and contact finish thickness of 50.0µin (1.27µm). Variants differ by features, housing material and number of ports, so you can match the exact features your application requires using the selection guide below. All listed TE Connectivity AMP Connectors 5557 Series part numbers are active and orderable.
Select a variant by
- Features
- Board Guide · Board Guide, Shorting · Board Lock, Keyed, Panel Stops · Board Lock, Panel Stops
- Housing material
- Polyamide (PA), Nylon · Polycyclohexylenedimethylene Terephthalate (PCT) · Polyester
- Number of ports
- 1 · 2 · 3 · 4 · 5 · 6 · 8
- Operating temperature
- -40°C ~ 85°C · -40°C~85°C
- Orientation
- 90° Angle (Right) · Vertical
- Ratings
- Cat3 · Cat4
- Shielding
- Shielded · Shielded, EMI Finger · Unshielded
- Tab direction
- Down · User Selectable
Shared specifications
- Connector type
- Jack
- Contact finish
- Gold
- Contact finish thickness
- 50.0µin (1.27µm)
- Contact material
- Phosphor Bronze
- Ingress protection
- -
- LED color
- Does Not Contain LED
- Mounting type
- Through Hole
- Number of positions (Contacts)
- 8p8c (RJ45, Ethernet)
- Package
- Tray
- Rows
- 1
- Termination
- Solder
Variant comparison

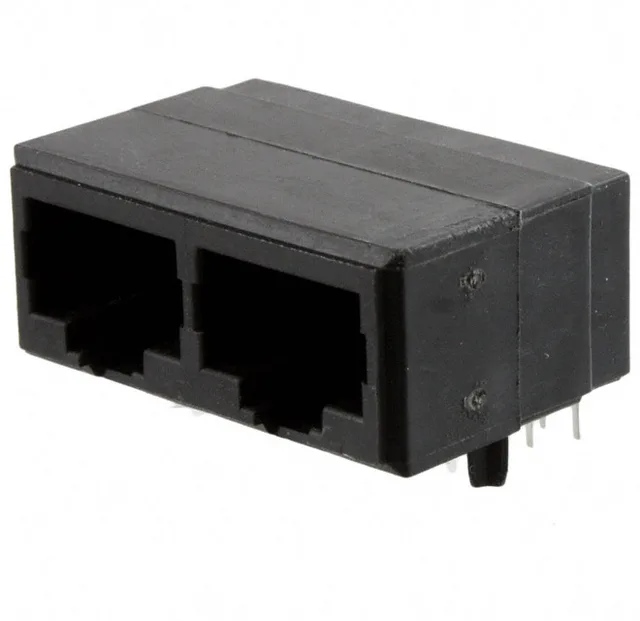

| Parameter | 5557484-1 | 5557560-1 | 5557561-1 | 5557562-1 | 5557563-1 | 5557566-1 |
|---|---|---|---|---|---|---|
| Features | Board Lock, Panel Stops | Board Guide | Board Guide | Board Guide | Board Guide | Board Guide |
| Housing material | Polyester | Polyamide (PA), Nylon | Polyamide (PA), Nylon | Polyamide (PA), Nylon | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
| Number of ports | 1 | 2 | 3 | 4 | 5 | 8 |
| Operating temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C~85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Orientation | Vertical | 90° Angle (Right) | 90° Angle (Right) | 90° Angle (Right) | 90° Angle (Right) | 90° Angle (Right) |
| Ratings | Cat3 | Cat4 | Cat4 | Cat4 | Cat4 | Cat4 |
| Shielding | Shielded, EMI Finger | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| Tab direction | User Selectable | Down | Down | Down | Down | Down |
Request a quote on any TE Connectivity AMP Connectors 5557 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the TE Connectivity AMP Connectors 5557 Series variants differ?
- TE Connectivity AMP Connectors 5557 Series part numbers differ by features, housing material, number of ports and operating temperature. Use the selection guide above to pick by features.
- How many TE Connectivity AMP Connectors 5557 Series part numbers are listed?
- 13 TE Connectivity AMP Connectors 5557 Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for TE Connectivity AMP Connectors 5557 Series?
- Request a quote (RFQ) for any TE Connectivity AMP Connectors 5557 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
