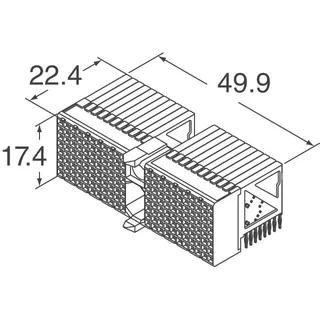

5646346-1
TE Connectivity AMP Connectors
1768Tube
Ref. price$11.22
Lead time on requestGet quote ›
TE Connectivity AMP Connectors 5646 Series
19 variants · TE Connectivity AMP Connectors
About the TE Connectivity AMP Connectors 5646 Series
The TE Connectivity AMP Connectors 5646 Series series groups 19 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common current rating of 1.5 A, operating temperature of -55°C ~ 125°C and pitch of 0.079\" (2.00mm). Variants differ by connector type, mounting type and package, so you can match the exact connector type your application requires using the selection guide below. All listed TE Connectivity AMP Connectors 5646 Series part numbers are active and orderable.
Select a variant by
- Connector type
- Header, Male Pins · Receptacle, Female Sockets
- Mounting type
- Board Edge, Through Hole, Right Angle · Through Hole · Through Hole, Right Angle
- Package
- Box · Bulk · Tube
- Positions
- 88 · 95 · 110 · 110 (88 + 22 Ground) · 176 · 200 · 250 (200 + 50 Ground)
- Rows
- 5 · 8 · 8 + 2
- Voltage rating
- 500Vrms · 750Vrms
- Features
- Board Guide · Upper Shield
- Connector usage
- Backplane · CompactPCI RJ5
Shared specifications
- Current rating
- 1.5 A
- Operating temperature
- -55°C ~ 125°C
- Pitch
- 0.079\" (2.00mm)
- Termination
- Press-Fit
Variant comparison
| Parameter | 5646346-1 | 5646347-1 | 5646357-1 | 5646442-1 | 5646445-1 | 5646446-1 |
|---|---|---|---|---|---|---|
| Connector type | Header, Male Pins | Header, Male Pins | Header, Male Pins | Receptacle, Female Sockets | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Mounting type | Through Hole | Through Hole | Through Hole | Board Edge, Through Hole, Right Angle | Board Edge, Through Hole, Right Angle | Board Edge, Through Hole, Right Angle |
| Package | Tube | Tube | Tube | Box | Tube | Bulk |
| Positions | 176 | 200 | 250 (200 + 50 Ground) | 176 | 200 | 88 |
| Rows | 8 | 8 | 8 + 2 | 8 | 8 | 8 |
| Voltage rating | 750Vrms | 750Vrms | 750Vrms | 750Vrms | 750Vrms | 750Vrms |
| Features | Board Guide | — | — | — | — | — |
| Connector usage | Backplane | Backplane | Backplane | — | — | — |
Request a quote on any TE Connectivity AMP Connectors 5646 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the TE Connectivity AMP Connectors 5646 Series variants differ?
- TE Connectivity AMP Connectors 5646 Series part numbers differ by connector type, mounting type, package and positions. Use the selection guide above to pick by connector type.
- How many TE Connectivity AMP Connectors 5646 Series part numbers are listed?
- 19 TE Connectivity AMP Connectors 5646 Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for TE Connectivity AMP Connectors 5646 Series?
- Request a quote (RFQ) for any TE Connectivity AMP Connectors 5646 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
