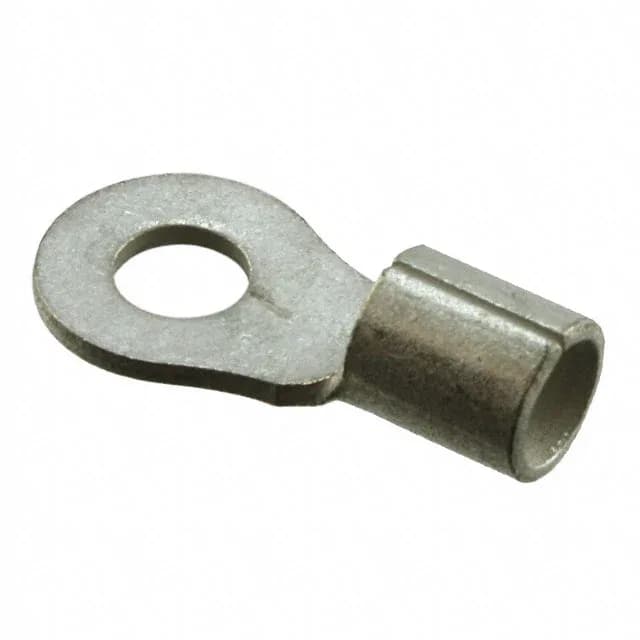

8-32957-1
TE Connectivity AMP Connectors
BluePlasti-GripBulk
Ref. price$0.6100
Lead time on requestGet quote
TE Connectivity AMP Connectors 8329 Series
2 variants · TE Connectivity AMP Connectors
About the TE Connectivity AMP Connectors 8329 Series
The TE Connectivity AMP Connectors 8329 Series series groups 2 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common contact finish of Tin, contact material of Copper and mounting of Free Hanging (In-Line). Variants differ by color, features and insulation, so you can match the exact color your application requires using the selection guide below. All listed TE Connectivity AMP Connectors 8329 Series part numbers are active and orderable.
Select a variant by
- Color
- - · Blue
- Features
- Brazed Seam, Serrated Termination · Serrated Termination
- Insulation
- Insulated · Non-Insulated
- Insulation diameter
- - · 0.105\" ~ 0.145\" (2.67mm ~ 3.68mm)
- Length - overall
- 0.715\" (18.16mm) · 0.765\" (19.43mm)
- Material - insulation
- - · Poly-Vinyl Chloride (PVC)
- Stud (Tab size)
- 6 Stud · 8 Stud
Shared specifications
- Contact finish
- Tin
- Contact material
- Copper
- Mounting
- Free Hanging (In-Line)
- Package
- Bulk
- Terminal type
- Circular
- Termination
- Crimp
Variant comparison
| Parameter | 8-32957-1 | 8-32994-2 |
|---|---|---|
| Color | Blue | - |
| Features | Serrated Termination | Brazed Seam, Serrated Termination |
| Insulation | Insulated | Non-Insulated |
| Insulation diameter | 0.105\" ~ 0.145\" (2.67mm ~ 3.68mm) | - |
| Length - overall | 0.715\" (18.16mm) | 0.765\" (19.43mm) |
| Material - insulation | Poly-Vinyl Chloride (PVC) | - |
| Stud (Tab size) | 6 Stud | 8 Stud |
Request a quote on any TE Connectivity AMP Connectors 8329 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
