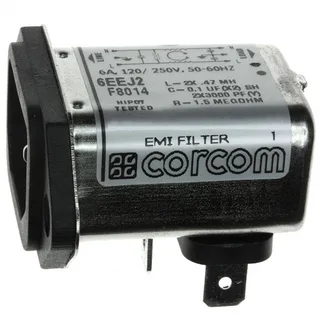

1-6609000-3
TE Connectivity Corcom Filters
EEA, CorcomQuick Connect - 0.250\" (6.3mm)Bulk
Ref. price$13.7100
Lead time on requestGet quote ›
TE Connectivity Corcom Filters 1660900 Series
17 variants · TE Connectivity Corcom Filters
About the TE Connectivity Corcom Filters 1660900 Series
The TE Connectivity Corcom Filters 1660900 Series series groups 17 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common accomodates a fuse of No, approval agency of CSA, UL, VDE and connector type of Receptacle, Male Blades. Variants differ by current rating - appliance inlet, current rating - filter and features, so you can match the exact current rating - appliance inlet your application requires using the selection guide below. The range mixes active and legacy part numbers, so you can source both current TE Connectivity Corcom Filters 1660900 Series variants and discontinued ones from a single page.
Select a variant by
- Current rating - appliance inlet
- 6A · 10A · 15A
- Current rating - filter
- 6A · 10A · 15A
- Features
- - · Front or Rear Side Mount
- Mounting type
- Panel Mount, Flange · Panel Mount, Flange, Right Angle · Panel Mount, Flange; Through Hole, Right Angle · Panel Mount, Snap-In
- Panel cutout
- - · Rectangular - 30.48mm x 22.86mm · Variable Size
- Panel thickness
- - · 0.031\" ~ 0.068\" (0.79mm ~ 1.73mm)
- Termination
- Quick Connect - 0.250\" (6.3mm) · Solder
Shared specifications
- Accomodates a fuse
- No
- Approval agency
- CSA, UL, VDE
- Connector type
- Receptacle, Male Blades
- Current rating - circuit breaker
- -
- Filter type
- Filtered (EMI, RFI) - Commercial
- Fuse holder, drawer
- -
- Ingress protection
- -
- Material flammability rating
- -
- Package
- Bulk
- Positions
- 3
- Switch features
- -
- Voltage rating - appliance inlet
- 120/250VAC
Variant comparison
| Parameter | 1-6609000-3 | 1-6609001-0 | 1-6609001-1 | 1-6609005-0 | 1-6609005-5 | 1-6609006-0 |
|---|---|---|---|---|---|---|
| Current rating - appliance inlet | 15A | 10A | 10A | 15A | 15A | 6A |
| Current rating - filter | 15A | 10A | 10A | 15A | 15A | 6A |
| Features | - | Front or Rear Side Mount | Front or Rear Side Mount | - | - | - |
| Mounting type | Panel Mount, Flange | Panel Mount, Flange | Panel Mount, Flange, Right Angle | Panel Mount, Snap-In | Panel Mount, Snap-In | Panel Mount, Flange, Right Angle |
| Panel cutout | - | Variable Size | Variable Size | Variable Size | Variable Size | Rectangular - 30.48mm x 22.86mm |
| Panel thickness | - | - | - | 0.031\" ~ 0.068\" (0.79mm ~ 1.73mm) | 0.031\" ~ 0.068\" (0.79mm ~ 1.73mm) | - |
| Termination | Quick Connect - 0.250\" (6.3mm) | Quick Connect - 0.250\" (6.3mm) | Quick Connect - 0.250\" (6.3mm) | Quick Connect - 0.250\" (6.3mm) | Quick Connect - 0.250\" (6.3mm) | Quick Connect - 0.250\" (6.3mm) |
Request a quote on any TE Connectivity Corcom Filters 1660900 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the TE Connectivity Corcom Filters 1660900 Series variants differ?
- TE Connectivity Corcom Filters 1660900 Series part numbers differ by current rating - appliance inlet, current rating - filter, features and mounting type. Use the selection guide above to pick by current rating - appliance inlet.
- How many TE Connectivity Corcom Filters 1660900 Series part numbers are listed?
- 17 TE Connectivity Corcom Filters 1660900 Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for TE Connectivity Corcom Filters 1660900 Series?
- Request a quote (RFQ) for any TE Connectivity Corcom Filters 1660900 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
