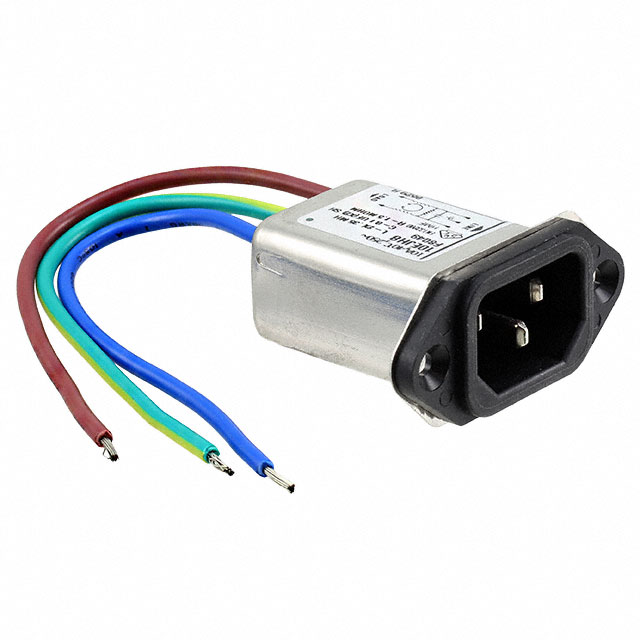

3-6609006-2
TE Connectivity Corcom Filters
EEJ, CorcomFront or Rear Side MountVariable Size
Ref. price$14.2000
Lead time on requestGet quote ›
TE Connectivity Corcom Filters 3660 Series
12 variants · TE Connectivity Corcom Filters
About the TE Connectivity Corcom Filters 3660 Series
The TE Connectivity Corcom Filters 3660 Series series groups 12 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common accomodates a fuse of No, approval agency of CSA, UL, VDE and connector type of Receptacle, Male Blades. Variants differ by current rating - appliance inlet, current rating - filter and features, so you can match the exact current rating - appliance inlet your application requires using the selection guide below. All listed TE Connectivity Corcom Filters 3660 Series part numbers are active and orderable.
Select a variant by
- Current rating - appliance inlet
- 1A · 6A · 10A · 15A
- Current rating - filter
- 1A · 6A · 10A · 15A
- Features
- - · Front or Rear Side Mount · Shielded
- Filter type
- Filtered (EMI, RFI) - Commercial · Filtered (EMI, RFI) - Commercial, Medical
- Mounting type
- Panel Mount, Flange · Panel Mount, Flange; Through Hole, Right Angle · Panel Mount, Snap-In
- Panel cutout
- Rectangular - 30.48mm x 22.86mm · Variable Size
- Panel thickness
- - · 0.031\" ~ 0.068\" (0.79mm ~ 1.73mm)
Shared specifications
- Accomodates a fuse
- No
- Approval agency
- CSA, UL, VDE
- Connector type
- Receptacle, Male Blades
- Current rating - circuit breaker
- -
- Fuse holder, drawer
- -
- Ingress protection
- -
- Material flammability rating
- -
- Package
- Bulk
- Positions
- 3
- Switch features
- -
Variant comparison
| Parameter | 3-6609006-2 | 3-6609006-5 | 3-6609006-7 | 3-6609006-9 | 3-6609008-0 | 3-6609008-1 |
|---|---|---|---|---|---|---|
| Current rating - appliance inlet | 1A | 10A | 1A | 6A | 6A | 10A |
| Current rating - filter | 1A | 10A | 1A | 6A | 6A | 10A |
| Features | Front or Rear Side Mount | - | - | - | Front or Rear Side Mount | Front or Rear Side Mount |
| Filter type | Filtered (EMI, RFI) - Commercial | Filtered (EMI, RFI) - Commercial | Filtered (EMI, RFI) - Commercial | Filtered (EMI, RFI) - Commercial | Filtered (EMI, RFI) - Commercial, Medical | Filtered (EMI, RFI) - Commercial |
| Mounting type | Panel Mount, Flange | Panel Mount, Flange | Panel Mount, Snap-In | Panel Mount, Snap-In | Panel Mount, Flange | Panel Mount, Flange |
| Panel cutout | Variable Size | Rectangular - 30.48mm x 22.86mm | Variable Size | Rectangular - 30.48mm x 22.86mm | Variable Size | Variable Size |
| Panel thickness | - | - | 0.031\" ~ 0.068\" (0.79mm ~ 1.73mm) | 0.031\" ~ 0.068\" (0.79mm ~ 1.73mm) | - | - |
Request a quote on any TE Connectivity Corcom Filters 3660 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the TE Connectivity Corcom Filters 3660 Series variants differ?
- TE Connectivity Corcom Filters 3660 Series part numbers differ by current rating - appliance inlet, current rating - filter, features and filter type. Use the selection guide above to pick by current rating - appliance inlet.
- How many TE Connectivity Corcom Filters 3660 Series part numbers are listed?
- 12 TE Connectivity Corcom Filters 3660 Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for TE Connectivity Corcom Filters 3660 Series?
- Request a quote (RFQ) for any TE Connectivity Corcom Filters 3660 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
