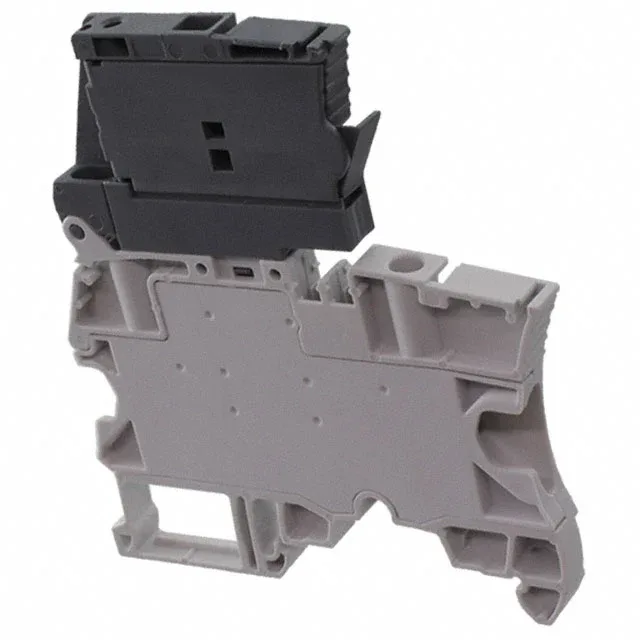

TE Connectivity ENTRELEC 1SNK506412R0000
MPN1SNK506412R0000
Active
AUT SNK SCREW
$15.11Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesSNK, ZS
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Disconnect |
| Series | SNK, ZS |
| Fuse type | 5mm x 20mm |
| Disconnect type | Fuse |
| Voltage - UL | 150V |
| Voltage - IEC | 500V |
| Current - UL | 10 A |
| Current - IEC | 6.3 A |
| Terminal - width | 6.0mm |
| Wire gauge or range - AWG | 10-24 AWG |
| Wire gauge or range - mm2 | 0.2-4mm² |
| Color | Gray |
All specifications
| Parameter | Value |
|---|---|
| Material - insulation | Polyamide (PA), Nylon |
| Material flammability rating | UL94 V-0 |
| Package | Box |
| Features | LED Indicator |
| Number of levels | 1 |
| Stripping length | 10.5mm |
| Termination style | Screw |
| Positions | 2 |
