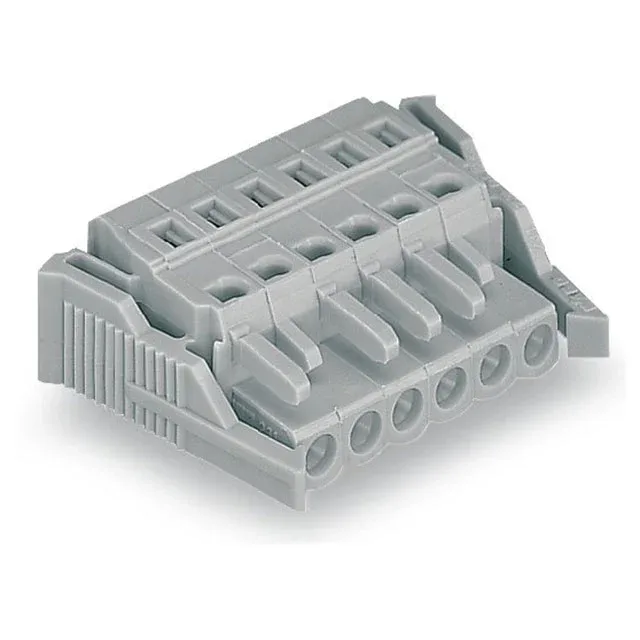

231-103/037-000
WAGO Corporation
3Gray16A
Ref. price$5.8900
Lead time on requestGet quote ›
WAGO Corporation 2311 Series
14 variants · WAGO Corporation
About the WAGO Corporation 2311 Series
The WAGO Corporation 2311 Series series groups 14 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common contact mating finish of Tin, ingress protection of - and material flammability rating of UL94 V-0. Variants differ by color, contact material and contact tail length, so you can match the exact color your application requires using the selection guide below. All listed WAGO Corporation 2311 Series part numbers are active and orderable.
Select a variant by
- Color
- Black · Gray
- Contact material
- Copper Alloy · Electrolytic Copper
- Contact tail length
- - · 0.094\" (2.40mm) · 0.197\" (5.00mm)
- Current - IEC
- 12A · 16A
- Current - UL
- 10 A · 15 A
- Features
- - · Lever Actuated, Retention Latches (Non-Wire Side) · Retention Latches (Non-Wire Side)
- Header orientation
- - · Vertical
- Housing material
- Polyamide (PA66), Nylon 6/6 · Polyphthalamide (PPA), Glass Filled
Shared specifications
- Contact mating finish
- Tin
- Ingress protection
- -
- Material flammability rating
- UL94 V-0
- Number of levels
- 1
- Package
- Box
- Pitch
- 0.197\" (5.00mm)
- Screw size
- -
- Torque - screw
- -
- Voltage - UL
- 600 V
Variant comparison
| Parameter | 231-103/037-000 | 231-104/026-000 | 231-104/037-000 | 231-106/026-000 | 231-107/026-000 | 231-108/026-000 |
|---|---|---|---|---|---|---|
| Color | Gray | Gray | Gray | Gray | Gray | Gray |
| Contact material | Copper Alloy | Copper Alloy | Copper Alloy | Copper Alloy | Copper Alloy | Copper Alloy |
| Contact tail length | - | - | - | - | - | - |
| Current - IEC | 16A | 16A | 16A | 16A | 16A | 16A |
| Current - UL | 15 A | 15 A | 15 A | 15 A | 15 A | 15 A |
| Features | Lever Actuated, Retention Latches (Non-Wire Side) | Retention Latches (Non-Wire Side) | Lever Actuated, Retention Latches (Non-Wire Side) | Retention Latches (Non-Wire Side) | Retention Latches (Non-Wire Side) | Retention Latches (Non-Wire Side) |
| Header orientation | - | - | - | - | - | - |
| Housing material | Polyamide (PA66), Nylon 6/6 | Polyamide (PA66), Nylon 6/6 | Polyamide (PA66), Nylon 6/6 | Polyamide (PA66), Nylon 6/6 | Polyamide (PA66), Nylon 6/6 | Polyamide (PA66), Nylon 6/6 |
Request a quote on any WAGO Corporation 2311 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the WAGO Corporation 2311 Series variants differ?
- WAGO Corporation 2311 Series part numbers differ by color, contact material, contact tail length and current - IEC. Use the selection guide above to pick by color.
- How many WAGO Corporation 2311 Series part numbers are listed?
- 14 WAGO Corporation 2311 Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for WAGO Corporation 2311 Series?
- Request a quote (RFQ) for any WAGO Corporation 2311 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
