Weidmüller 1288 Series
2 variants · Weidmüller
About the Weidmüller Weidmüller 1288 Series series
The Weidmüller Weidmüller 1288 Series series groups 2 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common color of Black and package of Bulk. Variants differ by current - UL, number of levels and positions per level, so you can match the exact current - UL your application requires using the selection guide below. All listed Weidmüller 1288 Series part numbers are active and orderable.
Select a variant by
- Current - UL
- 10 A · 30 A
- Number of levels
- 1 · 2
- Positions per level
- 1 · 2
- Voltage - UL
- 150 V · 300 V
Variant comparison
| Parameter | 1288590000 | 1288980000 |
|---|---|---|
| Current - UL | 30 A | 10 A |
| Number of levels | 1 | 2 |
| Positions per level | 1 | 2 |
| Voltage - UL | 300 V | 150 V |
Shared specifications
- Color
- Black
- Package
- Bulk
Request a quote on any Weidmüller 1288 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the Weidmüller Weidmüller 1288 Series variants differ?
- Weidmüller 1288 Series part numbers differ by current - UL, number of levels, positions per level and voltage - UL. Use the selection guide above to pick by current - UL.
- How many Weidmüller Weidmüller 1288 Series part numbers are listed?
- 2 Weidmüller Weidmüller 1288 Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for Weidmüller Weidmüller 1288 Series?
- Request a quote (RFQ) for any Weidmüller 1288 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
All variants

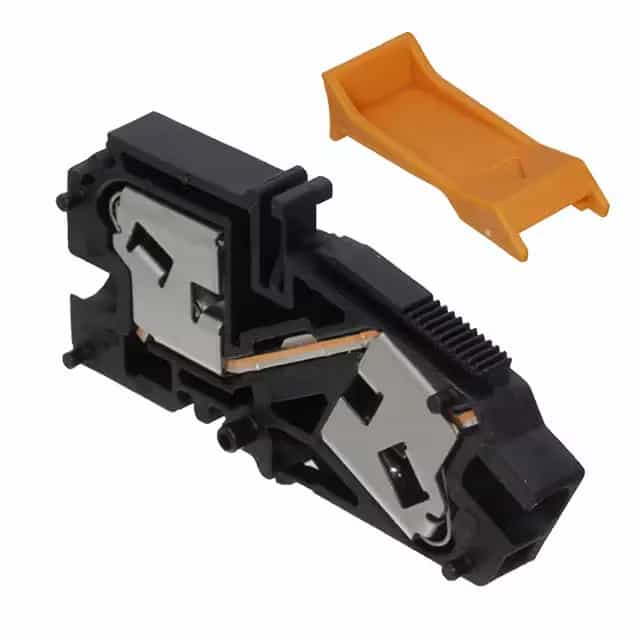

Color: Black · Width: 0.201\" (5.10mm) · Series: Omnimate Power PGK · Package: Bulk · Wire gauge: 10-24 AWG · Current - UL: 30 A · Voltage - UL: 300 V · Panel thickness: 0.060 ~ 0.120\" (1.5mm ~ 3.0mm) · Number of levels: 1 · Panel mount type: Snap Fit · Positions per level: 1 · Rear panel wire connection: Push In Clamp - Wire Entry 90° to Panel · Front panel wire connection: Push In Clamp - Wire Entry Angled to Panel
Type: Header, Male Pins, Shrouded (4 Side) · Color: Black · Pitch: 0.138\" (3.50mm) · Series: Omnimate S2C · Package: Bulk · Current - UL: 10 A · Voltage - UL: 150 V · Current - IEC: 13.4A · Mounting type: Through Hole · Voltage - IEC: 200 V · Contact material: Copper Alloy · Housing material: Liquid Crystal Polymer (LCP), Glass Filled · Number of levels: 2 · Insulation height: 0.425\" (10.80mm) · Termination style: Solder · Header orientation: 90°, Right Angle · Ingress protection: IP20 · Contact tail length: 0.126\" (3.20mm) · Positions: 4 · Positions per level: 2 · Contact mating finish: Tin · Operating temperature: -50°C ~ 120°C · Material flammability rating: UL94 V-0
