Weidmüller 1330 Series
15 variants · Weidmüller
About the Weidmüller Weidmüller 1330 Series series
The Weidmüller Weidmüller 1330 Series series groups 15 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common color of Orange, contact material - plating of Copper Alloy - Tin Plated and current of 20 A. Variants differ by mating orientation, pitch and positions per level, so you can match the exact mating orientation your application requires using the selection guide below. All listed Weidmüller 1330 Series part numbers are active and orderable.
Select a variant by
- Mating orientation
- Horizontal with Board · Vertical with Board
- Pitch
- 0.197\" (5.00mm) · 0.200\" (5.08mm)
- Positions per level
- 2 · 3 · 4 · 6 · 8 · 9 · 10 · 11
Variant comparison
| Parameter | 1330180000 | 1330190000 | 1330200000 | 1330710000 | 1330720000 | 1330730000 |
|---|---|---|---|---|---|---|
| Mating orientation | Vertical with Board | Vertical with Board | Vertical with Board | Horizontal with Board | Horizontal with Board | Horizontal with Board |
| Pitch | 0.197\" (5.00mm) | 0.197\" (5.00mm) | 0.197\" (5.00mm) | 0.200\" (5.08mm) | 0.200\" (5.08mm) | 0.200\" (5.08mm) |
| Positions per level | 2 | 3 | 4 | 2 | 3 | 4 |
Shared specifications
- Color
- Orange
- Contact material - plating
- Copper Alloy - Tin Plated
- Current
- 20 A
- Features
- Interlocking (Side)
- Housing material
- Thermoplastic, Wemid
- Mounting type
- Through Hole
- Number of levels
- 1
- Operating temperature
- -50°C ~ 120°C
- Package
- Bulk
- Voltage
- 300 V
- Wire gauge
- 12-24 AWG
- Wire termination
- Screwless - Leg Spring, Push-In Spring
Request a quote on any Weidmüller 1330 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the Weidmüller Weidmüller 1330 Series variants differ?
- Weidmüller 1330 Series part numbers differ by mating orientation, pitch and positions per level. Use the selection guide above to pick by mating orientation.
- How many Weidmüller Weidmüller 1330 Series part numbers are listed?
- 15 Weidmüller Weidmüller 1330 Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for Weidmüller Weidmüller 1330 Series?
- Request a quote (RFQ) for any Weidmüller 1330 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
All variants
Color: Orange · Pitch: 0.197\" (5.00mm) · Series: Omnimate LMF · Current: 20 A · Package: Bulk · Voltage: 300 V · Features: Interlocking (Side) · Wire gauge: 12-24 AWG · Mounting type: Through Hole · Housing material: Thermoplastic, Wemid · Number of levels: 1 · Wire termination: Screwless - Leg Spring, Push-In Spring · Mating orientation: Vertical with Board · Positions per level: 2 · Operating temperature: -50°C ~ 120°C · Contact material - plating: Copper Alloy - Tin Plated
Color: Orange · Pitch: 0.197\" (5.00mm) · Series: Omnimate LMF · Current: 20 A · Package: Bulk · Voltage: 300 V · Features: Interlocking (Side) · Wire gauge: 12-24 AWG · Mounting type: Through Hole · Housing material: Thermoplastic, Wemid · Number of levels: 1 · Wire termination: Screwless - Leg Spring, Push-In Spring · Mating orientation: Vertical with Board · Positions per level: 3 · Operating temperature: -50°C ~ 120°C · Contact material - plating: Copper Alloy - Tin Plated
Color: Orange · Pitch: 0.197\" (5.00mm) · Series: Omnimate LMF · Current: 20 A · Package: Bulk · Voltage: 300 V · Features: Interlocking (Side) · Wire gauge: 12-24 AWG · Mounting type: Through Hole · Housing material: Thermoplastic, Wemid · Number of levels: 1 · Wire termination: Screwless - Leg Spring, Push-In Spring · Mating orientation: Vertical with Board · Positions per level: 4 · Operating temperature: -50°C ~ 120°C · Contact material - plating: Copper Alloy - Tin Plated
Color: Orange · Pitch: 0.200\" (5.08mm) · Series: Omnimate LMF · Current: 20 A · Package: Bulk · Voltage: 300 V · Features: Interlocking (Side) · Wire gauge: 12-24 AWG · Mounting type: Through Hole · Housing material: Thermoplastic, Wemid · Number of levels: 1 · Wire termination: Screwless - Leg Spring, Push-In Spring · Mating orientation: Horizontal with Board · Positions per level: 2 · Operating temperature: -50°C ~ 120°C · Contact material - plating: Copper Alloy - Tin Plated
Color: Orange · Pitch: 0.200\" (5.08mm) · Series: Omnimate LMF · Current: 20 A · Package: Bulk · Voltage: 300 V · Features: Interlocking (Side) · Wire gauge: 12-24 AWG · Mounting type: Through Hole · Housing material: Thermoplastic, Wemid · Number of levels: 1 · Wire termination: Screwless - Leg Spring, Push-In Spring · Mating orientation: Horizontal with Board · Positions per level: 3 · Operating temperature: -50°C ~ 120°C · Contact material - plating: Copper Alloy - Tin Plated
Color: Orange · Pitch: 0.200\" (5.08mm) · Series: Omnimate LMF · Current: 20 A · Package: Bulk · Voltage: 300 V · Features: Interlocking (Side) · Wire gauge: 12-24 AWG · Mounting type: Through Hole · Housing material: Thermoplastic, Wemid · Number of levels: 1 · Wire termination: Screwless - Leg Spring, Push-In Spring · Mating orientation: Horizontal with Board · Positions per level: 4 · Operating temperature: -50°C ~ 120°C · Contact material - plating: Copper Alloy - Tin Plated
Color: Orange · Pitch: 0.200\" (5.08mm) · Series: Omnimate LMF · Current: 20 A · Package: Bulk · Voltage: 300 V · Features: Interlocking (Side) · Wire gauge: 12-24 AWG · Mounting type: Through Hole · Housing material: Thermoplastic, Wemid · Number of levels: 1 · Wire termination: Screwless - Leg Spring, Push-In Spring · Mating orientation: Horizontal with Board · Positions per level: 6 · Operating temperature: -50°C ~ 120°C · Contact material - plating: Copper Alloy - Tin Plated
Color: Orange · Pitch: 0.200\" (5.08mm) · Series: Omnimate LMF · Current: 20 A · Package: Bulk · Voltage: 300 V · Features: Interlocking (Side) · Wire gauge: 12-24 AWG · Mounting type: Through Hole · Housing material: Thermoplastic, Wemid · Number of levels: 1 · Wire termination: Screwless - Leg Spring, Push-In Spring · Mating orientation: Horizontal with Board · Positions per level: 8 · Operating temperature: -50°C ~ 120°C · Contact material - plating: Copper Alloy - Tin Plated

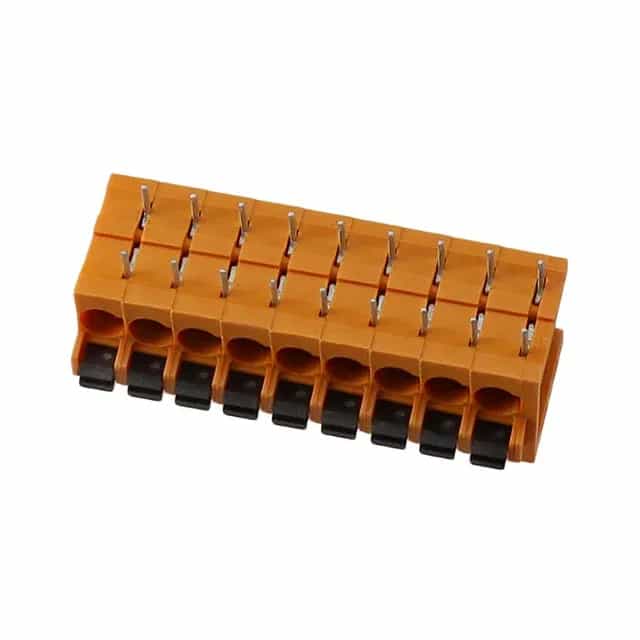

Color: Orange · Pitch: 0.200\" (5.08mm) · Series: Omnimate LMF · Current: 20 A · Package: Bulk · Voltage: 300 V · Features: Interlocking (Side) · Wire gauge: 12-24 AWG · Mounting type: Through Hole · Housing material: Thermoplastic, Wemid · Number of levels: 1 · Wire termination: Screwless - Leg Spring, Push-In Spring · Mating orientation: Horizontal with Board · Positions per level: 9 · Operating temperature: -50°C ~ 120°C · Contact material - plating: Copper Alloy - Tin Plated
Color: Orange · Pitch: 0.200\" (5.08mm) · Series: Omnimate LMF · Current: 20 A · Package: Bulk · Voltage: 300 V · Features: Interlocking (Side) · Wire gauge: 12-24 AWG · Mounting type: Through Hole · Housing material: Thermoplastic, Wemid · Number of levels: 1 · Wire termination: Screwless - Leg Spring, Push-In Spring · Mating orientation: Horizontal with Board · Positions per level: 10 · Operating temperature: -50°C ~ 120°C · Contact material - plating: Copper Alloy - Tin Plated
Color: Orange · Pitch: 0.200\" (5.08mm) · Series: Omnimate LMF · Current: 20 A · Package: Bulk · Voltage: 300 V · Features: Interlocking (Side) · Wire gauge: 12-24 AWG · Mounting type: Through Hole · Housing material: Thermoplastic, Wemid · Number of levels: 1 · Wire termination: Screwless - Leg Spring, Push-In Spring · Mating orientation: Horizontal with Board · Positions per level: 11 · Operating temperature: -50°C ~ 120°C · Contact material - plating: Copper Alloy - Tin Plated
Color: Orange · Pitch: 0.197\" (5.00mm) · Series: Omnimate LMFS · Current: 20 A · Package: Bulk · Voltage: 300 V · Features: Interlocking (Side) · Wire gauge: 12-24 AWG · Mounting type: Through Hole · Housing material: Thermoplastic, Wemid · Number of levels: 1 · Wire termination: Screwless - Leg Spring, Push-In Spring · Mating orientation: Vertical with Board · Positions per level: 3 · Operating temperature: -50°C ~ 120°C · Contact material - plating: Copper Alloy - Tin Plated
Color: Orange · Pitch: 0.197\" (5.00mm) · Series: Omnimate LMFS · Current: 20 A · Package: Bulk · Voltage: 300 V · Features: Interlocking (Side) · Wire gauge: 12-24 AWG · Mounting type: Through Hole · Housing material: Thermoplastic, Wemid · Number of levels: 1 · Wire termination: Screwless - Leg Spring, Push-In Spring · Mating orientation: Vertical with Board · Positions per level: 6 · Operating temperature: -50°C ~ 120°C · Contact material - plating: Copper Alloy - Tin Plated
Color: Orange · Pitch: 0.197\" (5.00mm) · Series: Omnimate LM · Current: 20 A · Package: Bulk · Voltage: 300 V · Features: Interlocking (Side) · Wire gauge: 12-24 AWG · Mounting type: Through Hole · Housing material: Polyamide (PA), Nylon · Number of levels: 1 · Wire termination: Screwless - Leg Spring, Push-In Spring · Mating orientation: Vertical with Board · Positions per level: 8 · Operating temperature: -50°C ~ 120°C · Contact material - plating: Copper Alloy - Tin Plated
Color: Orange · Pitch: 0.200\" (5.08mm) · Series: Omnimate LM · Current: 20 A · Package: Bulk · Voltage: 300 V · Features: Interlocking (Side) · Wire gauge: 12-24 AWG · Mounting type: Through Hole · Housing material: Polyamide (PA), Nylon · Number of levels: 1 · Wire termination: Screwless - Leg Spring, Push-In Spring · Mating orientation: Horizontal with Board · Positions per level: 7 · Operating temperature: -50°C ~ 120°C · Contact material - plating: Copper Alloy - Tin Plated
