Weidmüller 1331 Series
7 variants · Weidmüller
About the Weidmüller Weidmüller 1331 Series series
The Weidmüller Weidmüller 1331 Series series groups 7 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common color of Orange, contact material - plating of Copper Alloy - Tin Plated and current of 20 A. Variants differ by housing material, mating orientation and pitch, so you can match the exact housing material your application requires using the selection guide below. All listed Weidmüller 1331 Series part numbers are active and orderable.
Select a variant by
- Housing material
- Polyamide (PA), Nylon · Thermoplastic, Wemid
- Mating orientation
- Horizontal with Board · Vertical with Board
- Pitch
- 0.197\" (5.00mm) · 0.200\" (5.08mm)
- Positions per level
- 2 · 3 · 7 · 9 · 12 · 18
Variant comparison
| Parameter | 1331880000 | 1331080000 | 1331700000 | 1331710000 | 1331750000 | 1331780000 |
|---|---|---|---|---|---|---|
| Housing material | Thermoplastic, Wemid | Thermoplastic, Wemid | Thermoplastic, Wemid | Thermoplastic, Wemid | Polyamide (PA), Nylon | Thermoplastic, Wemid |
| Mating orientation | Horizontal with Board | Vertical with Board | Horizontal with Board | Horizontal with Board | Horizontal with Board | Horizontal with Board |
| Pitch | 0.197\" (5.00mm) | 0.200\" (5.08mm) | 0.197\" (5.00mm) | 0.197\" (5.00mm) | 0.197\" (5.00mm) | 0.197\" (5.00mm) |
| Positions per level | 18 | 2 | 2 | 3 | 7 | 9 |
Shared specifications
- Color
- Orange
- Contact material - plating
- Copper Alloy - Tin Plated
- Current
- 20 A
- Features
- Interlocking (Side)
- Mounting type
- Through Hole
- Number of levels
- 1
- Operating temperature
- -50°C ~ 120°C
- Package
- Bulk
- Voltage
- 300 V
- Wire gauge
- 12-24 AWG
- Wire termination
- Screwless - Leg Spring, Push-In Spring
Request a quote on any Weidmüller 1331 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the Weidmüller Weidmüller 1331 Series variants differ?
- Weidmüller 1331 Series part numbers differ by housing material, mating orientation, pitch and positions per level. Use the selection guide above to pick by housing material.
- How many Weidmüller Weidmüller 1331 Series part numbers are listed?
- 7 Weidmüller Weidmüller 1331 Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for Weidmüller Weidmüller 1331 Series?
- Request a quote (RFQ) for any Weidmüller 1331 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
All variants
Color: Orange · Pitch: 0.197\" (5.00mm) · Series: Omnimate LMF · Current: 20 A · Package: Bulk · Voltage: 300 V · Features: Interlocking (Side) · Wire gauge: 12-24 AWG · Mounting type: Through Hole · Housing material: Thermoplastic, Wemid · Number of levels: 1 · Wire termination: Screwless - Leg Spring, Push-In Spring · Mating orientation: Horizontal with Board · Positions per level: 18 · Operating temperature: -50°C ~ 120°C · Contact material - plating: Copper Alloy - Tin Plated
Color: Orange · Pitch: 0.200\" (5.08mm) · Series: Omnimate LMF · Current: 20 A · Package: Bulk · Voltage: 300 V · Features: Interlocking (Side) · Wire gauge: 12-24 AWG · Mounting type: Through Hole · Housing material: Thermoplastic, Wemid · Number of levels: 1 · Wire termination: Screwless - Leg Spring, Push-In Spring · Mating orientation: Vertical with Board · Positions per level: 2 · Operating temperature: -50°C ~ 120°C · Contact material - plating: Copper Alloy - Tin Plated
Color: Orange · Pitch: 0.197\" (5.00mm) · Series: Omnimate LMF · Current: 20 A · Package: Bulk · Voltage: 300 V · Features: Interlocking (Side) · Wire gauge: 12-24 AWG · Mounting type: Through Hole · Housing material: Thermoplastic, Wemid · Number of levels: 1 · Wire termination: Screwless - Leg Spring, Push-In Spring · Mating orientation: Horizontal with Board · Positions per level: 2 · Operating temperature: -50°C ~ 120°C · Contact material - plating: Copper Alloy - Tin Plated
Color: Orange · Pitch: 0.197\" (5.00mm) · Series: Omnimate LMF · Current: 20 A · Package: Bulk · Voltage: 300 V · Features: Interlocking (Side) · Wire gauge: 12-24 AWG · Mounting type: Through Hole · Housing material: Thermoplastic, Wemid · Number of levels: 1 · Wire termination: Screwless - Leg Spring, Push-In Spring · Mating orientation: Horizontal with Board · Positions per level: 3 · Operating temperature: -50°C ~ 120°C · Contact material - plating: Copper Alloy - Tin Plated

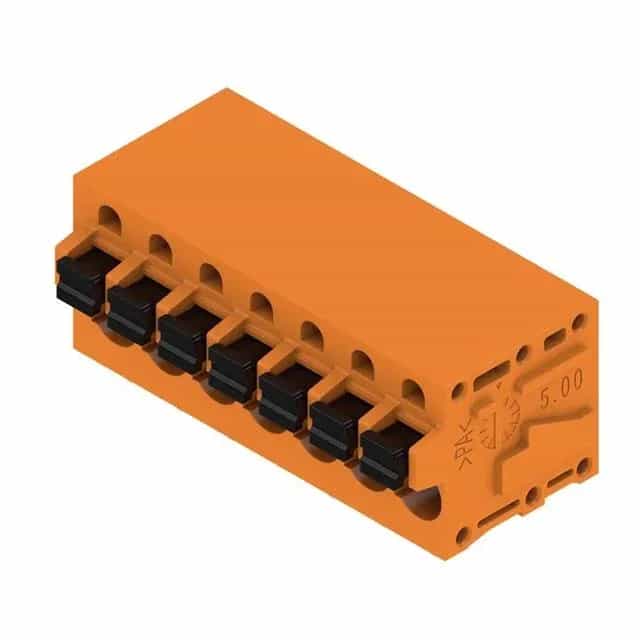

Color: Orange · Pitch: 0.197\" (5.00mm) · Series: Omnimate LMF · Current: 20 A · Package: Bulk · Voltage: 300 V · Features: Interlocking (Side) · Wire gauge: 12-24 AWG · Mounting type: Through Hole · Housing material: Polyamide (PA), Nylon · Number of levels: 1 · Wire termination: Screwless - Leg Spring, Push-In Spring · Mating orientation: Horizontal with Board · Positions per level: 7 · Operating temperature: -50°C ~ 120°C · Contact material - plating: Copper Alloy - Tin Plated

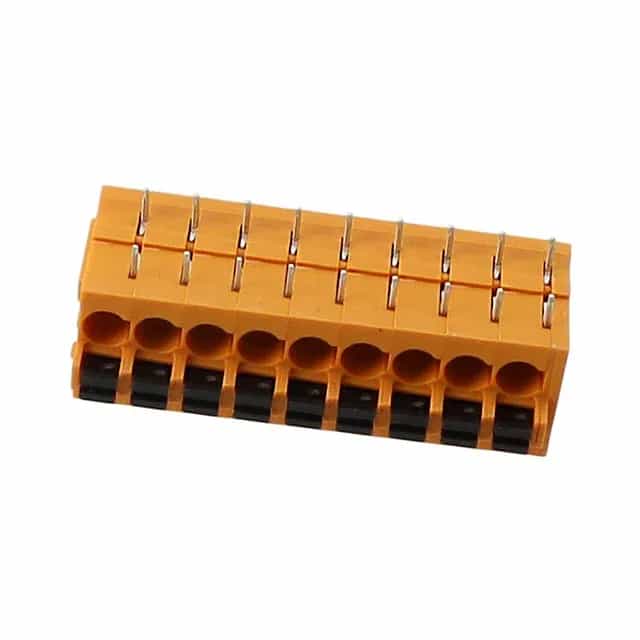

Color: Orange · Pitch: 0.197\" (5.00mm) · Series: Omnimate LMF · Current: 20 A · Package: Bulk · Voltage: 300 V · Features: Interlocking (Side) · Wire gauge: 12-24 AWG · Mounting type: Through Hole · Housing material: Thermoplastic, Wemid · Number of levels: 1 · Wire termination: Screwless - Leg Spring, Push-In Spring · Mating orientation: Horizontal with Board · Positions per level: 9 · Operating temperature: -50°C ~ 120°C · Contact material - plating: Copper Alloy - Tin Plated
Color: Orange · Pitch: 0.197\" (5.00mm) · Series: Omnimate LMF · Current: 20 A · Package: Bulk · Voltage: 300 V · Features: Interlocking (Side) · Wire gauge: 12-24 AWG · Mounting type: Through Hole · Housing material: Thermoplastic, Wemid · Number of levels: 1 · Wire termination: Screwless - Leg Spring, Push-In Spring · Mating orientation: Horizontal with Board · Positions per level: 12 · Operating temperature: -50°C ~ 120°C · Contact material - plating: Copper Alloy - Tin Plated
