Weidmüller 1547 Series
3 variants · Weidmüller
About the Weidmüller Weidmüller 1547 Series series
The Weidmüller Weidmüller 1547 Series series groups 3 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common current - IEC of 24 A, current - UL of 20 A and material - insulation of Thermoplastic, Wemid. Variants differ by color and number of levels, so you can match the exact color your application requires using the selection guide below. All listed Weidmüller 1547 Series part numbers are active and orderable.
Select a variant by
- Color
- Beige · Blue
- Number of levels
- 2 · 2; Connected and Grounded
Variant comparison
| Parameter | 1547610000 | 1547620000 | 1547650000 |
|---|---|---|---|
| Color | Beige | Blue | Beige |
| Number of levels | 2 | 2 | 2; Connected and Grounded |
Shared specifications
- Current - IEC
- 24 A
- Current - UL
- 20 A
- Material - insulation
- Thermoplastic, Wemid
- Material flammability rating
- UL94 V-0
- Package
- Box
- Positions
- 4
- Stripping length
- 10mm
- Terminal - width
- 5.1mm
- Termination style
- Push In
- Type
- Feed Through
- Voltage - IEC
- 800V
- Voltage - UL
- 600V
Request a quote on any Weidmüller 1547 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the Weidmüller Weidmüller 1547 Series variants differ?
- Weidmüller 1547 Series part numbers differ by color and number of levels. Use the selection guide above to pick by color.
- How many Weidmüller Weidmüller 1547 Series part numbers are listed?
- 3 Weidmüller Weidmüller 1547 Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for Weidmüller Weidmüller 1547 Series?
- Request a quote (RFQ) for any Weidmüller 1547 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
All variants
Type: Feed Through · Color: Beige · Series: A · Package: Box · Current - UL: 20 A · Voltage - UL: 600V · Current - IEC: 24 A · Voltage - IEC: 800V · Number of levels: 2 · Stripping length: 10mm · Terminal - width: 5.1mm · Termination style: Push In · Positions: 4 · Material - insulation: Thermoplastic, Wemid · Wire gauge or range - AWG: 12-28 AWG · Wire gauge or range - mm2: 0.5-2.5mm² · Material flammability rating: UL94 V-0

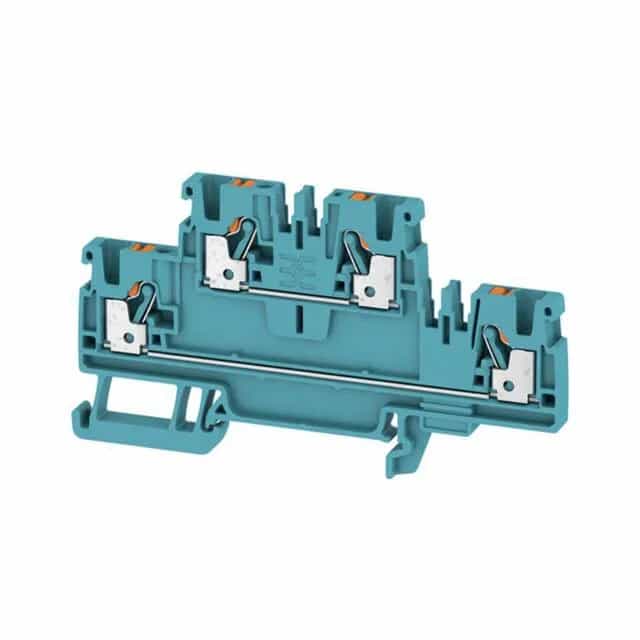

Type: Feed Through · Color: Blue · Series: A · Package: Box · Current - UL: 20 A · Voltage - UL: 600V · Current - IEC: 24 A · Voltage - IEC: 800V · Number of levels: 2 · Stripping length: 10mm · Terminal - width: 5.1mm · Termination style: Push In · Positions: 4 · Material - insulation: Thermoplastic, Wemid · Wire gauge or range - AWG: 12-28 AWG · Wire gauge or range - mm2: 0.5-2.5mm² · Material flammability rating: UL94 V-0

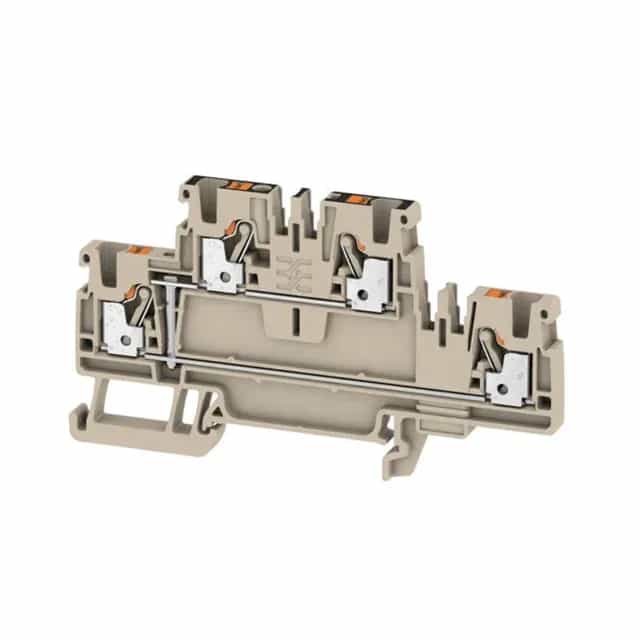

Type: Feed Through · Color: Beige · Series: A · Package: Box · Current - UL: 20 A · Voltage - UL: 600V · Current - IEC: 24 A · Voltage - IEC: 800V · Number of levels: 2; Connected and Grounded · Stripping length: 10mm · Terminal - width: 5.1mm · Termination style: Push In · Positions: 4 · Material - insulation: Thermoplastic, Wemid · Wire gauge or range - AWG: 12-28 AWG · Wire gauge or range - mm2: 0.5-2.5mm² · Material flammability rating: UL94 V-0
