Weidmüller 1552 Series
6 variants · Weidmüller
About the Weidmüller Weidmüller 1552 Series series
The Weidmüller Weidmüller 1552 Series series groups 6 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common package of Box. Variants differ by color, type and positions, so you can match the exact color your application requires using the selection guide below. All listed Weidmüller 1552 Series part numbers are active and orderable.
Select a variant by
- Color
- Beige · Blue · Green, Yellow
- Type
- End Plate · Feed Through · Ground, Earth
- Positions
- 2 · 3 · 4
Variant comparison
| Parameter | 1552600000 | 1552640000 | 1552660000 | 1552680000 | 1552700000 | 1552740000 |
|---|---|---|---|---|---|---|
| Color | Beige | Beige | Green, Yellow | Green, Yellow | Blue | Beige |
| Type | End Plate | End Plate | Ground, Earth | Ground, Earth | Feed Through | Feed Through |
| Positions | — | — | 4 | 2 | 4 | 3 |
Shared specifications
- Package
- Box
Request a quote on any Weidmüller 1552 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the Weidmüller Weidmüller 1552 Series variants differ?
- Weidmüller 1552 Series part numbers differ by color, type and positions. Use the selection guide above to pick by color.
- How many Weidmüller Weidmüller 1552 Series part numbers are listed?
- 6 Weidmüller Weidmüller 1552 Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for Weidmüller Weidmüller 1552 Series?
- Request a quote (RFQ) for any Weidmüller 1552 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
All variants
Type: End Plate · Color: Beige · Series: AEP · Package: Box · For use with (Related products): A Series
Type: End Plate · Color: Beige · Series: AEP · Package: Box · For use with (Related products): A Series

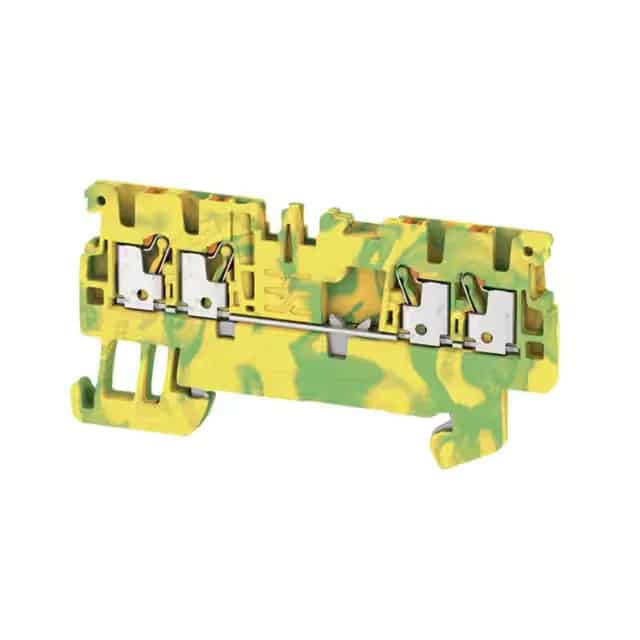

Type: Ground, Earth · Color: Green, Yellow · Series: A · Package: Box · Voltage - UL: 600V · Number of levels: 1 · Stripping length: 8mm · Terminal - width: 3.5mm · Termination style: Push In · Positions: 4 · Material - insulation: Thermoplastic, Wemid · Wire gauge or range - AWG: 14-26 AWG · Wire gauge or range - mm2: 0.5-1.5mm² · Material flammability rating: UL94 V-0

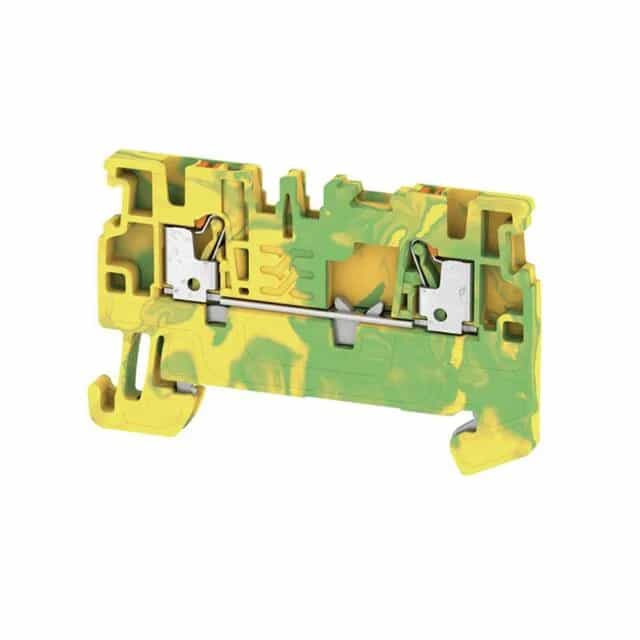

Type: Ground, Earth · Color: Green, Yellow · Series: A · Package: Box · Voltage - UL: 600V · Number of levels: 1 · Stripping length: 8mm · Terminal - width: 3.5mm · Termination style: Push In · Positions: 2 · Material - insulation: Thermoplastic, Wemid · Wire gauge or range - AWG: 14-26 AWG · Wire gauge or range - mm2: 0.5-1.5mm² · Material flammability rating: UL94 V-0
Type: Feed Through · Color: Blue · Series: A · Package: Box · Current - UL: 5 A · Voltage - UL: 600V · Current - IEC: 17.5 A · Voltage - IEC: 500V · Number of levels: 1 · Stripping length: 8mm · Terminal - width: 3.5mm · Termination style: Push In · Positions: 4 · Material - insulation: Thermoplastic, Wemid · Wire gauge or range - AWG: 14-26 AWG · Wire gauge or range - mm2: 0.5-1.5mm² · Material flammability rating: UL94 V-0
Type: Feed Through · Color: Beige · Series: A · Package: Box · Current - UL: 5 A · Voltage - UL: 600V · Current - IEC: 17.5 A · Voltage - IEC: 500V · Number of levels: 1 · Stripping length: 8mm · Terminal - width: 3.5mm · Termination style: Push In · Positions: 3 · Material - insulation: Thermoplastic, Wemid · Wire gauge or range - AWG: 14-26 AWG · Wire gauge or range - mm2: 0.5-1.5mm² · Material flammability rating: UL94 V-0
