Weidmüller 1604 Series
7 variants · Weidmüller
About the Weidmüller Weidmüller 1604 Series series
The Weidmüller Weidmüller 1604 Series series groups 7 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Variants differ by package, type and positions, so you can match the exact package your application requires using the selection guide below. All listed Weidmüller 1604 Series part numbers are active and orderable.
Select a variant by
- Package
- Box · Bulk · Tape & Reel (TR); Cut Tape (CT)
- Type
- Block Locks, PC Mount · Header, Male Pins, Shrouded (4 Side)
- Positions
- 5 · 8 · 11 · 13 · 14
- Positions per level
- 5 · 8 · 11 · 13 · 14
Variant comparison
| Parameter | 1604120000 | 1604230000 | 1604500000 | 1604530000 | 1604560000 | 1604580000 |
|---|---|---|---|---|---|---|
| Package | Box | Tape & Reel (TR); Cut Tape (CT) | Bulk | Bulk | Bulk | Bulk |
| Type | Block Locks, PC Mount | — | Header, Male Pins, Shrouded (4 Side) | Header, Male Pins, Shrouded (4 Side) | Header, Male Pins, Shrouded (4 Side) | Header, Male Pins, Shrouded (4 Side) |
| Positions | — | — | 5 | 8 | 11 | 13 |
| Positions per level | — | — | 5 | 8 | 11 | 13 |
Request a quote on any Weidmüller 1604 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the Weidmüller Weidmüller 1604 Series variants differ?
- Weidmüller 1604 Series part numbers differ by package, type, positions and positions per level. Use the selection guide above to pick by package.
- How many Weidmüller Weidmüller 1604 Series part numbers are listed?
- 7 Weidmüller Weidmüller 1604 Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for Weidmüller Weidmüller 1604 Series?
- Request a quote (RFQ) for any Weidmüller 1604 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
All variants

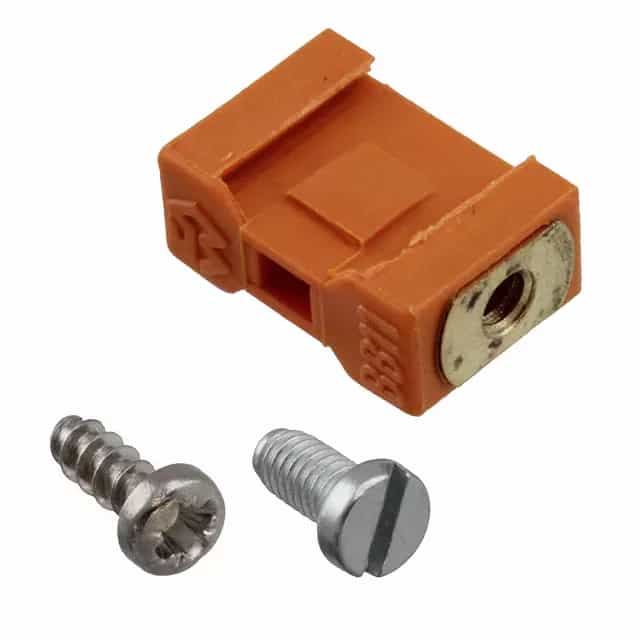

Type: Block Locks, PC Mount · Color: Orange · Series: SLA · Package: Box · For use with (Related products): Omnimate BLL, SL, Unimate SLA and SLAD Series
Series: DFFC · Package: Tape & Reel (TR); Cut Tape (CT) · Pin or socket: Socket · Contact finish: Tin · Contact termination: Crimp

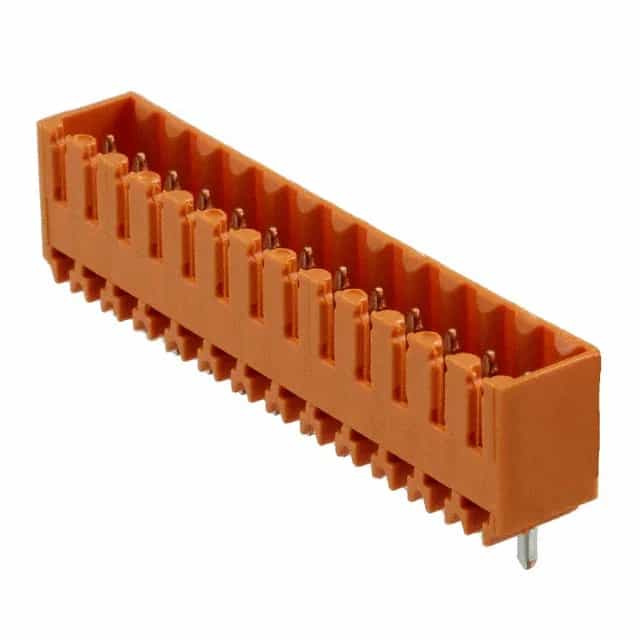

Type: Header, Male Pins, Shrouded (4 Side) · Color: Orange · Pitch: 0.138\" (3.50mm) · Series: Omnimate SL · Package: Bulk · Current - UL: 10 A · Voltage - UL: 300 V · Current - IEC: 17A · Mounting type: Through Hole · Voltage - IEC: 320 V · Contact material: Copper Alloy · Housing material: Polybutylene Terephthalate (PBT) · Number of levels: 1 · Insulation height: 0.437\" (11.10mm) · Termination style: Solder · Header orientation: Vertical · Ingress protection: IP10 · Contact tail length: 0.126\" (3.20mm) · Positions: 5 · Positions per level: 5 · Contact mating finish: Tin · Operating temperature: -50°C ~ 100°C · Material flammability rating: UL94 V-0
Type: Header, Male Pins, Shrouded (4 Side) · Color: Orange · Pitch: 0.138\" (3.50mm) · Series: Omnimate SL · Package: Bulk · Current - UL: 10 A · Voltage - UL: 300 V · Current - IEC: 17A · Mounting type: Through Hole · Voltage - IEC: 320 V · Contact material: Copper Alloy · Housing material: Polybutylene Terephthalate (PBT) · Number of levels: 1 · Insulation height: 0.437\" (11.10mm) · Termination style: Solder · Header orientation: Vertical · Ingress protection: IP10 · Contact tail length: 0.126\" (3.20mm) · Positions: 8 · Positions per level: 8 · Contact mating finish: Tin · Operating temperature: -50°C ~ 100°C · Material flammability rating: UL94 V-0
Type: Header, Male Pins, Shrouded (4 Side) · Color: Orange · Pitch: 0.138\" (3.50mm) · Series: Omnimate SL · Package: Bulk · Current - UL: 10 A · Voltage - UL: 300 V · Current - IEC: 17A · Mounting type: Through Hole · Voltage - IEC: 320 V · Contact material: Copper Alloy · Housing material: Polybutylene Terephthalate (PBT) · Number of levels: 1 · Insulation height: 0.437\" (11.10mm) · Termination style: Solder · Header orientation: Vertical · Ingress protection: IP10 · Contact tail length: 0.126\" (3.20mm) · Positions: 11 · Positions per level: 11 · Contact mating finish: Tin · Operating temperature: -50°C ~ 100°C · Material flammability rating: UL94 V-0
Type: Header, Male Pins, Shrouded (4 Side) · Color: Orange · Pitch: 0.138\" (3.50mm) · Series: Omnimate SL · Package: Bulk · Current - UL: 10 A · Voltage - UL: 300 V · Current - IEC: 17A · Mounting type: Through Hole · Voltage - IEC: 320 V · Contact material: Copper Alloy · Housing material: Polybutylene Terephthalate (PBT) · Number of levels: 1 · Insulation height: 0.437\" (11.10mm) · Termination style: Solder · Header orientation: Vertical · Ingress protection: IP10 · Contact tail length: 0.126\" (3.20mm) · Positions: 13 · Positions per level: 13 · Contact mating finish: Tin · Operating temperature: -50°C ~ 100°C · Material flammability rating: UL94 V-0
Type: Header, Male Pins, Shrouded (4 Side) · Color: Orange · Pitch: 0.138\" (3.50mm) · Series: Omnimate SL · Package: Bulk · Current - UL: 10 A · Voltage - UL: 300 V · Current - IEC: 17A · Mounting type: Through Hole · Voltage - IEC: 320 V · Contact material: Copper Alloy · Housing material: Polybutylene Terephthalate (PBT) · Number of levels: 1 · Insulation height: 0.437\" (11.10mm) · Termination style: Solder · Header orientation: Vertical · Ingress protection: IP10 · Contact tail length: 0.126\" (3.20mm) · Positions: 14 · Positions per level: 14 · Contact mating finish: Tin · Operating temperature: -50°C ~ 100°C · Material flammability rating: UL94 V-0
