Weidmüller 1605 Series
6 variants · Weidmüller
About the Weidmüller Weidmüller 1605 Series series
The Weidmüller Weidmüller 1605 Series series groups 6 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common color of Orange, contact material of Copper Alloy and contact mating finish of Tin. Variants differ by current - UL, header orientation and insulation height, so you can match the exact current - UL your application requires using the selection guide below. All listed Weidmüller 1605 Series part numbers are active and orderable.
Select a variant by
- Current - UL
- 10 A · 15 A
- Header orientation
- 90°, Right Angle · 135°
- Insulation height
- 0.298\" (7.57mm) · 0.484\" (12.30mm)
- Pitch
- 0.138\" (3.50mm) · 0.200\" (5.08mm)
- Positions
- 3 · 4 · 6 · 8 · 11
- Positions per level
- 3 · 4 · 6 · 8 · 11
- Voltage - IEC
- 320 V · 400 V
Variant comparison
| Parameter | 1605080000 | 1605090000 | 1605110000 | 1605130000 | 1605160000 | 1605540000 |
|---|---|---|---|---|---|---|
| Current - UL | 10 A | 10 A | 10 A | 10 A | 10 A | 15 A |
| Header orientation | 90°, Right Angle | 90°, Right Angle | 90°, Right Angle | 90°, Right Angle | 90°, Right Angle | 135° |
| Insulation height | 0.298\" (7.57mm) | 0.298\" (7.57mm) | 0.298\" (7.57mm) | 0.298\" (7.57mm) | 0.298\" (7.57mm) | 0.484\" (12.30mm) |
| Pitch | 0.138\" (3.50mm) | 0.138\" (3.50mm) | 0.138\" (3.50mm) | 0.138\" (3.50mm) | 0.138\" (3.50mm) | 0.200\" (5.08mm) |
| Positions | 3 | 4 | 6 | 8 | 11 | 3 |
| Positions per level | 3 | 4 | 6 | 8 | 11 | 3 |
| Voltage - IEC | 320 V | 320 V | 320 V | 320 V | 320 V | 400 V |
Shared specifications
- Color
- Orange
- Contact material
- Copper Alloy
- Contact mating finish
- Tin
- Contact tail length
- 0.126\" (3.20mm)
- Current - IEC
- 17A
- Housing material
- Polybutylene Terephthalate (PBT)
- Material flammability rating
- UL94 V-0
- Mounting type
- Through Hole
- Number of levels
- 1
- Operating temperature
- -50°C ~ 100°C
- Package
- Bulk
- Termination style
- Solder
Request a quote on any Weidmüller 1605 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the Weidmüller Weidmüller 1605 Series variants differ?
- Weidmüller 1605 Series part numbers differ by current - UL, header orientation, insulation height and pitch. Use the selection guide above to pick by current - UL.
- How many Weidmüller Weidmüller 1605 Series part numbers are listed?
- 6 Weidmüller Weidmüller 1605 Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for Weidmüller Weidmüller 1605 Series?
- Request a quote (RFQ) for any Weidmüller 1605 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
All variants
Type: Header, Male Pins, Shrouded (4 Side) · Color: Orange · Pitch: 0.138\" (3.50mm) · Series: Omnimate SL · Package: Bulk · Current - UL: 10 A · Voltage - UL: 300 V · Current - IEC: 17A · Mounting type: Through Hole · Voltage - IEC: 320 V · Contact material: Copper Alloy · Housing material: Polybutylene Terephthalate (PBT) · Number of levels: 1 · Insulation height: 0.298\" (7.57mm) · Termination style: Solder · Header orientation: 90°, Right Angle · Ingress protection: IP10 · Contact tail length: 0.126\" (3.20mm) · Positions: 3 · Positions per level: 3 · Contact mating finish: Tin · Operating temperature: -50°C ~ 100°C · Material flammability rating: UL94 V-0
Type: Header, Male Pins, Shrouded (4 Side) · Color: Orange · Pitch: 0.138\" (3.50mm) · Series: Omnimate SL · Package: Bulk · Current - UL: 10 A · Voltage - UL: 300 V · Current - IEC: 17A · Mounting type: Through Hole · Voltage - IEC: 320 V · Contact material: Copper Alloy · Housing material: Polybutylene Terephthalate (PBT) · Number of levels: 1 · Insulation height: 0.298\" (7.57mm) · Termination style: Solder · Header orientation: 90°, Right Angle · Ingress protection: IP10 · Contact tail length: 0.126\" (3.20mm) · Positions: 4 · Positions per level: 4 · Contact mating finish: Tin · Operating temperature: -50°C ~ 100°C · Material flammability rating: UL94 V-0
Type: Header, Male Pins, Shrouded (4 Side) · Color: Orange · Pitch: 0.138\" (3.50mm) · Series: Omnimate SL · Package: Bulk · Current - UL: 10 A · Voltage - UL: 300 V · Current - IEC: 17A · Mounting type: Through Hole · Voltage - IEC: 320 V · Contact material: Copper Alloy · Housing material: Polybutylene Terephthalate (PBT) · Number of levels: 1 · Insulation height: 0.298\" (7.57mm) · Termination style: Solder · Header orientation: 90°, Right Angle · Ingress protection: IP10 · Contact tail length: 0.126\" (3.20mm) · Positions: 6 · Positions per level: 6 · Contact mating finish: Tin · Operating temperature: -50°C ~ 100°C · Material flammability rating: UL94 V-0
Type: Header, Male Pins, Shrouded (4 Side) · Color: Orange · Pitch: 0.138\" (3.50mm) · Series: Omnimate SL · Package: Bulk · Current - UL: 10 A · Voltage - UL: 300 V · Current - IEC: 17A · Mounting type: Through Hole · Voltage - IEC: 320 V · Contact material: Copper Alloy · Housing material: Polybutylene Terephthalate (PBT) · Number of levels: 1 · Insulation height: 0.298\" (7.57mm) · Termination style: Solder · Header orientation: 90°, Right Angle · Ingress protection: IP10 · Contact tail length: 0.126\" (3.20mm) · Positions: 8 · Positions per level: 8 · Contact mating finish: Tin · Operating temperature: -50°C ~ 100°C · Material flammability rating: UL94 V-0

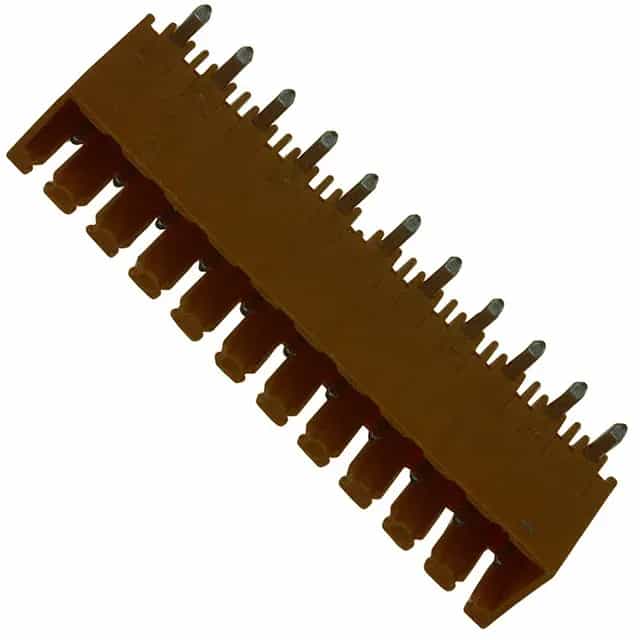

Type: Header, Male Pins, Shrouded (4 Side) · Color: Orange · Pitch: 0.138\" (3.50mm) · Series: Omnimate SL · Package: Bulk · Current - UL: 10 A · Voltage - UL: 300 V · Current - IEC: 17A · Mounting type: Through Hole · Voltage - IEC: 320 V · Contact material: Copper Alloy · Housing material: Polybutylene Terephthalate (PBT) · Number of levels: 1 · Insulation height: 0.298\" (7.57mm) · Termination style: Solder · Header orientation: 90°, Right Angle · Ingress protection: IP10 · Contact tail length: 0.126\" (3.20mm) · Positions: 11 · Positions per level: 11 · Contact mating finish: Tin · Operating temperature: -50°C ~ 100°C · Material flammability rating: UL94 V-0
Type: Header, Male Pins, Shrouded (4 Side) · Color: Orange · Pitch: 0.200\" (5.08mm) · Series: Omnimate SL · Package: Bulk · Current - UL: 15 A · Voltage - UL: 300 V · Current - IEC: 17A · Mounting type: Through Hole · Voltage - IEC: 400 V · Contact material: Copper Alloy · Housing material: Polybutylene Terephthalate (PBT) · Number of levels: 1 · Insulation height: 0.484\" (12.30mm) · Termination style: Solder · Header orientation: 135° · Contact tail length: 0.126\" (3.20mm) · Positions: 3 · Positions per level: 3 · Contact mating finish: Tin · Operating temperature: -50°C ~ 100°C · Material flammability rating: UL94 V-0
