Weidmüller 1607 Series
7 variants · Weidmüller
About the Weidmüller Weidmüller 1607 Series series
The Weidmüller Weidmüller 1607 Series series groups 7 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common color of Orange, contact material of Copper Alloy and contact mating finish of Tin. Variants differ by header orientation, insulation height and positions, so you can match the exact header orientation your application requires using the selection guide below. All listed Weidmüller 1607 Series part numbers are active and orderable.
Select a variant by
- Header orientation
- 90°, Right Angle · Vertical
- Insulation height
- 0.295\" (7.50mm) · 0.437\" (11.10mm)
- Positions
- 2 · 3 · 7 · 11 · 14
- Positions per level
- 2 · 3 · 7 · 11 · 14
Variant comparison

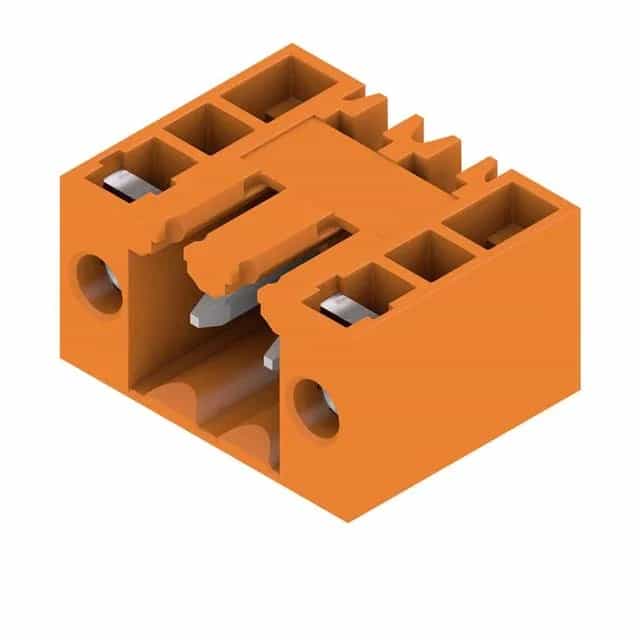

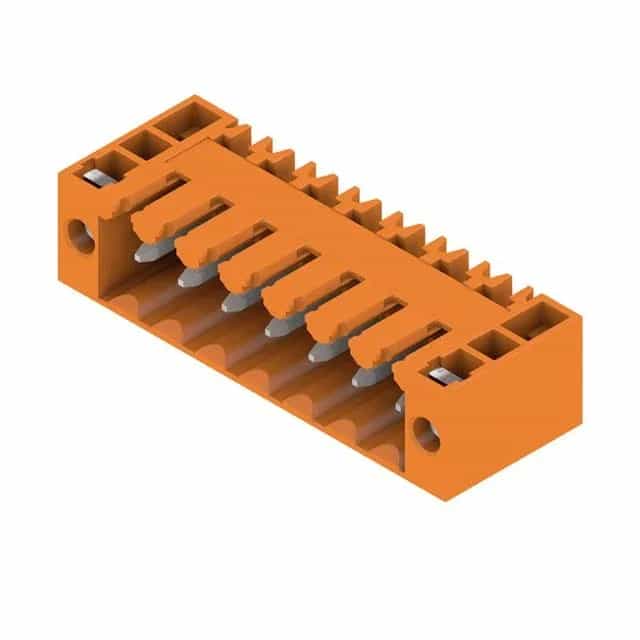

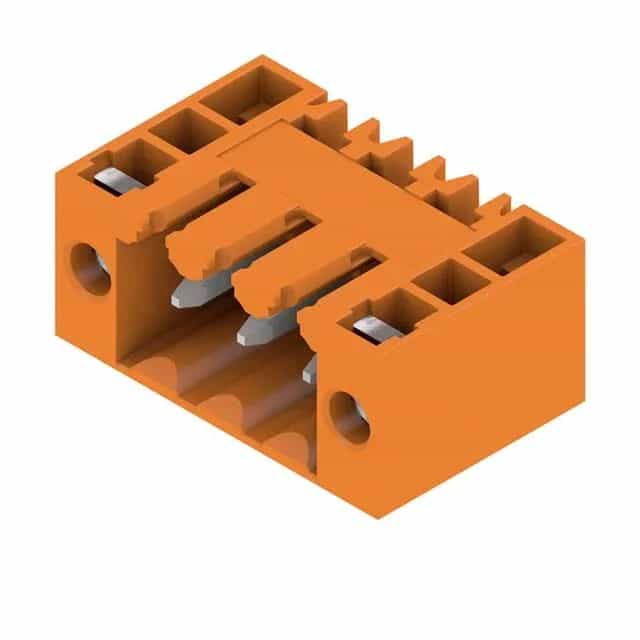

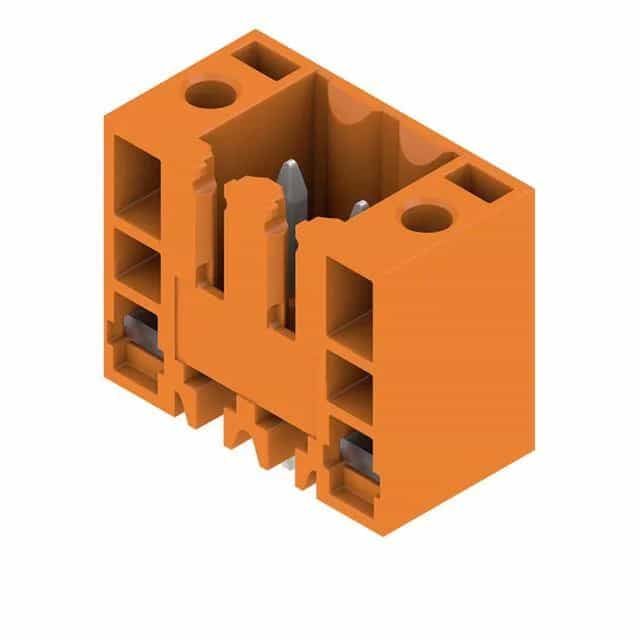

| Parameter | 1607040000 | 1607050000 | 1607090000 | 1607130000 | 1607160000 | 1607500000 |
|---|---|---|---|---|---|---|
| Header orientation | 90°, Right Angle | 90°, Right Angle | 90°, Right Angle | 90°, Right Angle | 90°, Right Angle | Vertical |
| Insulation height | 0.295\" (7.50mm) | 0.295\" (7.50mm) | 0.295\" (7.50mm) | 0.295\" (7.50mm) | 0.295\" (7.50mm) | 0.437\" (11.10mm) |
| Positions | 2 | 3 | 7 | 11 | 14 | 2 |
| Positions per level | 2 | 3 | 7 | 11 | 14 | 2 |
Shared specifications
- Color
- Orange
- Contact material
- Copper Alloy
- Contact mating finish
- Tin
- Contact tail length
- 0.126\" (3.20mm)
- Current - IEC
- 17A
- Current - UL
- 10 A
- Features
- Mating and Mounting Flange
- Housing material
- Polybutylene Terephthalate (PBT)
- Ingress protection
- IP10
- Material flammability rating
- UL94 V-0
- Mounting type
- Through Hole
- Number of levels
- 1
Request a quote on any Weidmüller 1607 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the Weidmüller Weidmüller 1607 Series variants differ?
- Weidmüller 1607 Series part numbers differ by header orientation, insulation height, positions and positions per level. Use the selection guide above to pick by header orientation.
- How many Weidmüller Weidmüller 1607 Series part numbers are listed?
- 7 Weidmüller Weidmüller 1607 Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for Weidmüller Weidmüller 1607 Series?
- Request a quote (RFQ) for any Weidmüller 1607 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
All variants
Type: Header, Male Pins, Shrouded (4 Side) · Color: Orange · Pitch: 0.138\" (3.50mm) · Series: Omnimate SL · Package: Bulk · Features: Mating and Mounting Flange · Current - UL: 10 A · Voltage - UL: 300 V · Current - IEC: 17A · Mounting type: Through Hole · Voltage - IEC: 320 V · Contact material: Copper Alloy · Housing material: Polybutylene Terephthalate (PBT) · Number of levels: 1 · Insulation height: 0.295\" (7.50mm) · Termination style: Solder · Header orientation: 90°, Right Angle · Ingress protection: IP10 · Contact tail length: 0.126\" (3.20mm) · Positions: 2 · Positions per level: 2 · Contact mating finish: Tin · Operating temperature: -50°C ~ 100°C · Material flammability rating: UL94 V-0
Type: Header, Male Pins, Shrouded (4 Side) · Color: Orange · Pitch: 0.138\" (3.50mm) · Series: Omnimate SL · Package: Bulk · Features: Mating and Mounting Flange · Current - UL: 10 A · Voltage - UL: 300 V · Current - IEC: 17A · Mounting type: Through Hole · Voltage - IEC: 320 V · Contact material: Copper Alloy · Housing material: Polybutylene Terephthalate (PBT) · Number of levels: 1 · Insulation height: 0.295\" (7.50mm) · Termination style: Solder · Header orientation: 90°, Right Angle · Ingress protection: IP10 · Contact tail length: 0.126\" (3.20mm) · Positions: 3 · Positions per level: 3 · Contact mating finish: Tin · Operating temperature: -50°C ~ 100°C · Material flammability rating: UL94 V-0
Type: Header, Male Pins, Shrouded (4 Side) · Color: Orange · Pitch: 0.138\" (3.50mm) · Series: Omnimate SL · Package: Bulk · Features: Mating and Mounting Flange · Current - UL: 10 A · Voltage - UL: 300 V · Current - IEC: 17A · Mounting type: Through Hole · Voltage - IEC: 320 V · Contact material: Copper Alloy · Housing material: Polybutylene Terephthalate (PBT) · Number of levels: 1 · Insulation height: 0.295\" (7.50mm) · Termination style: Solder · Header orientation: 90°, Right Angle · Ingress protection: IP10 · Contact tail length: 0.126\" (3.20mm) · Positions: 7 · Positions per level: 7 · Contact mating finish: Tin · Operating temperature: -50°C ~ 100°C · Material flammability rating: UL94 V-0
Type: Header, Male Pins, Shrouded (4 Side) · Color: Orange · Pitch: 0.138\" (3.50mm) · Series: Omnimate SL · Package: Bulk · Features: Mating and Mounting Flange · Current - UL: 10 A · Voltage - UL: 300 V · Current - IEC: 17A · Mounting type: Through Hole · Voltage - IEC: 320 V · Contact material: Copper Alloy · Housing material: Polybutylene Terephthalate (PBT) · Number of levels: 1 · Insulation height: 0.295\" (7.50mm) · Termination style: Solder · Header orientation: 90°, Right Angle · Ingress protection: IP10 · Contact tail length: 0.126\" (3.20mm) · Positions: 11 · Positions per level: 11 · Contact mating finish: Tin · Operating temperature: -50°C ~ 100°C · Material flammability rating: UL94 V-0
Type: Header, Male Pins, Shrouded (4 Side) · Color: Orange · Pitch: 0.138\" (3.50mm) · Series: Omnimate SL · Package: Bulk · Features: Mating and Mounting Flange · Current - UL: 10 A · Voltage - UL: 300 V · Current - IEC: 17A · Mounting type: Through Hole · Voltage - IEC: 320 V · Contact material: Copper Alloy · Housing material: Polybutylene Terephthalate (PBT) · Number of levels: 1 · Insulation height: 0.295\" (7.50mm) · Termination style: Solder · Header orientation: 90°, Right Angle · Ingress protection: IP10 · Contact tail length: 0.126\" (3.20mm) · Positions: 14 · Positions per level: 14 · Contact mating finish: Tin · Operating temperature: -50°C ~ 100°C · Material flammability rating: UL94 V-0
Type: Header, Male Pins, Shrouded (4 Side) · Color: Orange · Pitch: 0.138\" (3.50mm) · Series: Omnimate SL · Package: Bulk · Features: Mating and Mounting Flange · Current - UL: 10 A · Voltage - UL: 300 V · Current - IEC: 17A · Mounting type: Through Hole · Voltage - IEC: 320 V · Contact material: Copper Alloy · Housing material: Polybutylene Terephthalate (PBT) · Number of levels: 1 · Insulation height: 0.437\" (11.10mm) · Termination style: Solder · Header orientation: Vertical · Ingress protection: IP10 · Contact tail length: 0.126\" (3.20mm) · Positions: 2 · Positions per level: 2 · Contact mating finish: Tin · Operating temperature: -50°C ~ 100°C · Material flammability rating: UL94 V-0

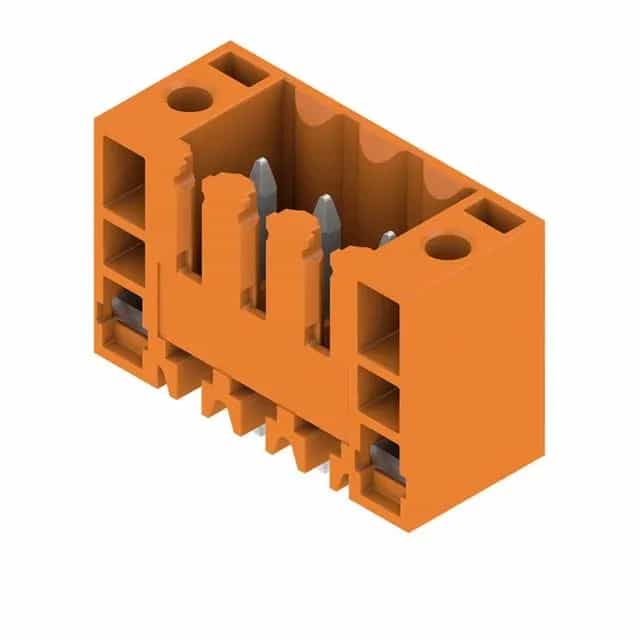

Type: Header, Male Pins, Shrouded (4 Side) · Color: Orange · Pitch: 0.138\" (3.50mm) · Series: Omnimate SL · Package: Bulk · Features: Mating and Mounting Flange · Current - UL: 10 A · Voltage - UL: 300 V · Current - IEC: 17A · Mounting type: Through Hole · Voltage - IEC: 320 V · Contact material: Copper Alloy · Housing material: Polybutylene Terephthalate (PBT) · Number of levels: 1 · Insulation height: 0.437\" (11.10mm) · Termination style: Solder · Header orientation: Vertical · Ingress protection: IP10 · Contact tail length: 0.126\" (3.20mm) · Positions: 3 · Positions per level: 3 · Contact mating finish: Tin · Operating temperature: -50°C ~ 100°C · Material flammability rating: UL94 V-0
