Weidmüller 1608 Series
20 variants · Weidmüller
About the Weidmüller Weidmüller 1608 Series series
The Weidmüller Weidmüller 1608 Series series groups 20 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Variants differ by color, package and type, so you can match the exact color your application requires using the selection guide below. All listed Weidmüller 1608 Series part numbers are active and orderable.
Select a variant by
- Color
- Beige · Blue · Green, Yellow · Orange
- Package
- Box · Bulk
- Type
- End Plate, Rail Type · Feed Through · Ground, Earth
- Positions
- 2 · 3 · 4
- Stripping length
- 10mm · 13mm
- Terminal - width
- 5.1mm · 8.1mm
- Wire gauge or range - AWG
- 8-22 AWG · 12-30 AWG
- Wire gauge or range - mm2
- 0.5-4mm² · 0.5-10mm²
Variant comparison
| Parameter | 1608510000 | 1608520000 | 1608540000 | 1608550000 | 1608570000 | 1608620000 |
|---|---|---|---|---|---|---|
| Color | Beige | Blue | Beige | Blue | Beige | Beige |
| Package | Box | Bulk | Box | Bulk | Box | Box |
| Type | Feed Through | Feed Through | Feed Through | Feed Through | Feed Through | Feed Through |
| Positions | 2 | 2 | 3 | 3 | 4 | 2 |
| Stripping length | 10mm | 10mm | 10mm | 10mm | 10mm | 13mm |
| Terminal - width | 5.1mm | 5.1mm | 5.1mm | 5.1mm | 5.1mm | 8.1mm |
| Wire gauge or range - AWG | 12-30 AWG | 12-30 AWG | 12-30 AWG | 12-30 AWG | 12-30 AWG | 8-22 AWG |
| Wire gauge or range - mm2 | 0.5-4mm² | 0.5-4mm² | 0.5-4mm² | 0.5-4mm² | 0.5-4mm² | 0.5-10mm² |
Request a quote on any Weidmüller 1608 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the Weidmüller Weidmüller 1608 Series variants differ?
- Weidmüller 1608 Series part numbers differ by color, package, type and positions. Use the selection guide above to pick by color.
- How many Weidmüller Weidmüller 1608 Series part numbers are listed?
- 20 Weidmüller Weidmüller 1608 Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for Weidmüller Weidmüller 1608 Series?
- Request a quote (RFQ) for any Weidmüller 1608 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
All variants
Type: Feed Through · Color: Beige · Series: Z · Package: Box · Current - UL: 25 A · Voltage - UL: 600V · Current - IEC: 24 A · Voltage - IEC: 800V · Number of levels: 1 · Stripping length: 10mm · Terminal - width: 5.1mm · Termination style: Push In, Spring · Positions: 2 · Material - insulation: Thermoplastic, Wemid · Wire gauge or range - AWG: 12-30 AWG · Wire gauge or range - mm2: 0.5-4mm² · Material flammability rating: UL94 V-0

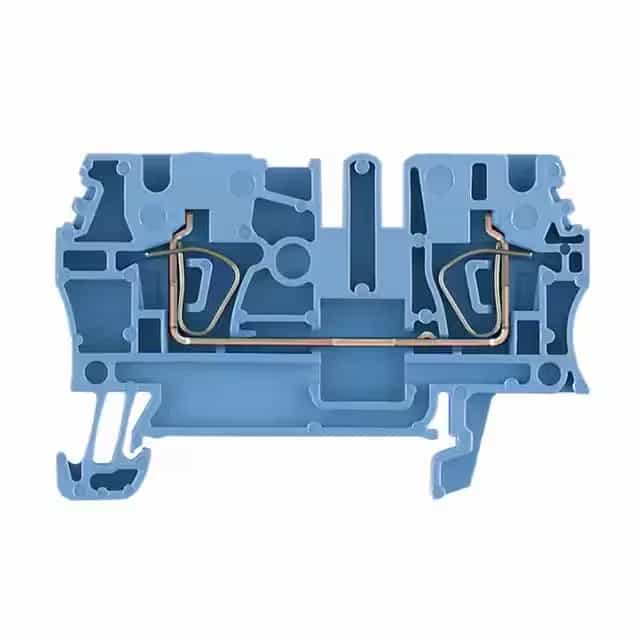

Type: Feed Through · Color: Blue · Series: Z · Package: Bulk · Current - UL: 25 A · Voltage - UL: 600V · Current - IEC: 24 A · Voltage - IEC: 800V · Number of levels: 1 · Stripping length: 10mm · Terminal - width: 5.1mm · Termination style: Push In, Spring · Positions: 2 · Material - insulation: Thermoplastic, Wemid · Wire gauge or range - AWG: 12-30 AWG · Wire gauge or range - mm2: 0.5-4mm² · Material flammability rating: UL94 V-0

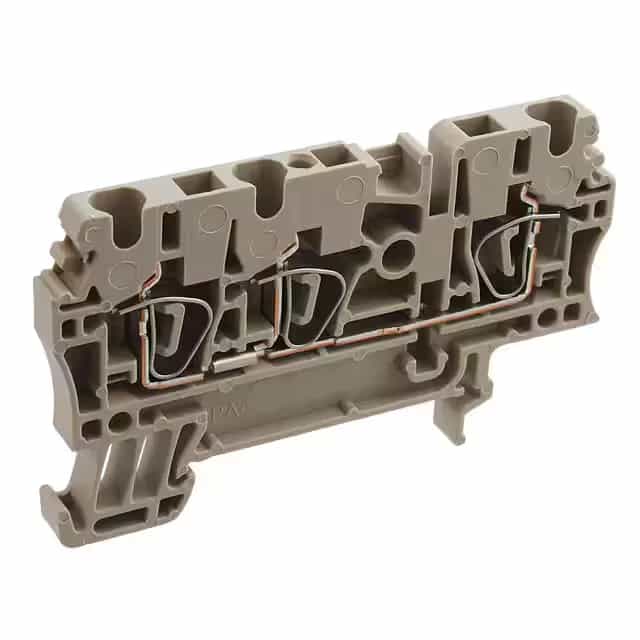

Type: Feed Through · Color: Beige · Series: Z · Package: Box · Current - UL: 25 A · Voltage - UL: 600V · Current - IEC: 24 A · Voltage - IEC: 800V · Number of levels: 1 · Stripping length: 10mm · Terminal - width: 5.1mm · Termination style: Push In, Spring · Positions: 3 · Material - insulation: Thermoplastic, Wemid · Wire gauge or range - AWG: 12-30 AWG · Wire gauge or range - mm2: 0.5-4mm² · Material flammability rating: UL94 V-0

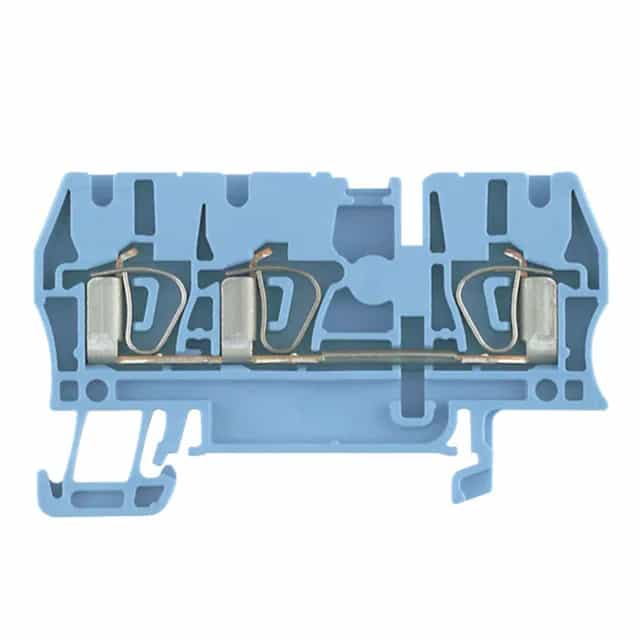

Type: Feed Through · Color: Blue · Series: Z · Package: Bulk · Current - UL: 25 A · Voltage - UL: 600V · Current - IEC: 24 A · Voltage - IEC: 800V · Number of levels: 1 · Stripping length: 10mm · Terminal - width: 5.1mm · Termination style: Push In, Spring · Positions: 3 · Material - insulation: Thermoplastic, Wemid · Wire gauge or range - AWG: 12-30 AWG · Wire gauge or range - mm2: 0.5-4mm² · Material flammability rating: UL94 V-0
Type: Feed Through · Color: Beige · Series: Z · Package: Box · Current - UL: 25 A · Voltage - UL: 600V · Current - IEC: 24 A · Voltage - IEC: 800V · Number of levels: 1 · Stripping length: 10mm · Terminal - width: 5.1mm · Termination style: Push In, Spring · Positions: 4 · Material - insulation: Thermoplastic, Wemid · Wire gauge or range - AWG: 12-30 AWG · Wire gauge or range - mm2: 0.5-4mm² · Material flammability rating: UL94 V-0

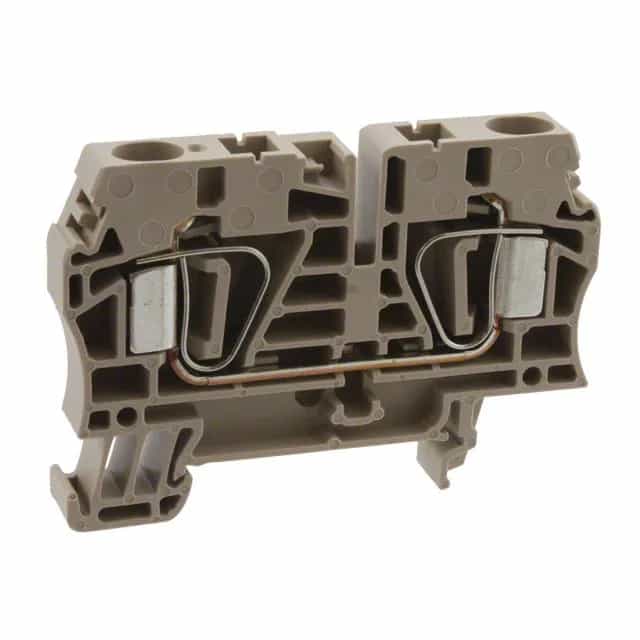

Type: Feed Through · Color: Beige · Series: Z · Package: Box · Current - UL: 50 A · Voltage - UL: 600V · Current - IEC: 41 A · Voltage - IEC: 800V · Number of levels: 1 · Stripping length: 13mm · Terminal - width: 8.1mm · Termination style: Push In, Spring · Positions: 2 · Material - insulation: Thermoplastic, Wemid · Wire gauge or range - AWG: 8-22 AWG · Wire gauge or range - mm2: 0.5-10mm² · Material flammability rating: UL94 V-0

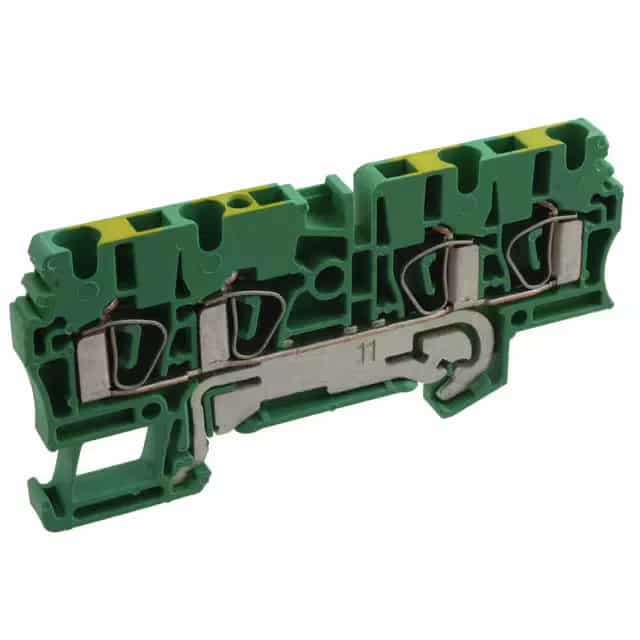

Type: Ground, Earth · Color: Green, Yellow · Series: Z · Package: Box · Number of levels: 1 · Stripping length: 10mm · Terminal - width: 5.1mm · Termination style: Push In, Spring · Positions: 4 · Material - insulation: Thermoplastic, Wemid · Wire gauge or range - AWG: 12-30 AWG · Wire gauge or range - mm2: 0.5-4mm² · Material flammability rating: UL94 V-0
Type: End Plate, Rail Type · Color: Beige · Series: Z · Package: Bulk · For use with (Related products): W and Z Series
Type: End Plate, Rail Type · Color: Blue · Series: Z · Package: Bulk · For use with (Related products): Z Series
Type: End Plate, Rail Type · Color: Beige · Series: Z · Package: Bulk · For use with (Related products): Z Series
Type: End Plate, Rail Type · Color: Blue · Series: Z · Package: Bulk · For use with (Related products): Z Series
Type: End Plate, Rail Type · Color: Orange · Series: Z · Package: Bulk · For use with (Related products): Z Series
Type: End Plate, Rail Type · Color: Beige · Series: Z · Package: Box · For use with (Related products): Z Series
Type: Terminal Block, Cross Connection · Color: Yellow · Pitch: 0.201\" (5.10mm) · Style: Flat Pins · Series: ZQV · Package: Box · Positions: 2 · For use with (Related products): I, P, W and Z Series
Type: Terminal Block, Cross Connection · Color: Yellow · Pitch: 0.201\" (5.10mm) · Style: Flat Pins · Series: ZQV · Package: Bulk · Positions: 3 · For use with (Related products): I, P, W and Z Series
Type: Terminal Block, Cross Connection · Color: Yellow · Pitch: 0.201\" (5.10mm) · Style: Flat Pins · Series: ZQV · Package: Bulk · Positions: 4 · For use with (Related products): I, P, W and Z Series
Type: Terminal Block, Cross Connection · Color: Yellow · Pitch: 0.201\" (5.10mm) · Style: Flat Pins · Series: ZQV · Package: Bulk · Positions: 5 · For use with (Related products): Z Series
Type: Terminal Block, Cross Connection · Color: Yellow · Pitch: 0.201\" (5.10mm) · Style: Flat Pins · Series: ZQV · Package: Bulk · Positions: 10 · For use with (Related products): I, P, W and Z Series
Type: Terminal Block, Cross Connection · Color: Yellow · Pitch: 0.240\" (6.10mm) · Style: Flat Pins · Series: ZQV · Package: Bulk · Positions: 2 · For use with (Related products): I and Z Series
Type: End Plate, Rail Type · Color: Orange · Series: Z · Package: Bulk · For use with (Related products): Z Series
