Weidmüller 1610 Series
8 variants · Weidmüller
About the Weidmüller Weidmüller 1610 Series series
The Weidmüller Weidmüller 1610 Series series groups 8 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common current - UL of 10 A, material flammability rating of UL94 V-0 and mounting type of Free Hanging (In-Line). Variants differ by color, current - IEC and housing material, so you can match the exact color your application requires using the selection guide below. All listed Weidmüller 1610 Series part numbers are active and orderable.
Select a variant by
- Color
- Black · Orange
- Current - IEC
- 17A · 21A
- Housing material
- Polybutylene Terephthalate (PBT) · Polybutylene Terephthalate (PBT), Glass Filled
- Insulation height
- 0.397\" (10.08mm) · 0.512\" (13.00mm)
- Pitch
- 0.138\" (3.50mm) · 0.200\" (5.08mm)
- Positions
- 2 · 3 · 5 · 6 · 8 · 9 · 10
- Positions per level
- 2 · 3 · 5 · 6 · 8 · 9 · 10
- Termination style
- Crimp · Screw - Clamping Yoke (Tension Sleeve)
Variant comparison
| Parameter | 1610200000 | 1610490000 | 1610500000 | 1610520000 | 1610530000 | 1610550000 |
|---|---|---|---|---|---|---|
| Color | Black | Orange | Orange | Orange | Orange | Orange |
| Current - IEC | 17A | 21A | 21A | 21A | 21A | 21A |
| Housing material | Polybutylene Terephthalate (PBT) | Polybutylene Terephthalate (PBT), Glass Filled | Polybutylene Terephthalate (PBT), Glass Filled | Polybutylene Terephthalate (PBT), Glass Filled | Polybutylene Terephthalate (PBT), Glass Filled | Polybutylene Terephthalate (PBT), Glass Filled |
| Insulation height | 0.512\" (13.00mm) | 0.397\" (10.08mm) | 0.397\" (10.08mm) | 0.397\" (10.08mm) | 0.397\" (10.08mm) | 0.397\" (10.08mm) |
| Pitch | 0.138\" (3.50mm) | 0.200\" (5.08mm) | 0.200\" (5.08mm) | 0.200\" (5.08mm) | 0.200\" (5.08mm) | 0.200\" (5.08mm) |
| Positions | 10 | 2 | 3 | 5 | 6 | 8 |
| Positions per level | 10 | 2 | 3 | 5 | 6 | 8 |
| Termination style | Screw - Clamping Yoke (Tension Sleeve) | Crimp | Crimp | Crimp | Crimp | Crimp |
Shared specifications
- Current - UL
- 10 A
- Material flammability rating
- UL94 V-0
- Mounting type
- Free Hanging (In-Line)
- Number of levels
- 1
- Operating temperature
- -50°C ~ 100°C
- Package
- Bulk
- Plug wire entry
- 180°
- Voltage - UL
- 300 V
Request a quote on any Weidmüller 1610 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the Weidmüller Weidmüller 1610 Series variants differ?
- Weidmüller 1610 Series part numbers differ by color, current - IEC, housing material and insulation height. Use the selection guide above to pick by color.
- How many Weidmüller Weidmüller 1610 Series part numbers are listed?
- 8 Weidmüller Weidmüller 1610 Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for Weidmüller Weidmüller 1610 Series?
- Request a quote (RFQ) for any Weidmüller 1610 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
All variants
Type: Plug, Female Sockets · Color: Black · Pitch: 0.138\" (3.50mm) · Series: Omnimate BL · Package: Bulk · Screw size: M2 · Current - UL: 10 A · Voltage - UL: 300 V · Current - IEC: 17A · Mounting type: Free Hanging (In-Line) · Voltage - IEC: 320 V · Torque - screw: 0.2-0.25 Nm (1.7-2.2 Lb-In) · Plug wire entry: 180° · Contact material: Copper Alloy · Housing material: Polybutylene Terephthalate (PBT) · Number of levels: 1 · Insulation height: 0.512\" (13.00mm) · Termination style: Screw - Clamping Yoke (Tension Sleeve) · Wire strip length: 6mm · Ingress protection: IP20 · Positions: 10 · Positions per level: 10 · Contact mating finish: Tin · Operating temperature: -50°C ~ 100°C · Wire gauge or range - AWG: 14-28 AWG · Wire gauge or range - mm2: 0.2-1.5mm² · Material flammability rating: UL94 V-0
Type: Plug Housing for Female Sockets · Color: Orange · Pitch: 0.200\" (5.08mm) · Series: Omnimate BL · Package: Bulk · Features: Retention Latches (Non-Wire Side) · Current - UL: 10 A · Voltage - UL: 300 V · Current - IEC: 21A · Mounting type: Free Hanging (In-Line) · Voltage - IEC: 400 V · Plug wire entry: 180° · Housing material: Polybutylene Terephthalate (PBT), Glass Filled · Number of levels: 1 · Insulation height: 0.397\" (10.08mm) · Termination style: Crimp · Positions: 2 · Positions per level: 2 · Operating temperature: -50°C ~ 100°C · Wire gauge or range - AWG: 14-26 AWG · Material flammability rating: UL94 V-0
Type: Plug Housing for Female Sockets · Color: Orange · Pitch: 0.200\" (5.08mm) · Series: Omnimate BL · Package: Bulk · Features: Retention Latches (Non-Wire Side) · Current - UL: 10 A · Voltage - UL: 300 V · Current - IEC: 21A · Mounting type: Free Hanging (In-Line) · Voltage - IEC: 400 V · Plug wire entry: 180° · Housing material: Polybutylene Terephthalate (PBT), Glass Filled · Number of levels: 1 · Insulation height: 0.397\" (10.08mm) · Termination style: Crimp · Positions: 3 · Positions per level: 3 · Operating temperature: -50°C ~ 100°C · Wire gauge or range - AWG: 14-26 AWG · Material flammability rating: UL94 V-0

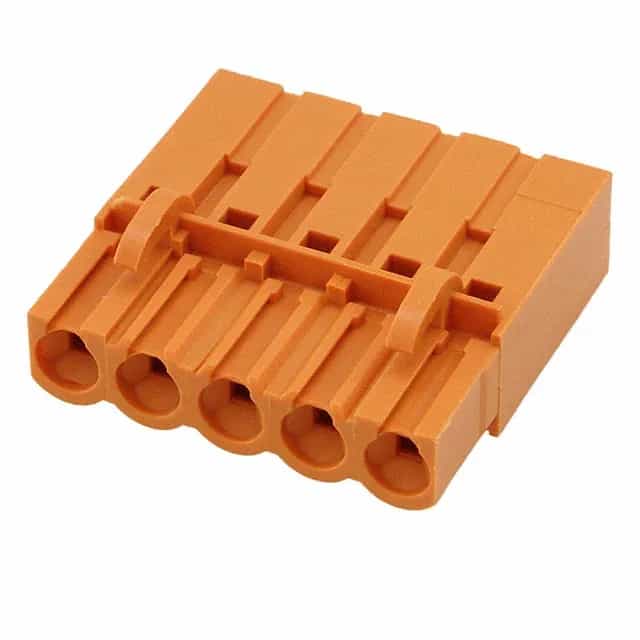

Type: Plug Housing for Female Sockets · Color: Orange · Pitch: 0.200\" (5.08mm) · Series: Omnimate BL · Package: Bulk · Features: Retention Latches (Non-Wire Side) · Current - UL: 10 A · Voltage - UL: 300 V · Current - IEC: 21A · Mounting type: Free Hanging (In-Line) · Voltage - IEC: 400 V · Plug wire entry: 180° · Housing material: Polybutylene Terephthalate (PBT), Glass Filled · Number of levels: 1 · Insulation height: 0.397\" (10.08mm) · Termination style: Crimp · Positions: 5 · Positions per level: 5 · Operating temperature: -50°C ~ 100°C · Wire gauge or range - AWG: 14-26 AWG · Material flammability rating: UL94 V-0
Type: Plug Housing for Female Sockets · Color: Orange · Pitch: 0.200\" (5.08mm) · Series: Omnimate BL · Package: Bulk · Features: Retention Latches (Non-Wire Side) · Current - UL: 10 A · Voltage - UL: 300 V · Current - IEC: 21A · Mounting type: Free Hanging (In-Line) · Voltage - IEC: 400 V · Plug wire entry: 180° · Housing material: Polybutylene Terephthalate (PBT), Glass Filled · Number of levels: 1 · Insulation height: 0.397\" (10.08mm) · Termination style: Crimp · Positions: 6 · Positions per level: 6 · Operating temperature: -50°C ~ 100°C · Wire gauge or range - AWG: 14-26 AWG · Material flammability rating: UL94 V-0
Type: Plug Housing for Female Sockets · Color: Orange · Pitch: 0.200\" (5.08mm) · Series: Omnimate BL · Package: Bulk · Features: Retention Latches (Non-Wire Side) · Current - UL: 10 A · Voltage - UL: 300 V · Current - IEC: 21A · Mounting type: Free Hanging (In-Line) · Voltage - IEC: 400 V · Plug wire entry: 180° · Housing material: Polybutylene Terephthalate (PBT), Glass Filled · Number of levels: 1 · Insulation height: 0.397\" (10.08mm) · Termination style: Crimp · Positions: 8 · Positions per level: 8 · Operating temperature: -50°C ~ 100°C · Wire gauge or range - AWG: 14-26 AWG · Material flammability rating: UL94 V-0

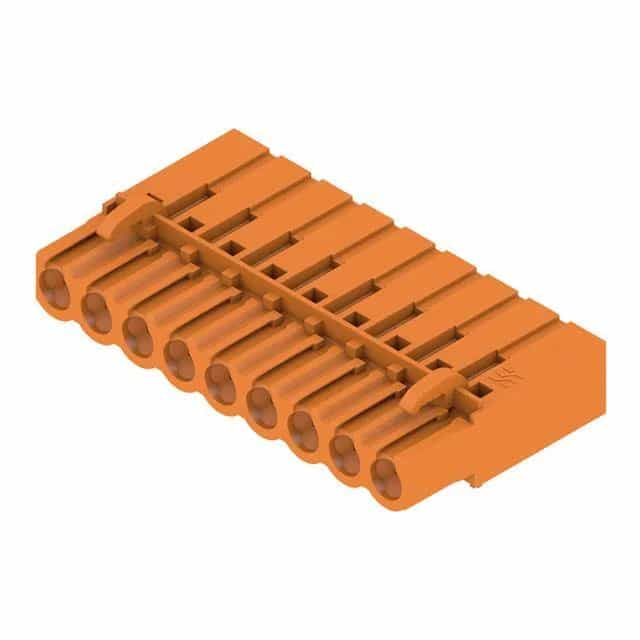

Type: Plug Housing for Female Sockets · Color: Orange · Pitch: 0.200\" (5.08mm) · Series: Omnimate BL · Package: Bulk · Features: Retention Latches (Non-Wire Side) · Current - UL: 10 A · Voltage - UL: 300 V · Current - IEC: 21A · Mounting type: Free Hanging (In-Line) · Voltage - IEC: 400 V · Plug wire entry: 180° · Housing material: Polybutylene Terephthalate (PBT), Glass Filled · Number of levels: 1 · Insulation height: 0.397\" (10.08mm) · Termination style: Crimp · Positions: 9 · Positions per level: 9 · Operating temperature: -50°C ~ 100°C · Wire gauge or range - AWG: 14-26 AWG · Material flammability rating: UL94 V-0
Type: Plug Housing for Female Sockets · Color: Orange · Pitch: 0.200\" (5.08mm) · Series: Omnimate BL · Package: Bulk · Features: Retention Latches (Non-Wire Side) · Current - UL: 10 A · Voltage - UL: 300 V · Current - IEC: 21A · Mounting type: Free Hanging (In-Line) · Voltage - IEC: 400 V · Plug wire entry: 180° · Housing material: Polybutylene Terephthalate (PBT), Glass Filled · Number of levels: 1 · Insulation height: 0.397\" (10.08mm) · Termination style: Crimp · Positions: 10 · Positions per level: 10 · Operating temperature: -50°C ~ 100°C · Wire gauge or range - AWG: 14-26 AWG · Material flammability rating: UL94 V-0
