Weidmüller 1614 Series
7 variants · Weidmüller
About the Weidmüller Weidmüller 1614 Series series
The Weidmüller Weidmüller 1614 Series series groups 7 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common color of Black, contact material of Copper Alloy and contact mating finish of Tin. Variants differ by current - IEC, insulation height and mounting type, so you can match the exact current - IEC your application requires using the selection guide below. All listed Weidmüller 1614 Series part numbers are active and orderable.
Select a variant by
- Current - IEC
- 12A · 17A
- Insulation height
- 0.295\" (7.50mm) · 0.437\" (11.10mm) · 0.512\" (13.00mm)
- Mounting type
- Free Hanging (In-Line) · Through Hole
- Operating temperature
- -50°C ~ 100°C · -20°C ~ 100°C
- Positions
- 2 · 5 · 8 · 16
- Positions per level
- 2 · 5 · 8 · 16
- Termination style
- Screw - Clamping Yoke (Tension Sleeve) · Solder
Variant comparison
| Parameter | 1614090000 | 1614160000 | 1614170000 | 1614180000 | 1614190000 | 1614240000 |
|---|---|---|---|---|---|---|
| Current - IEC | 17A | 12A | 12A | 12A | 12A | 12A |
| Insulation height | 0.512\" (13.00mm) | 0.295\" (7.50mm) | 0.295\" (7.50mm) | 0.295\" (7.50mm) | 0.295\" (7.50mm) | 0.437\" (11.10mm) |
| Mounting type | Free Hanging (In-Line) | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Operating temperature | -50°C ~ 100°C | -20°C ~ 100°C | -20°C ~ 100°C | -20°C ~ 100°C | -20°C ~ 100°C | -20°C ~ 100°C |
| Positions | 5 | 2 | 5 | 8 | 16 | 2 |
| Positions per level | 5 | 2 | 5 | 8 | 16 | 2 |
| Termination style | Screw - Clamping Yoke (Tension Sleeve) | Solder | Solder | Solder | Solder | Solder |
Shared specifications
- Color
- Black
- Contact material
- Copper Alloy
- Contact mating finish
- Tin
- Current - UL
- 10 A
- Housing material
- Polybutylene Terephthalate (PBT)
- Material flammability rating
- UL94 V-0
- Number of levels
- 1
- Package
- Bulk
- Pitch
- 0.138\" (3.50mm)
- Voltage - UL
- 300 V
Request a quote on any Weidmüller 1614 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the Weidmüller Weidmüller 1614 Series variants differ?
- Weidmüller 1614 Series part numbers differ by current - IEC, insulation height, mounting type and operating temperature. Use the selection guide above to pick by current - IEC.
- How many Weidmüller Weidmüller 1614 Series part numbers are listed?
- 7 Weidmüller Weidmüller 1614 Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for Weidmüller Weidmüller 1614 Series?
- Request a quote (RFQ) for any Weidmüller 1614 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
All variants

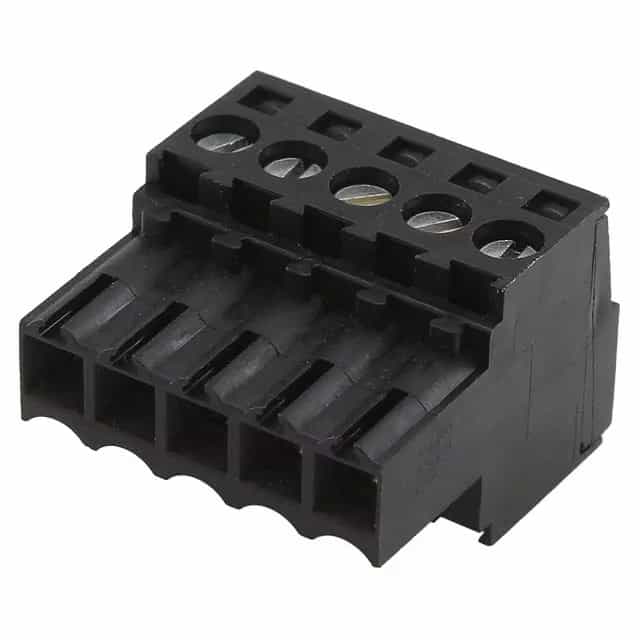

Type: Plug, Female Sockets · Color: Black · Pitch: 0.138\" (3.50mm) · Series: Omnimate BL · Package: Bulk · Screw size: M2 · Current - UL: 10 A · Voltage - UL: 300 V · Current - IEC: 17A · Mounting type: Free Hanging (In-Line) · Voltage - IEC: 320 V · Torque - screw: 0.2-0.25 Nm (1.7-2.2 Lb-In) · Plug wire entry: 180° · Contact material: Copper Alloy · Housing material: Polybutylene Terephthalate (PBT) · Number of levels: 1 · Insulation height: 0.512\" (13.00mm) · Termination style: Screw - Clamping Yoke (Tension Sleeve) · Wire strip length: 6mm · Ingress protection: IP20 · Positions: 5 · Positions per level: 5 · Contact mating finish: Tin · Operating temperature: -50°C ~ 100°C · Wire gauge or range - AWG: 14-28 AWG · Wire gauge or range - mm2: 0.2-1.5mm² · Material flammability rating: UL94 V-0

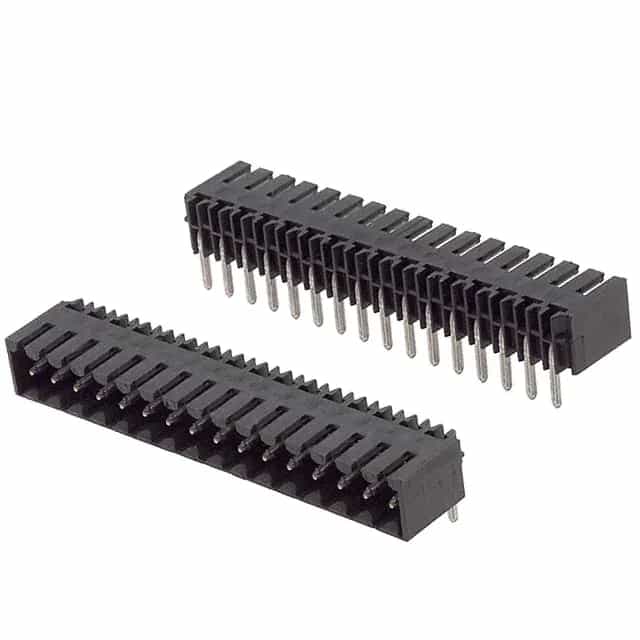

Type: Header, Male Pins, Shrouded (4 Side) · Color: Black · Pitch: 0.138\" (3.50mm) · Series: Omnimate SL · Package: Bulk · Current - UL: 10 A · Voltage - UL: 300 V · Current - IEC: 12A · Mounting type: Through Hole · Voltage - IEC: 125 V · Contact material: Copper Alloy · Housing material: Polybutylene Terephthalate (PBT) · Number of levels: 1 · Insulation height: 0.295\" (7.50mm) · Termination style: Solder · Header orientation: 90°, Right Angle · Contact tail length: 0.177\" (4.50mm) · Positions: 2 · Positions per level: 2 · Contact mating finish: Tin · Operating temperature: -20°C ~ 100°C · Material flammability rating: UL94 V-0
Type: Header, Male Pins, Shrouded (4 Side) · Color: Black · Pitch: 0.138\" (3.50mm) · Series: Omnimate SL · Package: Bulk · Current - UL: 10 A · Voltage - UL: 300 V · Current - IEC: 12A · Mounting type: Through Hole · Voltage - IEC: 125 V · Contact material: Copper Alloy · Housing material: Polybutylene Terephthalate (PBT) · Number of levels: 1 · Insulation height: 0.295\" (7.50mm) · Termination style: Solder · Header orientation: 90°, Right Angle · Contact tail length: 0.177\" (4.50mm) · Positions: 5 · Positions per level: 5 · Contact mating finish: Tin · Operating temperature: -20°C ~ 100°C · Material flammability rating: UL94 V-0
Type: Header, Male Pins, Shrouded (4 Side) · Color: Black · Pitch: 0.138\" (3.50mm) · Series: Omnimate SL · Package: Bulk · Current - UL: 10 A · Voltage - UL: 300 V · Current - IEC: 12A · Mounting type: Through Hole · Voltage - IEC: 125 V · Contact material: Copper Alloy · Housing material: Polybutylene Terephthalate (PBT) · Number of levels: 1 · Insulation height: 0.295\" (7.50mm) · Termination style: Solder · Header orientation: 90°, Right Angle · Contact tail length: 0.177\" (4.50mm) · Positions: 8 · Positions per level: 8 · Contact mating finish: Tin · Operating temperature: -20°C ~ 100°C · Material flammability rating: UL94 V-0
Type: Header, Male Pins, Shrouded (4 Side) · Color: Black · Pitch: 0.138\" (3.50mm) · Series: Omnimate SL · Package: Bulk · Current - UL: 10 A · Voltage - UL: 300 V · Current - IEC: 12A · Mounting type: Through Hole · Voltage - IEC: 125 V · Contact material: Copper Alloy · Housing material: Polybutylene Terephthalate (PBT) · Number of levels: 1 · Insulation height: 0.295\" (7.50mm) · Termination style: Solder · Header orientation: 90°, Right Angle · Contact tail length: 0.177\" (4.50mm) · Positions: 16 · Positions per level: 16 · Contact mating finish: Tin · Operating temperature: -20°C ~ 100°C · Material flammability rating: UL94 V-0
Type: Header, Male Pins, Shrouded (4 Side) · Color: Black · Pitch: 0.138\" (3.50mm) · Series: Omnimate SL · Package: Bulk · Current - UL: 10 A · Voltage - UL: 300 V · Current - IEC: 12A · Mounting type: Through Hole · Voltage - IEC: 125 V · Contact material: Copper Alloy · Housing material: Polybutylene Terephthalate (PBT) · Number of levels: 1 · Insulation height: 0.437\" (11.10mm) · Termination style: Solder · Header orientation: Vertical · Contact tail length: 0.177\" (4.50mm) · Positions: 2 · Positions per level: 2 · Contact mating finish: Tin · Operating temperature: -20°C ~ 100°C · Material flammability rating: UL94 V-0
Type: Header, Male Pins, Shrouded (4 Side) · Color: Black · Pitch: 0.138\" (3.50mm) · Series: Omnimate SL · Package: Bulk · Current - UL: 10 A · Voltage - UL: 300 V · Current - IEC: 12A · Mounting type: Through Hole · Voltage - IEC: 125 V · Contact material: Copper Alloy · Housing material: Polybutylene Terephthalate (PBT) · Number of levels: 1 · Insulation height: 0.437\" (11.10mm) · Termination style: Solder · Header orientation: Vertical · Contact tail length: 0.177\" (4.50mm) · Positions: 8 · Positions per level: 8 · Contact mating finish: Tin · Operating temperature: -20°C ~ 100°C · Material flammability rating: UL94 V-0
