Weidmüller 1615 Series
12 variants · Weidmüller
About the Weidmüller Weidmüller 1615 Series series
The Weidmüller Weidmüller 1615 Series series groups 12 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common package of Bulk. Variants differ by color, type and current - IEC, so you can match the exact color your application requires using the selection guide below. All listed Weidmüller 1615 Series part numbers are active and orderable.
Select a variant by
- Color
- Beige · Black
- Type
- End Plate, Rail Type · Header, Male Pins, Shrouded (2 Side) · Header, Male Pins, Shrouded (4 Side) · Plug, Female Sockets
- Current - IEC
- 12A · 17A
- Insulation height
- 0.295\" (7.50mm) · 0.512\" (13.00mm)
- Mounting type
- Free Hanging (In-Line) · Through Hole
- Operating temperature
- -50°C ~ 100°C · -20°C ~ 100°C
- Positions
- 2 · 3 · 4 · 5 · 9 · 12 · 16
Variant comparison
| Parameter | 1615670000 | 1615680000 | 1615730000 | 1615770000 | 1615780000 | 1615800000 |
|---|---|---|---|---|---|---|
| Color | Black | Black | Black | Black | Black | Black |
| Type | Plug, Female Sockets | Plug, Female Sockets | Plug, Female Sockets | Plug, Female Sockets | Plug, Female Sockets | Plug, Female Sockets |
| Current - IEC | 17A | 17A | 17A | 17A | 17A | 17A |
| Insulation height | 0.512\" (13.00mm) | 0.512\" (13.00mm) | 0.512\" (13.00mm) | 0.512\" (13.00mm) | 0.512\" (13.00mm) | 0.512\" (13.00mm) |
| Mounting type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Operating temperature | -50°C ~ 100°C | -50°C ~ 100°C | -50°C ~ 100°C | -50°C ~ 100°C | -50°C ~ 100°C | -50°C ~ 100°C |
| Positions | 2 | 3 | 12 | 16 | 2 | 4 |
Shared specifications
- Package
- Bulk
Request a quote on any Weidmüller 1615 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the Weidmüller Weidmüller 1615 Series variants differ?
- Weidmüller 1615 Series part numbers differ by color, type, current - IEC and insulation height. Use the selection guide above to pick by color.
- How many Weidmüller Weidmüller 1615 Series part numbers are listed?
- 12 Weidmüller Weidmüller 1615 Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for Weidmüller Weidmüller 1615 Series?
- Request a quote (RFQ) for any Weidmüller 1615 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
All variants
Type: Plug, Female Sockets · Color: Black · Pitch: 0.138\" (3.50mm) · Series: Omnimate BL · Package: Bulk · Screw size: M2 · Current - UL: 10 A · Voltage - UL: 300 V · Current - IEC: 17A · Mounting type: Free Hanging (In-Line) · Voltage - IEC: 320 V · Torque - screw: 0.2-0.25 Nm (1.7-2.2 Lb-In) · Plug wire entry: 180° · Contact material: Copper Alloy · Housing material: Polybutylene Terephthalate (PBT) · Number of levels: 1 · Insulation height: 0.512\" (13.00mm) · Termination style: Screw - Clamping Yoke (Tension Sleeve) · Wire strip length: 6mm · Ingress protection: IP20 · Positions: 2 · Positions per level: 2 · Contact mating finish: Tin · Operating temperature: -50°C ~ 100°C · Wire gauge or range - AWG: 14-28 AWG · Wire gauge or range - mm2: 0.2-1.5mm² · Material flammability rating: UL94 V-0
Type: Plug, Female Sockets · Color: Black · Pitch: 0.138\" (3.50mm) · Series: Omnimate BL · Package: Bulk · Screw size: M2 · Current - UL: 10 A · Voltage - UL: 300 V · Current - IEC: 17A · Mounting type: Free Hanging (In-Line) · Voltage - IEC: 320 V · Torque - screw: 0.2-0.25 Nm (1.7-2.2 Lb-In) · Plug wire entry: 180° · Contact material: Copper Alloy · Housing material: Polybutylene Terephthalate (PBT) · Number of levels: 1 · Insulation height: 0.512\" (13.00mm) · Termination style: Screw - Clamping Yoke (Tension Sleeve) · Wire strip length: 6mm · Ingress protection: IP20 · Positions: 3 · Positions per level: 3 · Contact mating finish: Tin · Operating temperature: -50°C ~ 100°C · Wire gauge or range - AWG: 14-28 AWG · Wire gauge or range - mm2: 0.2-1.5mm² · Material flammability rating: UL94 V-0
Type: Plug, Female Sockets · Color: Black · Pitch: 0.138\" (3.50mm) · Series: Omnimate BL · Package: Bulk · Screw size: M2 · Current - UL: 10 A · Voltage - UL: 300 V · Current - IEC: 17A · Mounting type: Free Hanging (In-Line) · Voltage - IEC: 320 V · Torque - screw: 0.2-0.25 Nm (1.7-2.2 Lb-In) · Plug wire entry: 180° · Contact material: Copper Alloy · Housing material: Polybutylene Terephthalate (PBT) · Number of levels: 1 · Insulation height: 0.512\" (13.00mm) · Termination style: Screw - Clamping Yoke (Tension Sleeve) · Wire strip length: 6mm · Ingress protection: IP20 · Positions: 12 · Positions per level: 12 · Contact mating finish: Tin · Operating temperature: -50°C ~ 100°C · Wire gauge or range - AWG: 14-28 AWG · Wire gauge or range - mm2: 0.2-1.5mm² · Material flammability rating: UL94 V-0
Type: Plug, Female Sockets · Color: Black · Pitch: 0.138\" (3.50mm) · Series: Omnimate BL · Package: Bulk · Screw size: M2 · Current - UL: 10 A · Voltage - UL: 300 V · Current - IEC: 17A · Mounting type: Free Hanging (In-Line) · Voltage - IEC: 320 V · Torque - screw: 0.2-0.25 Nm (1.7-2.2 Lb-In) · Plug wire entry: 180° · Contact material: Copper Alloy · Housing material: Polybutylene Terephthalate (PBT) · Number of levels: 1 · Insulation height: 0.512\" (13.00mm) · Termination style: Screw - Clamping Yoke (Tension Sleeve) · Wire strip length: 6mm · Ingress protection: IP20 · Positions: 16 · Positions per level: 16 · Contact mating finish: Tin · Operating temperature: -50°C ~ 100°C · Wire gauge or range - AWG: 14-28 AWG · Wire gauge or range - mm2: 0.2-1.5mm² · Material flammability rating: UL94 V-0
Type: Plug, Female Sockets · Color: Black · Pitch: 0.138\" (3.50mm) · Series: Omnimate BL · Package: Bulk · Features: Mating Flange · Screw size: M2 · Current - UL: 10 A · Voltage - UL: 300 V · Current - IEC: 17A · Mounting type: Free Hanging (In-Line) · Voltage - IEC: 320 V · Torque - screw: 0.2-0.25 Nm (1.7-2.2 Lb-In) · Plug wire entry: 180° · Contact material: Copper Alloy · Housing material: Polybutylene Terephthalate (PBT) · Number of levels: 1 · Insulation height: 0.512\" (13.00mm) · Termination style: Screw - Clamping Yoke (Tension Sleeve) · Wire strip length: 6mm · Ingress protection: IP20 · Positions: 2 · Positions per level: 2 · Contact mating finish: Tin · Operating temperature: -50°C ~ 100°C · Wire gauge or range - AWG: 14-28 AWG · Wire gauge or range - mm2: 0.2-1.5mm² · Material flammability rating: UL94 V-0
Type: Plug, Female Sockets · Color: Black · Pitch: 0.138\" (3.50mm) · Series: Omnimate BL · Package: Bulk · Features: Mating Flange · Screw size: M2 · Current - UL: 10 A · Voltage - UL: 300 V · Current - IEC: 17A · Mounting type: Free Hanging (In-Line) · Voltage - IEC: 320 V · Torque - screw: 0.2-0.25 Nm (1.7-2.2 Lb-In) · Plug wire entry: 180° · Contact material: Copper Alloy · Housing material: Polybutylene Terephthalate (PBT) · Number of levels: 1 · Insulation height: 0.512\" (13.00mm) · Termination style: Screw - Clamping Yoke (Tension Sleeve) · Wire strip length: 6mm · Ingress protection: IP20 · Positions: 4 · Positions per level: 4 · Contact mating finish: Tin · Operating temperature: -50°C ~ 100°C · Wire gauge or range - AWG: 14-28 AWG · Wire gauge or range - mm2: 0.2-1.5mm² · Material flammability rating: UL94 V-0
Type: End Plate, Rail Type · Color: Beige · Series: W · Package: Bulk · For use with (Related products): W Series

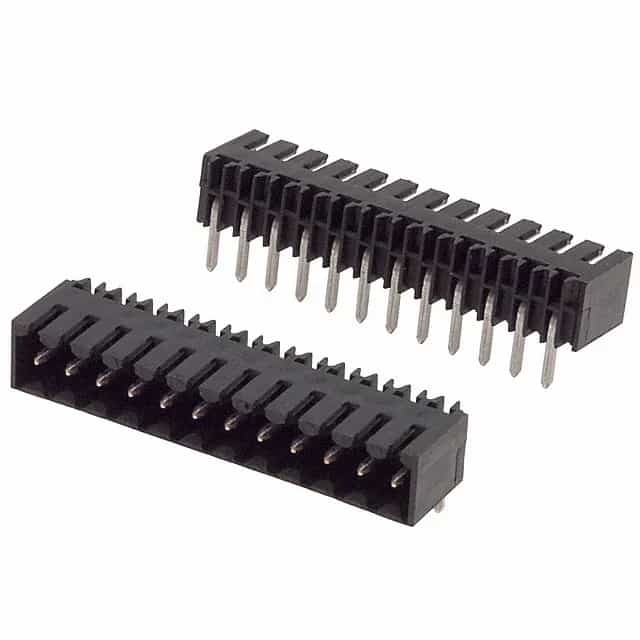

Type: Header, Male Pins, Shrouded (2 Side) · Color: Black · Pitch: 0.138\" (3.50mm) · Series: Omnimate SL · Package: Bulk · Current - UL: 10 A · Voltage - UL: 300 V · Current - IEC: 12A · Mounting type: Through Hole · Voltage - IEC: 125 V · Contact material: Copper Alloy · Housing material: Polybutylene Terephthalate (PBT) · Number of levels: 1 · Insulation height: 0.295\" (7.50mm) · Termination style: Solder · Header orientation: 90°, Right Angle · Contact tail length: 0.177\" (4.50mm) · Positions: 4 · Positions per level: 4 · Contact mating finish: Tin · Operating temperature: -20°C ~ 100°C · Material flammability rating: UL94 V-0
Type: Header, Male Pins, Shrouded (4 Side) · Color: Black · Pitch: 0.138\" (3.50mm) · Series: Omnimate SL · Package: Bulk · Current - UL: 10 A · Voltage - UL: 300 V · Current - IEC: 12A · Mounting type: Through Hole · Voltage - IEC: 125 V · Contact material: Copper Alloy · Housing material: Polybutylene Terephthalate (PBT) · Number of levels: 1 · Insulation height: 0.295\" (7.50mm) · Termination style: Solder · Header orientation: 90°, Right Angle · Contact tail length: 0.177\" (4.50mm) · Positions: 9 · Positions per level: 9 · Contact mating finish: Tin · Operating temperature: -20°C ~ 100°C · Material flammability rating: UL94 V-0
Type: Header, Male Pins, Shrouded (4 Side) · Color: Black · Pitch: 0.138\" (3.50mm) · Series: Omnimate SL · Package: Bulk · Current - UL: 10 A · Voltage - UL: 300 V · Current - IEC: 12A · Mounting type: Through Hole · Voltage - IEC: 125 V · Contact material: Copper Alloy · Housing material: Polybutylene Terephthalate (PBT) · Number of levels: 1 · Insulation height: 0.295\" (7.50mm) · Termination style: Solder · Header orientation: 90°, Right Angle · Contact tail length: 0.177\" (4.50mm) · Positions: 12 · Positions per level: 12 · Contact mating finish: Tin · Operating temperature: -20°C ~ 100°C · Material flammability rating: UL94 V-0
Type: Header, Male Pins, Shrouded (4 Side) · Color: Black · Pitch: 0.138\" (3.50mm) · Series: Omnimate SL · Package: Bulk · Features: Mating and Mounting Flange · Current - UL: 10 A · Voltage - UL: 300 V · Current - IEC: 12A · Mounting type: Through Hole · Voltage - IEC: 125 V · Contact material: Copper Alloy · Housing material: Polybutylene Terephthalate (PBT) · Number of levels: 1 · Insulation height: 0.295\" (7.50mm) · Termination style: Solder · Header orientation: 90°, Right Angle · Contact tail length: 0.177\" (4.50mm) · Positions: 4 · Positions per level: 4 · Contact mating finish: Tin · Operating temperature: -20°C ~ 100°C · Material flammability rating: UL94 V-0
Type: Header, Male Pins, Shrouded (4 Side) · Color: Black · Pitch: 0.138\" (3.50mm) · Series: Omnimate SL · Package: Bulk · Features: Mating and Mounting Flange · Current - UL: 10 A · Voltage - UL: 300 V · Current - IEC: 12A · Mounting type: Through Hole · Voltage - IEC: 125 V · Contact material: Copper Alloy · Housing material: Polybutylene Terephthalate (PBT) · Number of levels: 1 · Insulation height: 0.295\" (7.50mm) · Termination style: Solder · Header orientation: 90°, Right Angle · Contact tail length: 0.177\" (4.50mm) · Positions: 5 · Positions per level: 5 · Contact mating finish: Tin · Operating temperature: -20°C ~ 100°C · Material flammability rating: UL94 V-0
