How do the 3M 929667 Series variants differ?

3M 929667 Series part numbers differ by contact length - post, insulation material and positions. Use the selection guide above to pick by contact length - post.

How many 3M 929667 Series part numbers are listed?

7 3M 929667 Series part numbers are listed, each with specifications and a datasheet where available.

3M 929667 Series

7 variants · 3M

About the 3M 929667 Series

The 3M 929667 Series series groups 7 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common connector type of Header, contact finish - mating of Gold and contact finish - post of Gold. Variants differ by contact length - post, insulation material and positions, so you can match the exact contact length - post your application requires using the selection guide below. All listed 3M 929667 Series part numbers are active and orderable.

Select a variant by

Contact length - post: 0.145\" (3.68mm) · 0.405\" (10.29mm)
Insulation material: Polybutylene Terephthalate (PBT), Polyester, Glass Filled · Polycyclohexylenedimethylene Terephthalate (PCT)
Positions: 4 · 6 · 8 · 12 · 14 · 72

Shared specifications

Connector type: Header
Contact finish - mating: Gold
Contact finish - post: Gold
Contact finish thickness - mating: 10.0µin (0.25µm)
Contact finish thickness - post: 10.0µin (0.25µm)
Contact length - mating: 0.235\" (5.97mm)
Contact material: Copper Alloy
Contact shape: Square
Current rating: 2.5A
Fastening type: Push-Pull
Gender: Male Pin
Insulation color: Black

Variant comparison

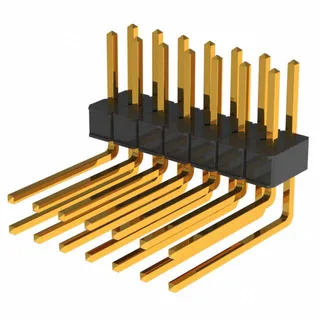

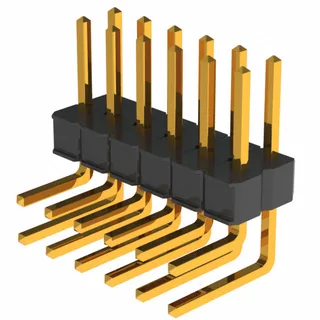

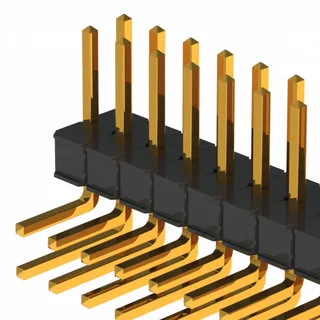

Parameter	929667-02-04-I	929667-02-07-I	929667-04-02-I	929667-04-03-I	929667-04-06-I	929667-04-36-EU
Contact length - post	0.405\" (10.29mm)	0.405\" (10.29mm)	0.145\" (3.68mm)	0.145\" (3.68mm)	0.145\" (3.68mm)	0.145\" (3.68mm)
Insulation material	Polybutylene Terephthalate (PBT), Polyester, Glass Filled	Polybutylene Terephthalate (PBT), Polyester, Glass Filled	Polybutylene Terephthalate (PBT), Polyester, Glass Filled	Polybutylene Terephthalate (PBT), Polyester, Glass Filled	Polybutylene Terephthalate (PBT), Polyester, Glass Filled	Polycyclohexylenedimethylene Terephthalate (PCT)
Positions	8	14	4	6	12	72

Request a quote on any 3M 929667 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.

Frequently asked questions

How do the 3M 929667 Series variants differ?: 3M 929667 Series part numbers differ by contact length - post, insulation material and positions. Use the selection guide above to pick by contact length - post.
How many 3M 929667 Series part numbers are listed?: 7 3M 929667 Series part numbers are listed, each with specifications and a datasheet where available.
How do I get pricing and lead time for 3M 929667 Series?: Request a quote (RFQ) for any 3M 929667 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
